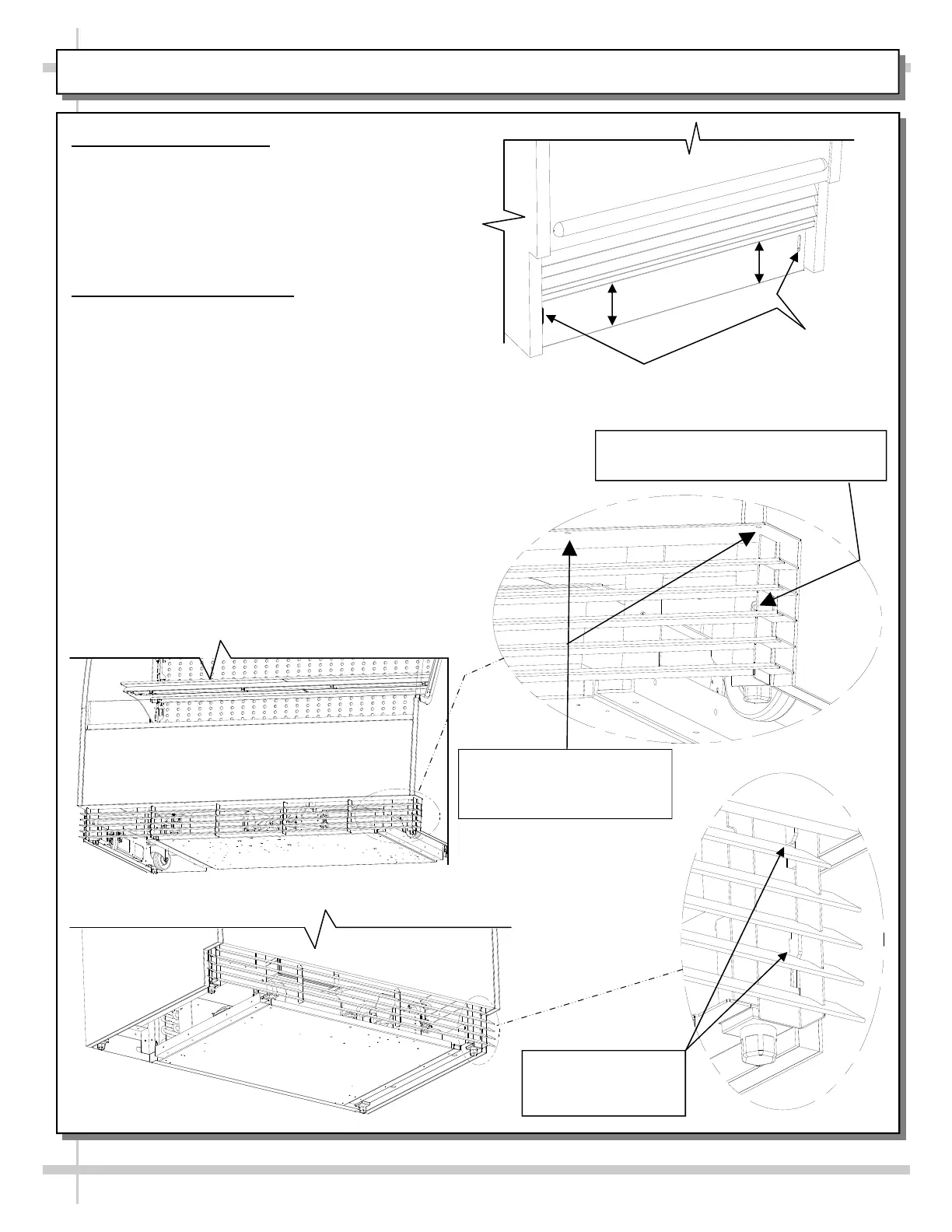

ADJUSTING TOE-KICK / REMOVING FRONT GRILLE
1. Adjusting Toe-Kick
Model HMO2653R
See illustration at top-right.
Loosen adjustment screws located on toe-kick.
Adjust Front Toe-Kick up or down.
Tighten Adjustment Screws.
2. Removing Front Grille
>> Grille Removal (With Screws)
Remove front grille retainer screws (both
horizontal and vertical). See illustration at
mid-right.
Front Grille will fall forward and can be lifted up
and away from case.
Replace Front Grille in reverse order it was
removed from case.
Tighten retainer screws.
>> Grille Removal (Without Screws)
Front grille is held in place with retaining hooks.
Simply lift front grille up and off case.
No screws are required for this particular grille.
See illustration at lower-right.
Front Grille Horizontal Retainer Screws
(One at Each End of Case)
Location of Front
Toe-Kick
Adjustment
Screws
F
ront
T
o
e-K
i
c
k
Front Grille Vertical Retainer
Screws (Along Entire
Underside of Front Panel)
Front Grille Retaining
Hooks (At Each End
of Grille)
