MAINTENANCE FUNDAMENTALS: UPPER SECTION AIR DUCT / HONEYCOMB AIR DIFFUSERS

NOTE: SERVICE TO BE PERFORMED BY TRAINED

SERVICE PROVIDERS ONLY.

Preventive maintenance should be performed every

90 days (unless conditions warrant a more frequent

replacement cycle).

Air Duct - Upper Section (see illustration at top-right)

 Depending upon model, Upper Section Air Duct may

be removable for cleaning. If so, simply lift Air Duct

up and out of chamber to access area to clean.

 If Upper Section Air Duct is not removable from case,

Honeycomb removal will allow access to area.

 Clean with brush or vacuum with brush attachment.

 Wipe down with moist cloth.

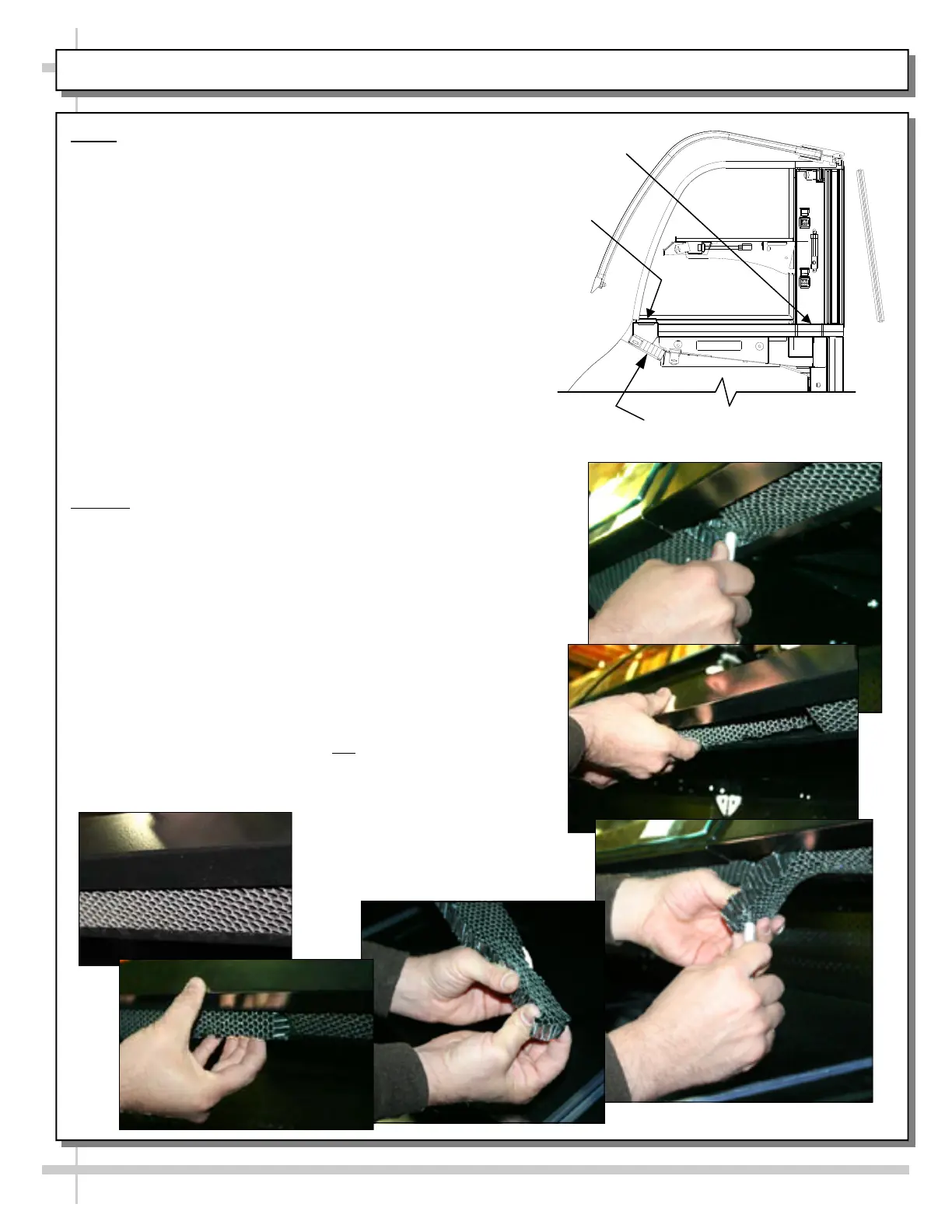

Honeycomb Air Diffuser Removal

A. Wedge non-metallic device of suitable strength (such

as a ballpoint pen) between honeycomb and end panel.

Caution

! Use care not to dislodge the heating wire (that

prevents condensation on the lamp assembly).

B. Apply pressure to collapse the honeycomb to allow it

to be pulled out of honeycomb retainer.

C. Pry downward and away from honeycomb retainer.

Clean honeycomb with warm water and soap solution.

Submerse if necessary. Use brush to dislodge stubborn

or sticky residue. Dry by using vacuum’s ‘blow mode’.

Honeycomb Air Diffuser Installation

D. Squeeze honeycomb into the honeycomb retainer.

E. Carefully slide honeycomb into place.

F. Adjust honeycomb so that it fits flat

against retainer.

It must not be wavy or out of position.

Honeycomb Air Diffuser

Air Duct

Upper

Section

Air Diffuser
