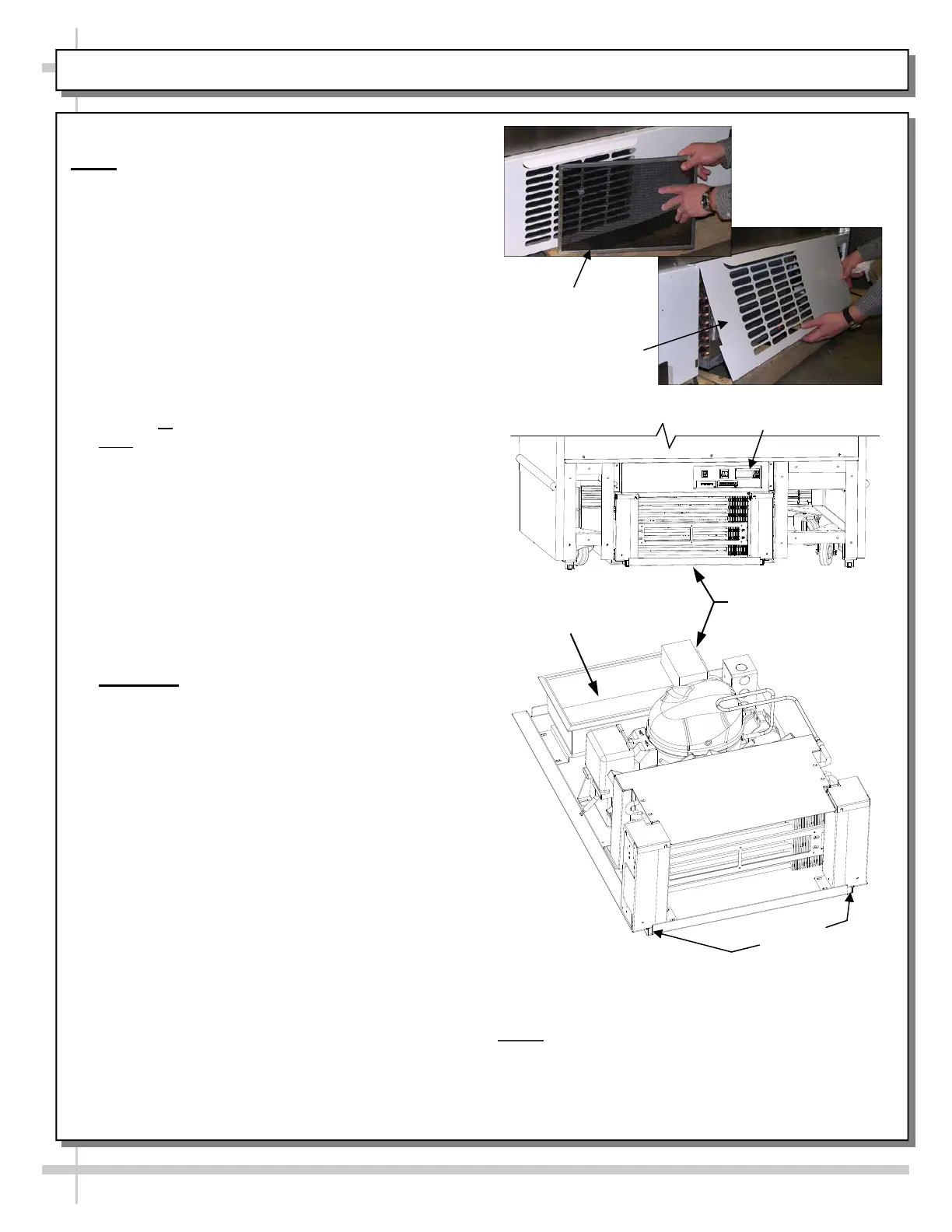

MAINTENANCE FUNDAMENTALS: REFRIG. PKG., TEMP. CONTROLLER, EVAP. PAN ACCESS

Refrigeration Package Access

NOTE: SERVICE TO BE PERFORMED BY TRAINED

SERVICE PROVIDERS ONLY.

Air Filter

 Magnetic strips attached to the filter adhere filter

to the rear grille.

 See CLEANING SCHEDULE: TO BE

PERFORMED BY STORE PERSONNEL for

cleaning instructions.

 See illustrations at top-right.

Slide Out Refrigeration Package

 Remove the rear grille. Grille may be slid upward

and out or

removal of screws may be required.

 Note: At initial slide-out, it may be necessary to

remove Compressor Pan Shipment Screws (see

illustration at right for location).

 Refrigerant lines are flexible to facilitate rear access

maintenance.

 Plastic glides are mounted at base to assist in sliding

the condenser out for access.

 Service connections are at the left of compressor.

 Slide condenser unit out 12 to 18 inches to access

high pressure service connection.

Condenser Pan Access / Removal

 WARNING! Condenser Pan May Be Hot! Check

temperature of pan prior to handling.

 Withdraw Condenser Pan from the right side behind

electrical box.

 Unplug Condenser Pan from the electric outlet.

 Empty Condenser Pan contents into suitable

container. Replace rear panel when completed.

Temperature Controller (Self-Contained Units Only)

 Temperature Controller is located in the Ballast Box.

 Temperature / Defrost control settings are

programmable from these locations.

 Case Temperature Set Point is set at the factory, as

determined by case size & sensor probe location.

 Temperature is controlled by thermostat.

 If a temperature setting change is required, follow

instructions regarding Temperature Control

Programming Steps in the technical information

section of this operating manual.

 If service is required to the temperature control unit,

call Structural Concepts Corporation. Maintenance

should be performed by a certified technician.

 The toll-free number is listed in the Technical

Service section of this manual.

 See Temperature Controller section in this manual.

NOTE: Spirit-filled thermometers located in the

refrigerated compartment are for monitoring warmest

air temperature in accordance with NSF Std. 7.

Refrigeration

Package Slide-Out

Shipment

Screws

Temperature

Controller

Evaporator

Pan

Air Filter

Rear Grille
