NOTE:

ILLUSTRATIONS

MAY NOT

EXACTLY

REFLECT EVERY

PARTICULAR

CASE’S

FEATURES

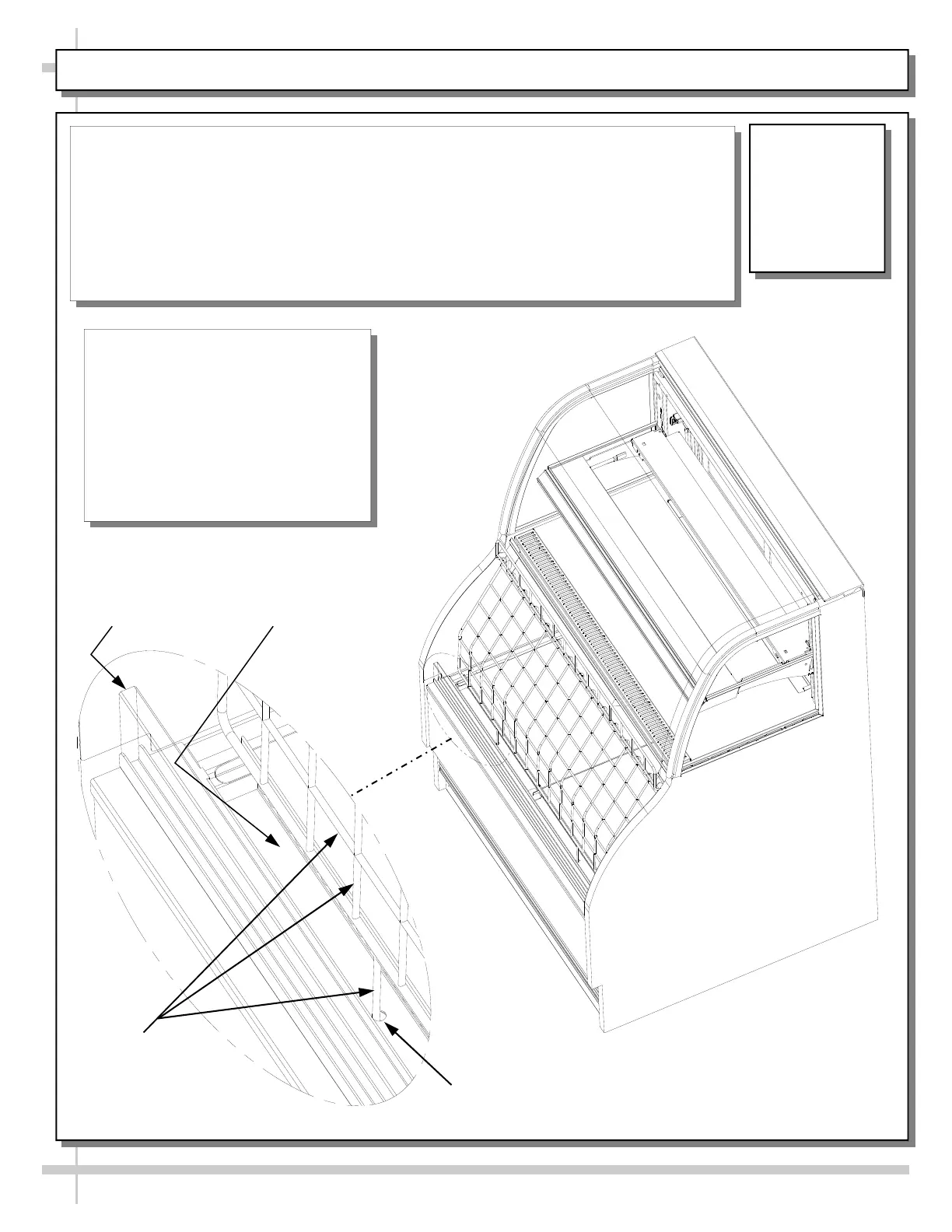

Initial Positioning and Installation of Security Grid

1. Due to weight and size, Security Grid installment may require two (2) people.

2. After hoisting the Security Grid directly over Front Air Deflector, drop the (2)

Security Grid Positioning Rods into the Baffle Airflow Slots (see below).

3. After securely positioned in the Baffle Airflow Holes, carefully and slowly lean the

Security Grid back against the two Security Brackets.

4. The next page in this manual will show how to secure the top of the Security Grid

to the Security Brackets.

Enlarged View (Below)

 Enlarged View (shown below)

shows Security Grid Positioning

Tab slid into Baffle Airflow Hole.

 There is one Security Grid Position-

ing Tab on each Security Grid end.

 Tabs must be securely positioned in

both Airflow Slots prior to locking

with Padlocks.

Security

Grid

Security Grid Positioning Rod

(Inserted in Baffle Airflow Hole)

Baffle Airflow

Area

Front Air

Deflector

SECURITY GRID INSTRUCTIONS (OPTIONAL) - PAGE #1 of 2
