16
NOTE: THE
BELOW
ILLUSTRATION
MAY NOT
EXACTLY
REFLECT
EVERY
PARTICULAR
CASE’S
FEATURES
OR OPTIONS.

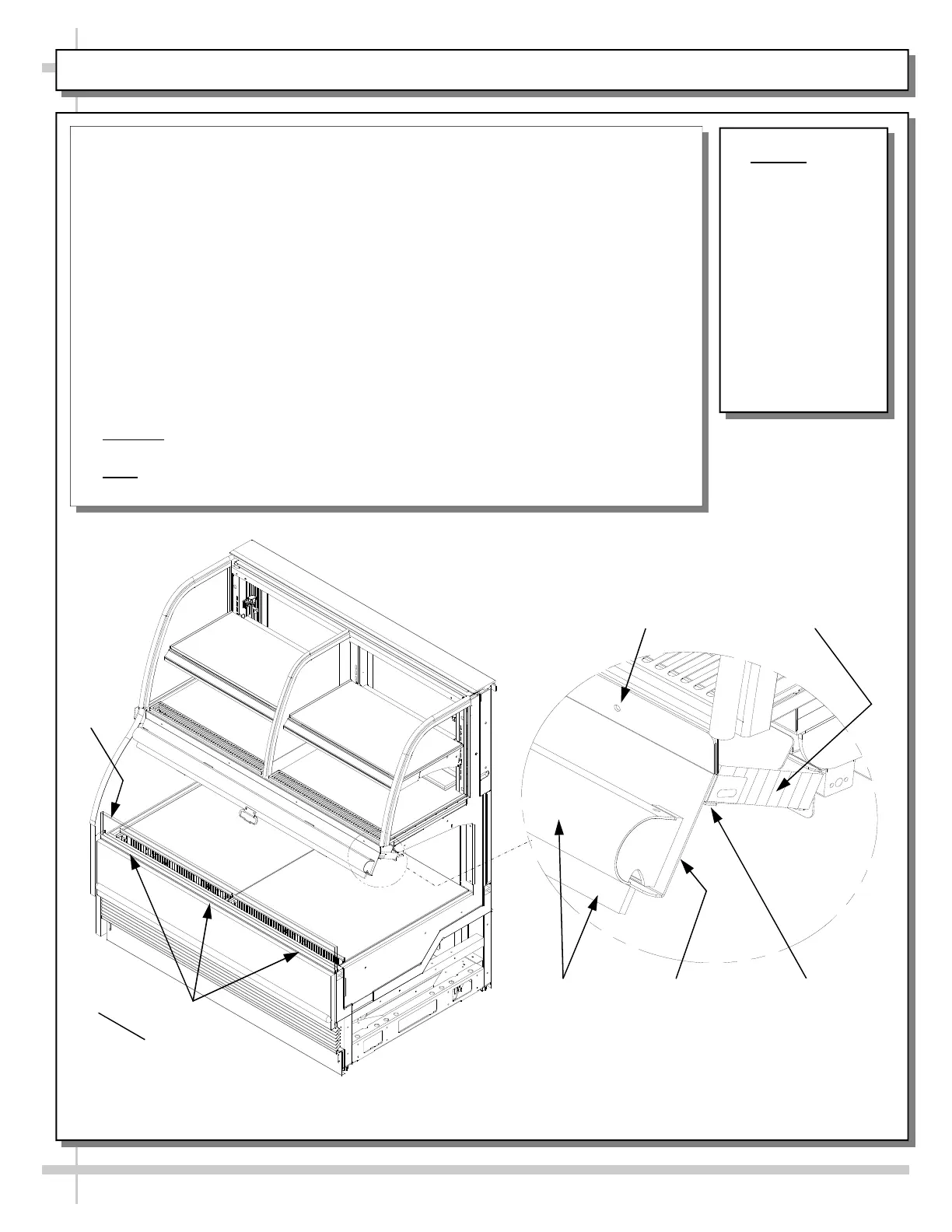

Night Air Curtain Installation & Operating Instructions
1. Use caution when handling Night Air Curtain.
2. Display case may come with Night Curtain already attached. If not, a retrofit kit
will be provided. If using the SCC-supplied retrofit kit, the Night Air Curtain
Support must first be attached to the existing Upper Front Duct Plate (see
illustration below). To attach, use the Night Air Curtain Support (as a template) by
placing it along the Front Duct Plate. Mark locations of existing Ø.20” hole onto
Upper Front Duct Plate. Drill clearance holes for #10 screws at these points.
3. Place Night Air Curtain Support into position and use the SCC-supplied screws to
attach it to the Upper Front Duct Plate (where pilot holes were just drilled).
4. Night Air Curtain Assembly may now be placed on the Night Air Curtain Support.
Carefully positioned magnets will keep in place. Grasp the handle and pull
downward to desired location (see illustration below).
5. To return Night Air Curtain to its retracted position, grasp handle, lift up and away
from its magnetic attachment and carefully wind Night Air Curtain back into roll.
6. Caution!
Do not allow spring-loaded Night Air Curtain to freely snap back into roll.
Doing so can eventually destroy Night Air Curtain’s tension and retractability.
7. Note
: Due to ONLY the magnets keeping Night Air Curtain Assembly in place, it
may be removed at any time by firmly lifting up and off Night Air Curtain Support.
N
i
g
h
t
A
i
r
C
u
r
t
a
i
n
M
a
g
n
e
t
s
T
o
A
t
t
a
c
h
A
l
o
n
g
O
u
t
s
i
d
e
V
e
r
t
i
c
a
l
Acr
y
l
i
c
S
n
e
e
z
e
G
u
a
r
d
S
u
p
p
o
r
t
Acrylic
Sneeze
Guard)
Honeycomb
Night Air Curtain
Support Existing
Hole (Typical)
Night Air
Curtain
Assembly
Night Air
Curtain
Support
Upper Front
Duct Plate
OPTIONAL NIGHT AIR CURTAIN INSTALLATION & OPERATING INSTRUCTIONS
