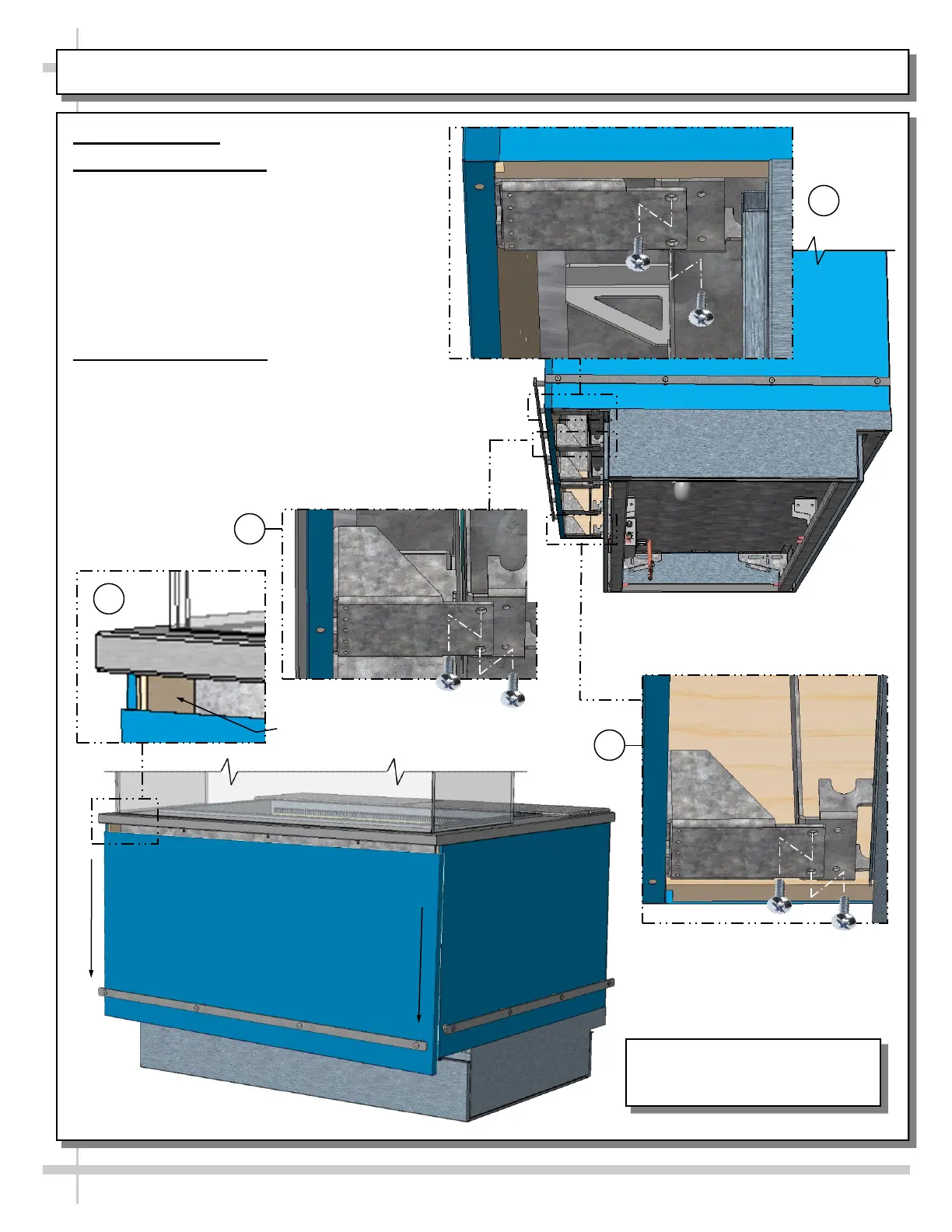

ADJOINMENT GUIDE: LOWERING FRONT PANEL FOR END PANEL ADJOINMENT

Adjoinment Guide

1. Lowering Front Panel

• Lowering front panel allows screws to be

inserted through inner end panels and into

adjacent cases.

• To do so, you must first remove two (2)

screws from brackets located at front

underside of case.

• Number of brackets vary depending upon

case length.

2. Adjoining End Panels

• Use wood screw to attach to adjacent case.

• After adjoinment screw has been attached, raise

front panel back up and reattach (2) screws in each

bracket.

• Drill bits and screws are provided in lineup kit.

• Number of brackets vary depending upon case

length.

Inner End Panel Adjoinment

Spot (At Both Ends) After

Front Panel Is Lowered

Screw Locations

(Remove To Lower The Front Panel)

Rear View of Model FB4S-3R Is

Shown. It May Not Reflect Every

Feature Or Option of Your Case.
