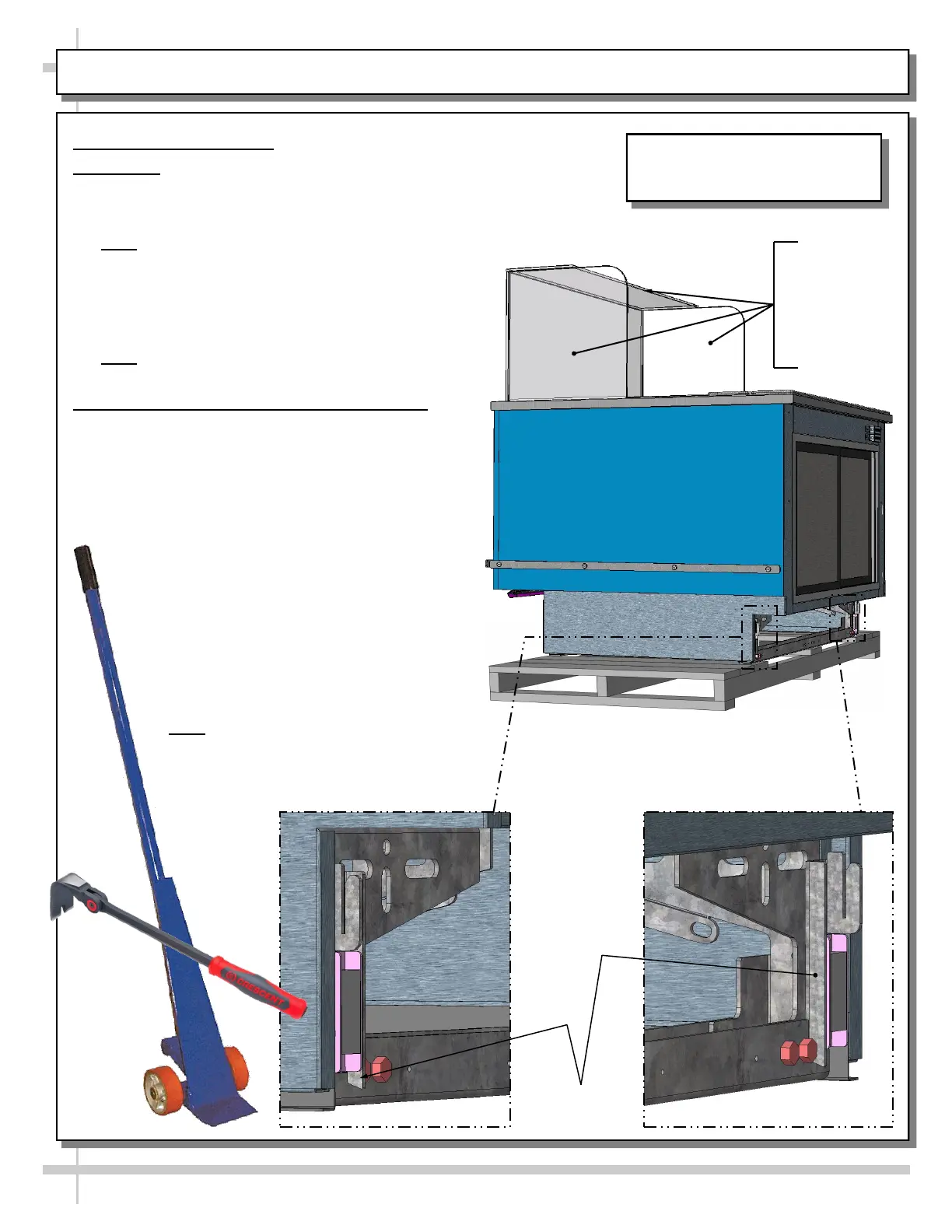

CASE REMOVAL FROM SKID / POSITIONING / FORK LIFT / J-BAR or DOLLY

J-Bar/Pry Bar

Lift Tabs

Remove Case From Skid

1. Fork Lift

• To lift case up for lift-truck forks to slide into position,

place J-bar, indexing flat pry bar or dolly under J-Bar

lift tabs (location shown below).

• Note: REAR lift tabs are extended beyond base

frame bolts (to allow greater access).

• Raise case up to allow forks to slide under rails.

• Insert forks under rails.

• Make certain case is well-supported on forks.

Move case to desired location. Lower in place.

• Note: Illustration shown may not reflect every

feature or option of your particular model.

2. J-Bar, Indexing Flat Pry Bar or Dolly Only

• Caution! Do not push or pull on glass while

moving case into position!

• With several people in position, carefully

slide frame support rail to edge of skid.

• Slide case off skid and lower frame

support to floor.

• Once the frame support rail rests on the

floor, have several people supporting

front of case while skid is slid out from

under case.

• After case is off skid, several people

may be required to slide into position.

• Or, depending upon case weight, use

J-Bar, dolly or indexing flat pry bar to

incrementally lift and rotate case into

desired position.

• Note: Illustrations shown may not

exactly reflect every feature or option of

your particular case.

Caution!

Do Not Push or

Pull on Glass

While Moving

Case Into

Position!

Indexing

Flat Pry Bar

J-Bar

Rear View of Model FB4S-3R Is

Shown. It May Not Reflect Every

Feature Or Option of Your Case.
