Night Air Curtain

Keyslots

NOTE: BELOW

ILLUSTRATION

MAY NOT

EXACTLY

REFLECT YOUR

CASE’S

FEATURES OR

OPTIONS.

Night Air Curtain Installation & Operating Instructions

1. Use caution when handling Night Air Curtain.

2. Display case may come with Night Curtain already attached. If not, a retrofit kit will

be provided.

3. If using SCC-supplied retrofit kit, place night curtain on top of case as shown. Mark

“keyslot” locations using underside of night curtain as a template. Drill pilot holes in

light shield and screw in #10-32 screws (leaving head exposed to allow “keyslots” to

fit over them). Attach Night Air Curtain to unit by #10-32 screws.

4. After Night Air Curtain is firmly attached to case, grasp handle and pull downward to

desired location (as shown below).

5. To return Night Air Curtain to its retracted position, grasp handle, lift up and away

from its magnetic attachment and carefully wind Night Air Curtain back into roll.

6. Caution! Do not allow spring-loaded Night Air Curtain to freely snap back into roll.

Doing so can eventually destroy Night Air Curtain’s tension and retractability.

7. To entirely detach Night Air Curtain from case, retract curtain (to access keyslots),

remove screws. Lift Night Air Curtain upward and away from case.

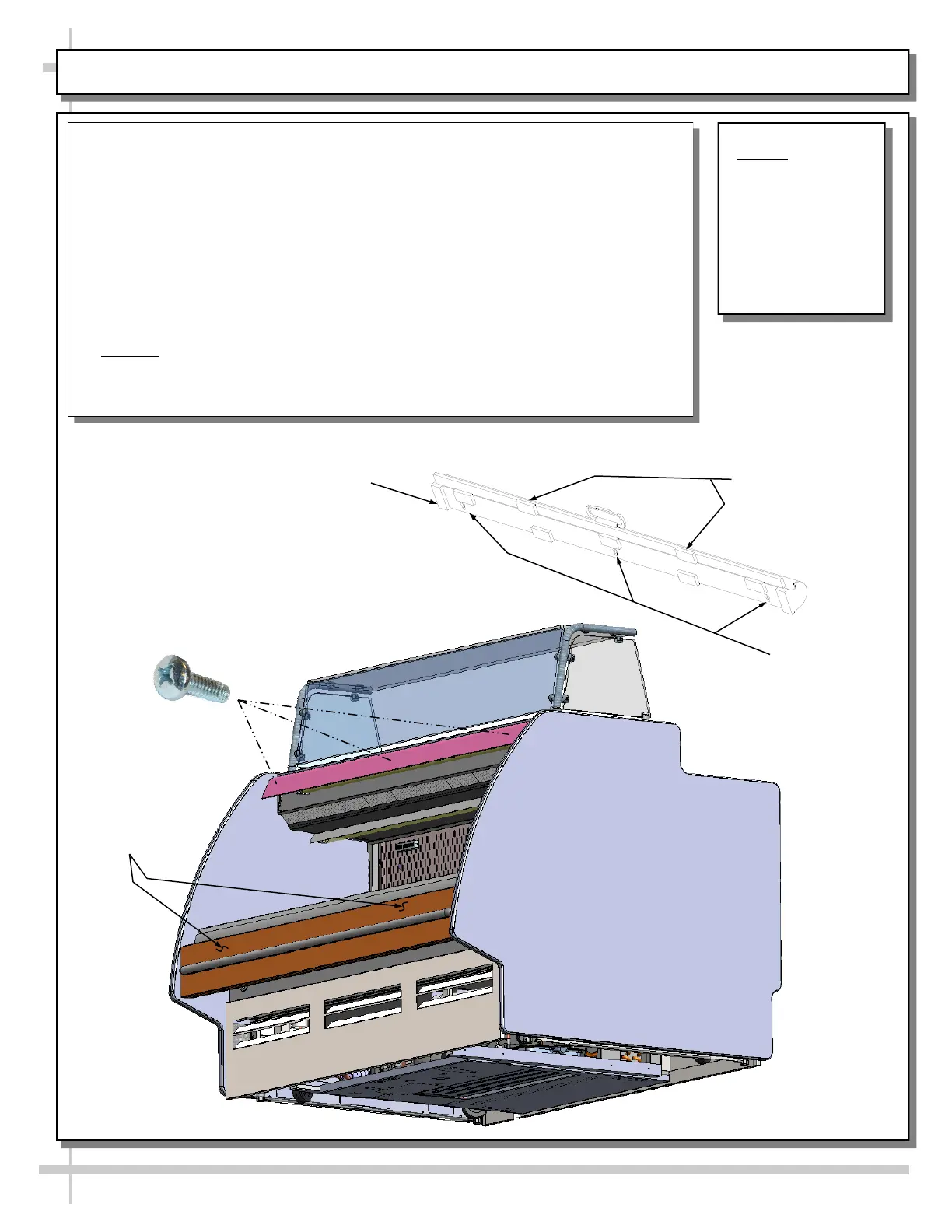

Night Air Curtain

Retraction

Magnets

Attachment Points

View of Night Air Curtain

(Underside / Detached)

Night Air Curtain

Retraction Magnets

#10-32 screw (to be

Inserted Into Light Shield

at Locations Matching

Night Air Curtain Keyslots)

MODEL GENERIC - OPTIONAL NIGHT AIR CURTAIN INSTALLATION / OPERATING INSTRUCTIONS

•
