MODEL GP441RG.6122 UPPER DISPLAY REFRIG. UNIT POWER CORD ROUTE / CONDENSATE LINE

MODEL GP441RG.6122 ONLY

1. Power Cord Route

• Power cord is at rear of upper display

refrigeration unit.

• Unit has its own on/off switch.

• Consult the Hoshizaki operating manual that

accompanies upper display refrigeration unit

for operational, cleaning and maintenance

specifics.

2. Condensate Drain Line Route

• Upper display refrigeration unit’s condensate drain

starts at rear of unit.

• It is then routed downward to floor drain.

• See illustration below.

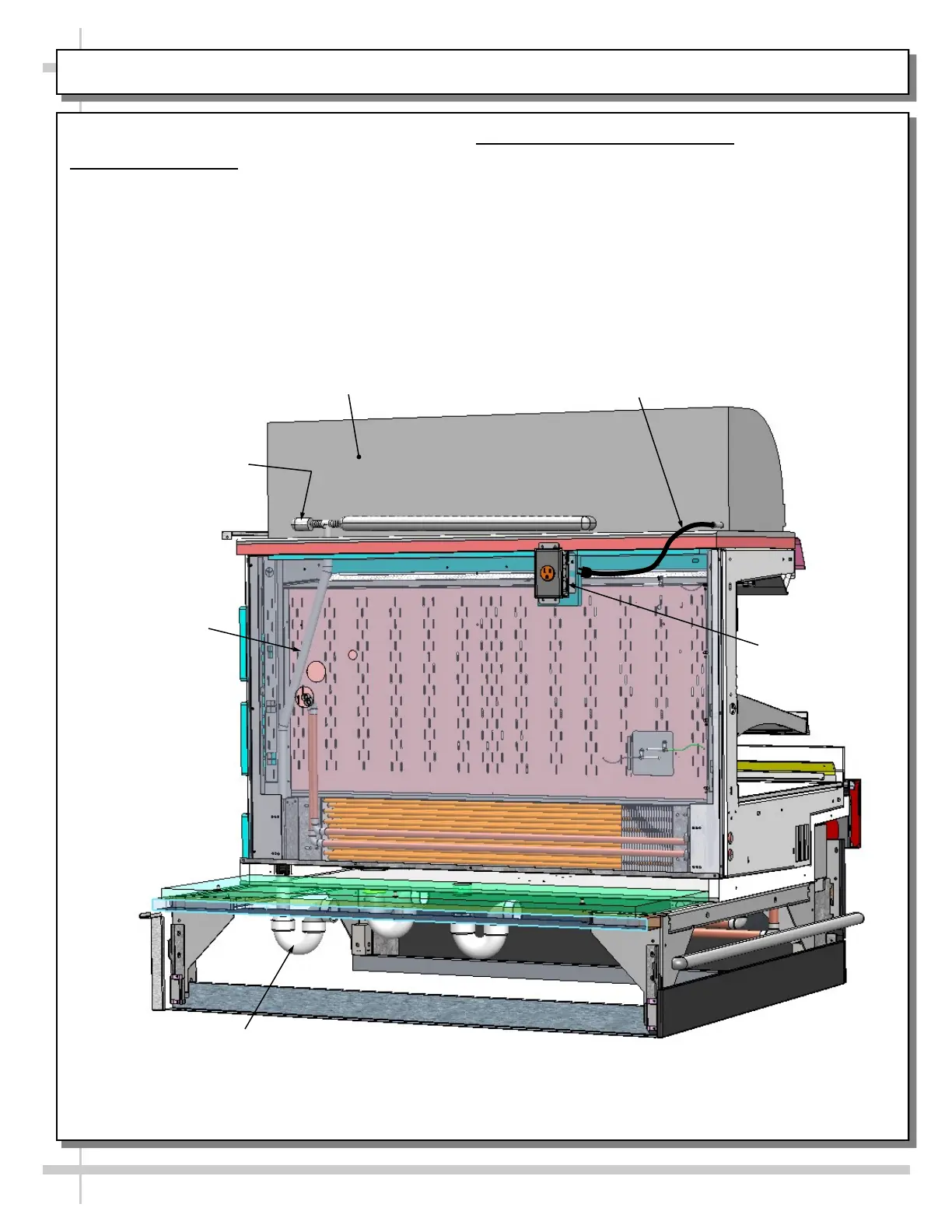

Model GP441RG.6122 Shown

Partially Disassembled For

Illustrative Purposes Only

Upper Display Refrigeration

Unit Power Cord To

Connect To GFCI Outlet

Dedicated Outlet

For Upper Display

Refrigeration Unit

Upper Display

Refrigeration Unit

Condensate Drain

Elbow

Hoshizaki Model HNC-120BA-L-S

Upper Display Refrigeration Unit

Upper Display

Refrigeration Unit

Condensate

Drain Line

Upper Display

Refrigeration Unit

Condensate P-Trap

& Drain
