MODEL GP236DRLB (DRY TOP UNIT) - LED LIGHTS / THERMOMETER / HONEYCOMB / EVAP. COIL

Model GP236DRLB LED Lights / Thermometer / Honeycomb / Evaporator Coil

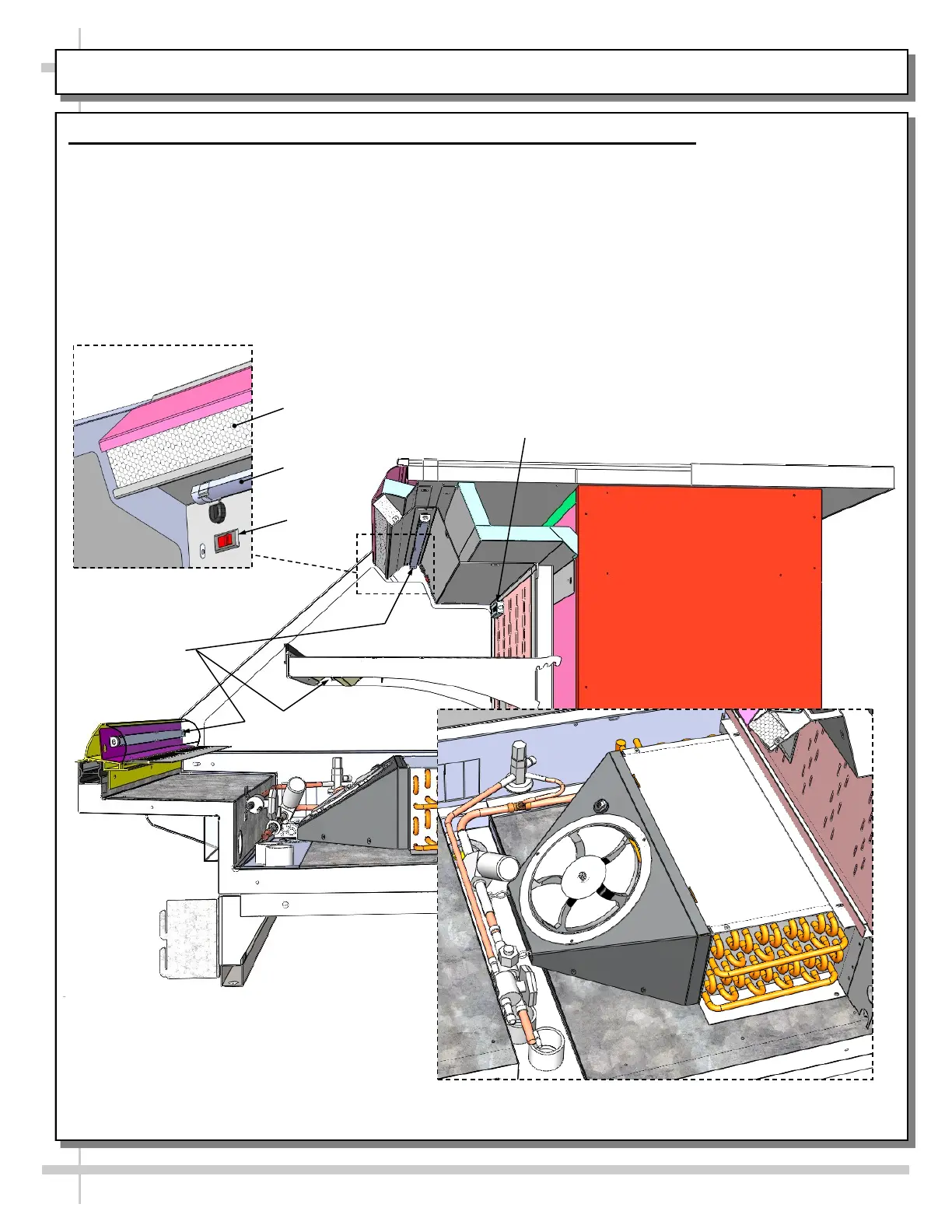

Illustration below is shown with end panel and deck pan removed for illustrative purposes only.

• LED lights are at nose, shelf and upper section (behind honeycomb).

• Light switch is at upper left below thermometer.

• Thermometer reflects warmest air temperature in merchandiser. They do not reflect actual food

temperature. Use probe thermometers to determine actual product temperatures.

• See MAINTENANCE FUNDAMENTALS - HONEYCOMB AIR DIFFUSERS section in this operating

manual for honeycomb cleaning specifics.

• Evaporator coil layout is shown rotated for layout purposes.

LED Lights

Honeycomb

Thermometer

Evaporator Coil Layout

(Rotated For Viewing Purposes Only)

LED

Light

LED Light / Honeycomb

(Rotated View)

Light

Switch
