MODEL GP236DRLB (DRY TOP UNIT) - REAR PANEL / FIELD ACCESS BOX / TEMP. CONTROLLER

Model GP236DRLB Rear Panel / Field Access /

Temperature Controller (Customer Provided)

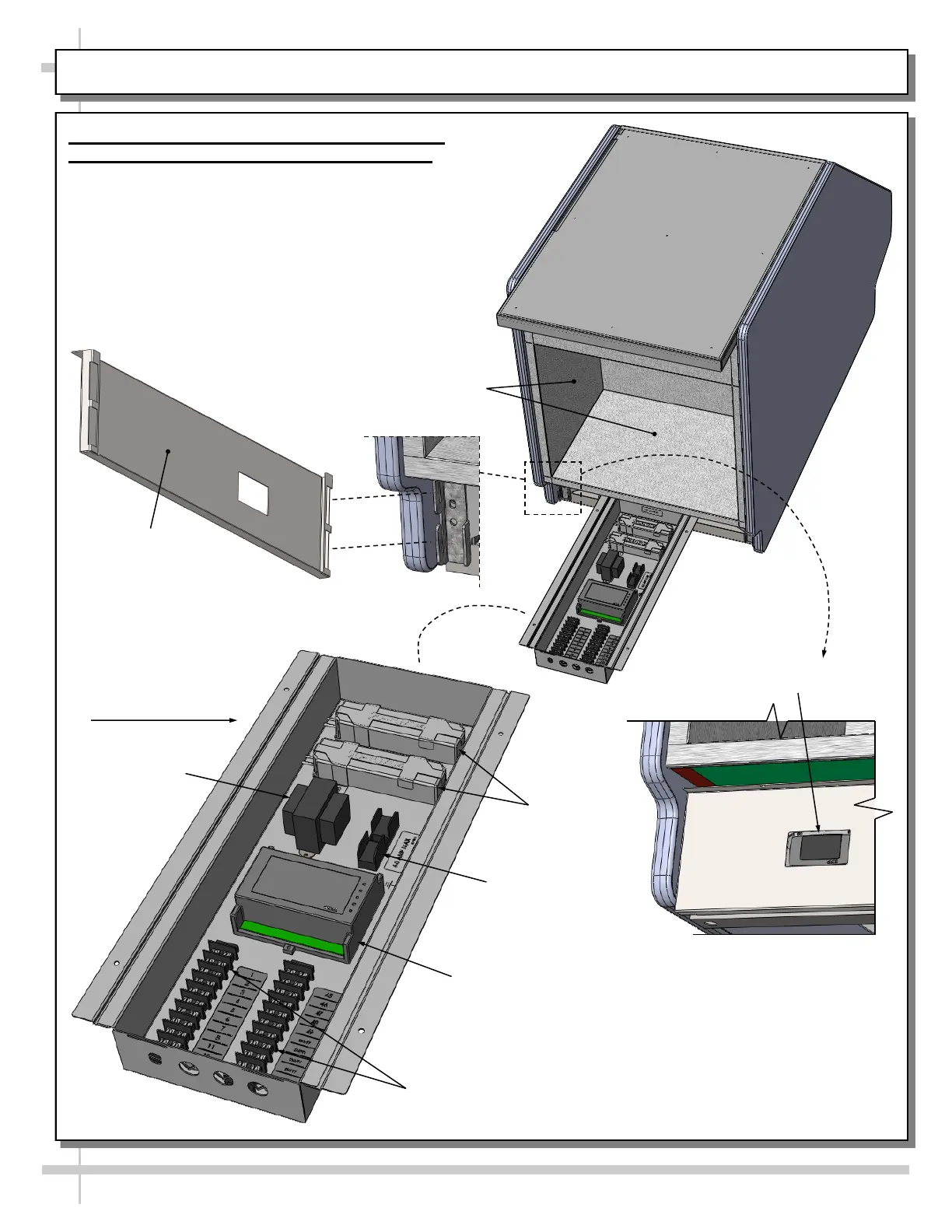

Illustration below shows general layout.

• Rear storage area is open with no shelving.

• Rear panel may be removed without screws (slot

to hook configuration).

• Field access box components are viewable by

removal of cover (for illustrative purposes only).

• Dixell® controller is customer maintained. See

your store manager for operational specifics.

Fuse Block

Terminal

Blocks

LED

Dixell® Controller

Transformer

Dixell® Display

View of Rear Panel

Attached To Case

Rear Panel

(Removable)

Field Access Box /

Electrical Box

Rear Storage

Area (Open)
