19

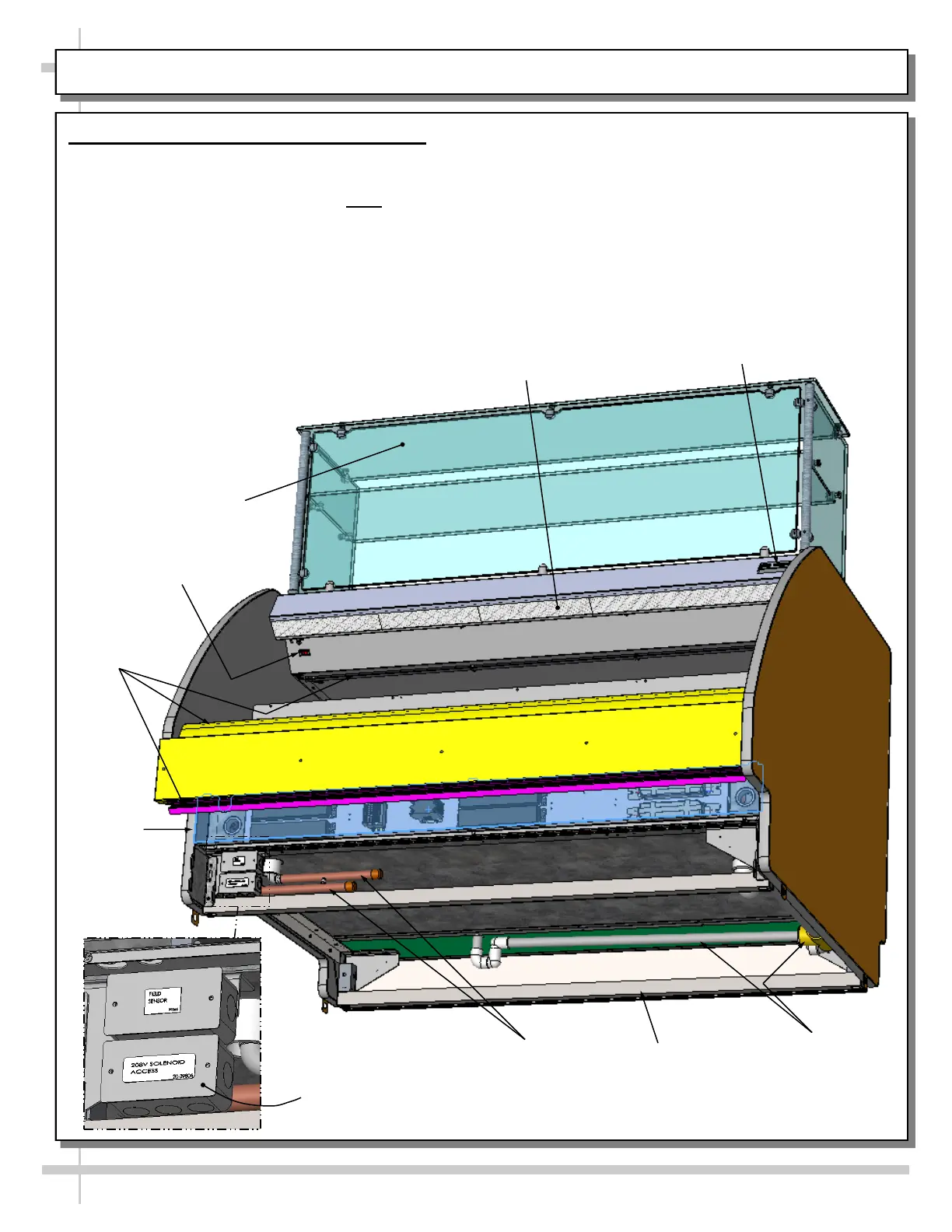

MODEL GP540RRLB.5572C - OVERVIEW OF CASE
Model GP540RRLB.5572C Overview of Case
View below shows general layout of:
• Glass upper sneeze guard (and its glass shelf)
• Thermometer for upper section. Note: Lower
section thermometer is located on rear plenum.
• Probe (positioned behind protective plate on
rear plenum).
Honeycomb
Air Diffuser
Glass Upper Sneeze
Guard With Shelf
Drain Route (From
Upper and Lower
Sections To
Floor Drain)
Light Switch
• Light switch (located at front-left, just below
honeycomb).
• Frame support rails.
• Field sensor box.
• 208V solenoid access box.
• Floor drain (from both upper and lower sections).
• Electrical raceway.
• Refrigeration lines.
Thermometer
Field Sensor / 208V
Solenoid Access
Frame
Support Rails
Refrigeration
Lines
Electrical
Raceway
Electrical
Raceway
