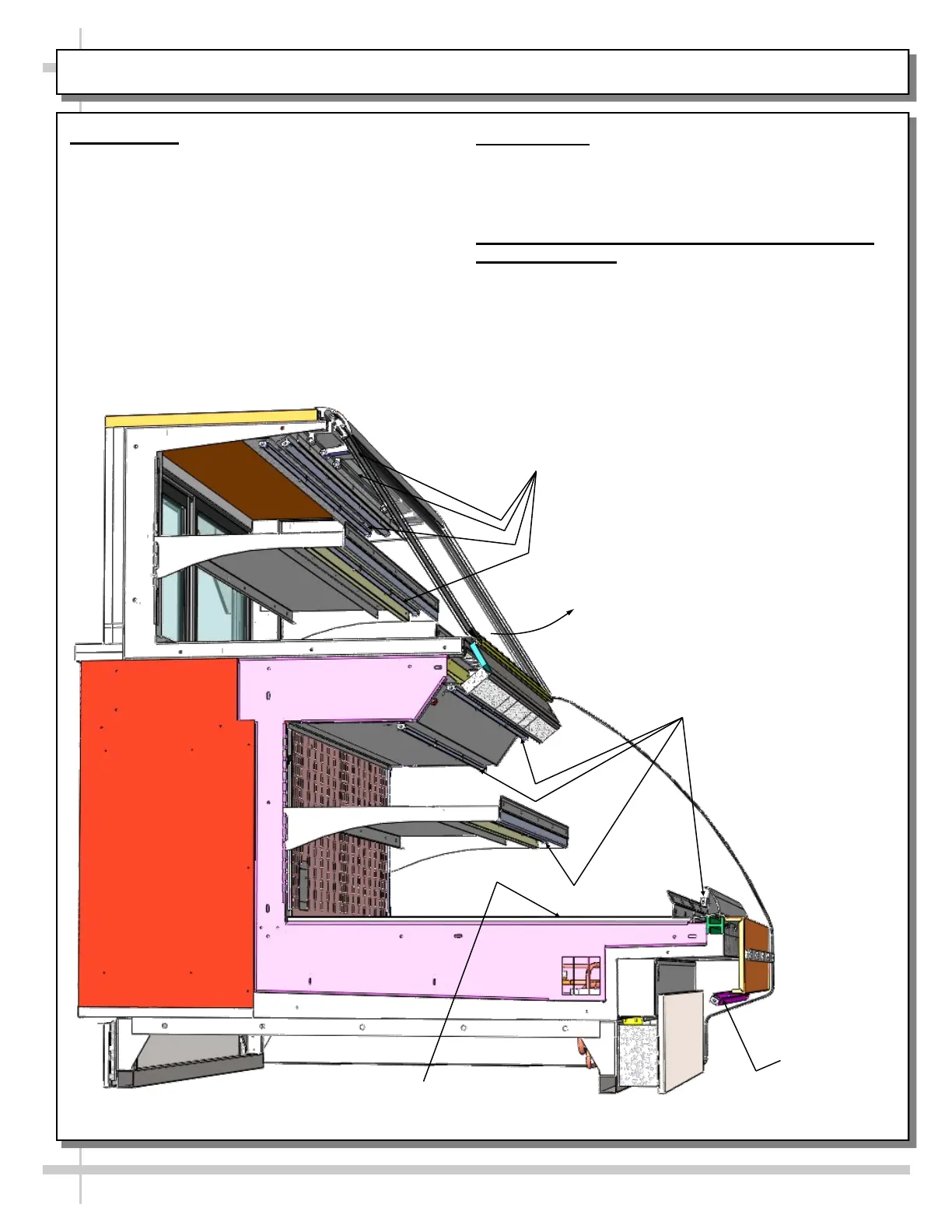

MODEL GP540RRLB.5571B - LED LIGHTING LAYOUT / FRONT GLASS / EVAP. COIL/TXV/FANS, ETC.

1. LED Lights

• Model GP540RRLB.5571B has LED lights only

(no fluorescent lights).

• Lights may be removed for servicing and/or re-

placement.

• See LED LIGHT REMOVAL/REPLACEMENT,

PLUG/CORD POSITIONING, PROPER PLUG

INSERTION section in manual for specifics on

care and maintenance.

2. Front Glass

• Caution! Only authorized service personnel are to

access front glass!

• Front glass may be raised for cleaning or servicing.

3. Evaporator Coil, TXV (Thermostatic Expansion

Valve), Fans, Etc.

• Caution! Only authorized service personnel are to

access area under deck!

• Rotating fans can cause injury!

Upper Section

LED Lights

Lower Section

LED Lights

Lower Skirt

LED Light

Front Glass

(May Be Raised)

Evaporator Coil, TXV, Fans, Etc.

(Under Decking)
