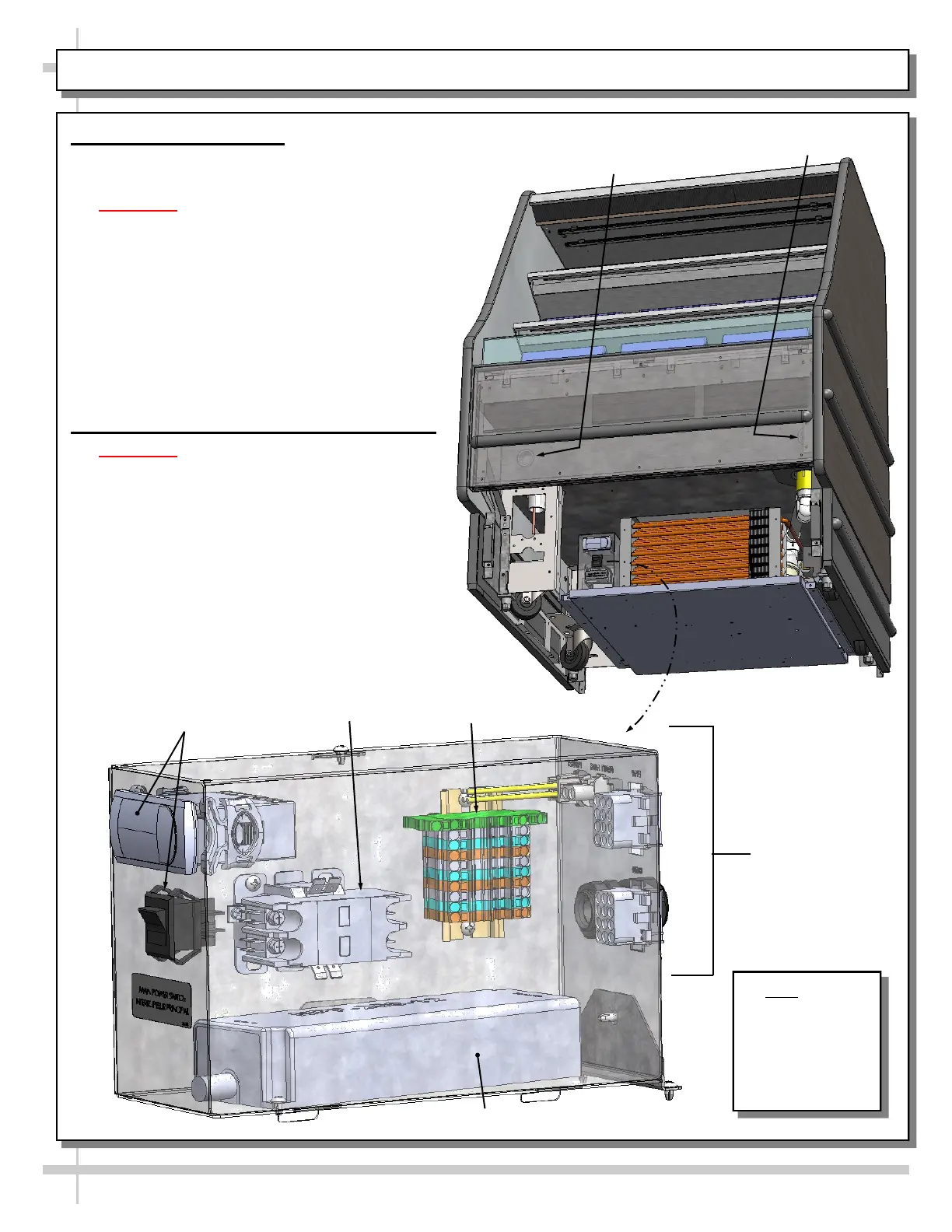

FIELD ACCESS BOX / ELECTRICAL COMPONENTS / PROGRAM. CONTROLLER, ETC. - GMSS352R.8110

1. Electrical Components

Field Access Box, VCD Driver, Terminal

Block, Contactor, Wire Raceways, Etc.

• Important: Wiring process must be

performed by certified electrician only!

• Front panel is shown removed raceway

cover is shown transparent for illustrative

purposes only.

• Electrical box/field access box is at

front-left of case.

• When properly field-wired (or plugged in),

case will be energized.

• Raceway cover must be removed to access

various electrical components.

2. Program. Controller / Main Power Switch

• Important: Wiring process must be

performed by certified electrician only!

• Programmable controller and main power

switch is at case front.

• When case has been properly connected to

power source, main power switch may be

turned on; programmable controller will

energize.

• See your particular programmable

controller operating instructions for more

information.

VDC

Drivers

Contactor

Right Wire Raceway

Terminal Block

Left Wire Raceway

Rear

Connectors

VCD Driver

Programmable Controller

& Main Power Switch

Note: Model

GMSS352R.8110

(shown) may not

exactly reflect

every feature or

option of your

particular case.
