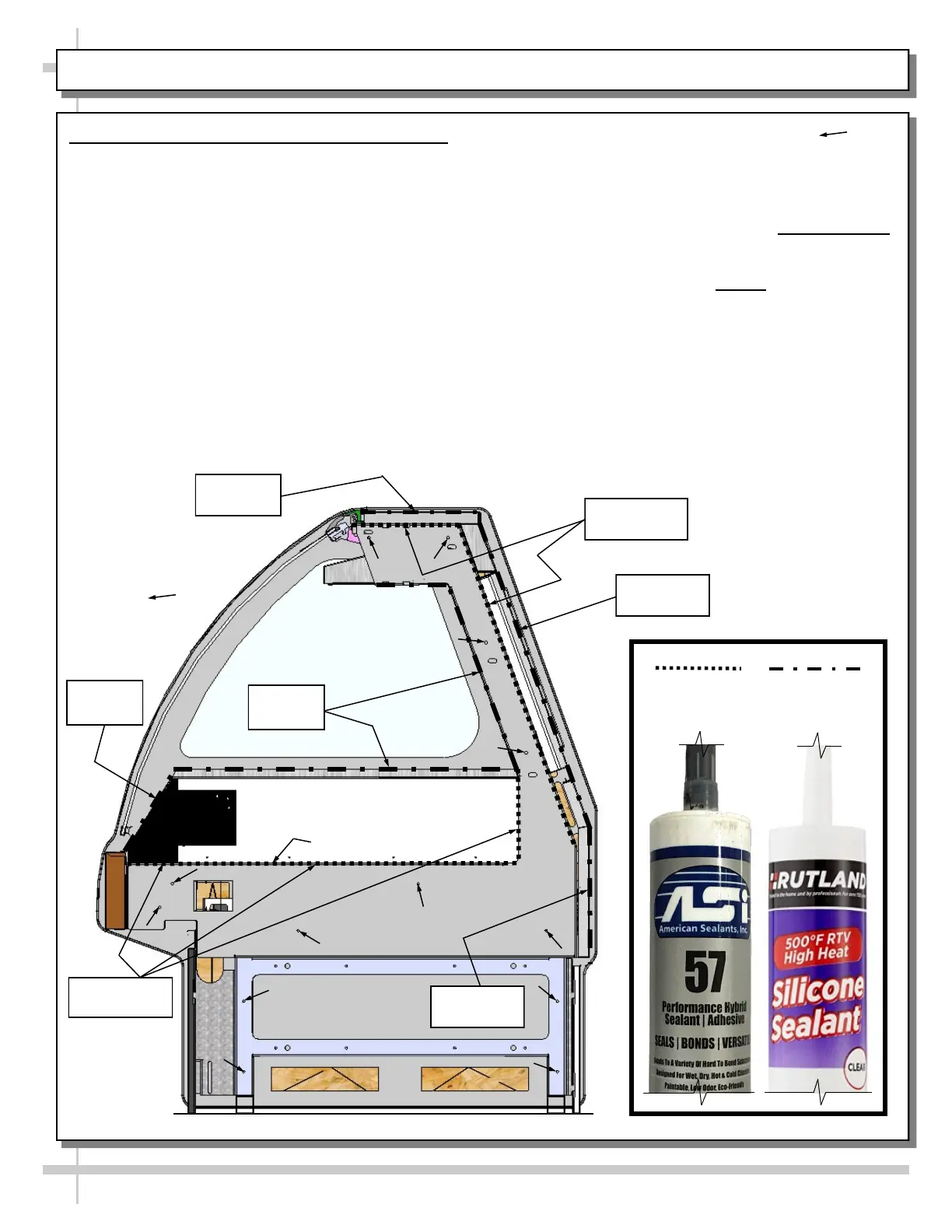

INSTALLATION INSTRUCTIONS, CONT’D: SEALING AND BOLTING HEATED CASES TOGETHER

3. Sealing and Bolting Heated Cases Together

Follow these steps to assure a secure, level lineup.

A. Begin all lineup leveling from highest point of

floor.

B. After the ’first’ case is level, check that front and/

or rear doors smoothly open and close.

C. Apply a heat-retention bead of industrial grade

urethane adhesive on NON-VISIBLE areas

(at case ends) as directed below. See sample

product at lower-right.

D. Line up ‘second’ case bolt-hole to bolt-hole to

‘first’ case.

E. Using SCC-supplied bolts (found in installation

packet or inserted in holes); connection points are

Deck

Approximate hole

locations pointed at

with arrows ( ) for

bolting units together.

Sanitation

Bead

Heat-Retention

Bead

shown with floating arrowheads below ( ). You

may need to remove decking, side covers, ‘perf’

panel, etc. to access certain holes. Insert bolts.

F. Caution! Front of cases MUST be flush with each

other! After leveling, all cases to be same height.

G. Using SCC-supplied nuts & bolts, lightly tighten

each of the 5 to 8 bolts in a cross-wise pattern.

Work your way around the pattern, tightening

more firmly at each pass. Do not firmly tighten

one bolt and then start on the next!

H. After the cases are bolted together, level the

‘second’ case. Repeat this process for each case

to be adjoined.

I. After all lined-up cases are level, apply a

sanitation bead of industrial grade, heat-rated

silicone sealant as directed below. See sample

product at lower-right.

Heat-Retention

Bead

Urethane For

Heat-Retention

Bead

Heat-Rated

Silicone For

Sanitation Bead

Sanitation

Bead

Sanitation

Bead

Sanitation

Bead

Sanitation

Bead
