CLEANING SCHEDULE (INTERIOR) - TO BE PERFORMED BY STORE PERSONNEL (PAGE 2 of 3)

FREQ. INSTRUCTIONS

At Least

Weekly

Upper Refrigeration System/Gravity Coil Drip Tray Assembly:

Caution! To insure proper case performance, you must thoroughly clean and defrost

this merchandiser at least WEEKLY.

• If optional humidification (“misting” system) is on unit, it must be turned off while

thoroughly cleaning and defrosting!

• Cleaning controls switch is NOT in unit, but it may be provided by others. If a switch is

accessible, flip to “OFF” position. If not, you must contact your facility manager to turn off

upper refrigeration system. Allow upper system to thoroughly defrost.

• Lift rear sliding doors up and out from unit. See MAINTENANCE FUNDAMENTALS -

REAR SLIDING DOORS section for these instructions.

• Disconnect hose from connection spout (may require removal of hose clamp). Remove

thumbscrews holding gravity coil tray drip assembly in place. Drop tray drip assembly

downward. Lift ‘hooks’ on each end of gravity coil assembly off upper slots inside case.

• Remove from unit. Submerse in hot water using an anti-bacterial soap solution. Rinse

thoroughly and dry. Return to case. Reattach thumbscrews. Return rear sliding doors to

case. Turn case back on.

• Note: Depending upon unit, defrost timer MAY need to be reset.

Quarterly Axial Fans:

• Caution! Turn off main power switch to case and unplug from outlet before starting!

• See OPERATION, CONTINUED: MODEL GMGX4 BLOWER COIL WEDGE UNIT ONLY

- PAGE 2 of 2 section in manual for axial fan location.

• Remove protective grilles that may be preventing access to the axial fans.

• Wipe axial fan blades with moist cloth dipped in warm, soapy water.

• Wipe dry with clean cloth or paper towel.

• Return protective grille to axial fans. Fasten securely.

Quarterly

Optional Humidification (“Misting”) System: Clean at least quarterly to prevent malfunction

and/or inferior performance. Follow your system’s cleaning instructions for specifics.

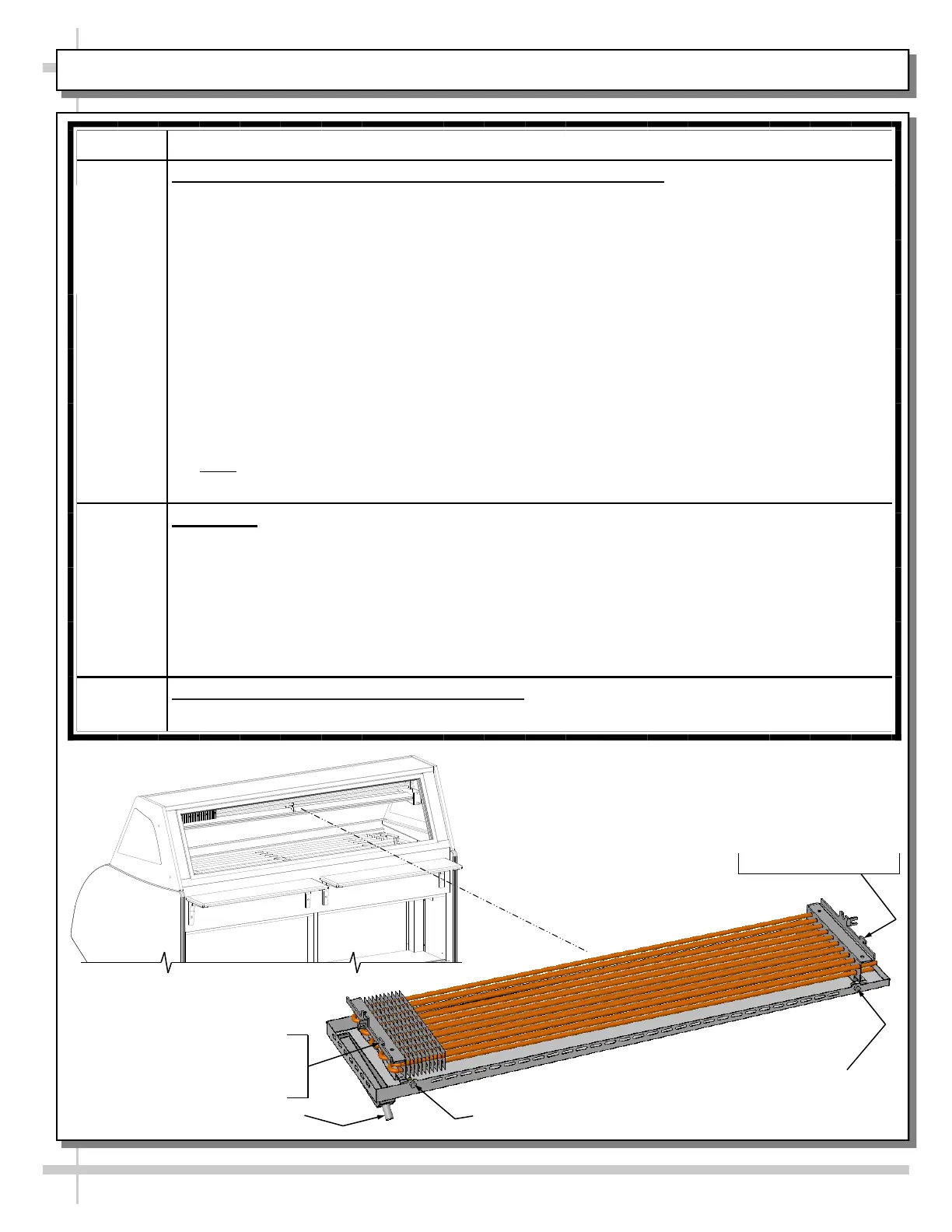

Thumbscrew

Gravity coil drip tray

assembly ‘hook’ rests

in upper slot to hold

gravity coil assembly

in place.

Enlarged View of

Gravity Coil Drip Tray

Assembly

Hose Connection Spout

Thumbscrew

Gravity coil drip tray assembly

‘hook’ rests in upper slot to hold

gravity coil assembly in place.
