CLEANING SCHEDULE (INTERIOR) - TO BE PERFORMED BY STORE PERSONNEL (PAGE 3 of 3)

FREQ. INSTRUCTIONS

Monthly Condenser Coil (Self-Contained Units Only):

• Note: If desired, refrigeration package may be slid out from under case.

• Cleaning: Remove rear grille. Use air pressure if available (or an industrial strength

vacuum), clean the dust and dirt that collects on the condenser coil.

• Caution! Be careful not to damage the fins on the coil!

Quarterly Condensing Unit (including Evaporator Pan):

• Condenser package may be slid out from under case for greater access.

• Warning! Evaporator pan may be hot.

• Allow evaporator pan to cool approximately 30-minutes before cleaning.

1. Turn off power. Disconnect case from power source.

2. To JUST ACCESS EVAPORATOR PAN, front toe-kick may be removed by simply lifting

up and off. No screw removal required.

3. To FULLY ACCESS REFRIGERATION PACKAGE, remove rear grille by simply lifting up

and off. No screw removal required.

4. Disconnect evaporator pan electrical connection from receptacle box.

5. Remove evaporator pan mounting screws from compressor pan.

6. Remove evaporator pan from unit.

7. Thoroughly clean evaporator pan with de-scaling solution, such as CLR®. Rinse

thoroughly. DO NOT submerse in water.

8. Use clean towel dipped in soap and water solution to wipe down all fans, motor,

refrigeration lines, cords, knobs, sight glass, connectors and all other surfaces.

9. Wipe dry.

10. Reposition evaporator pan on compressor pan.

11. Reattach mounting screws to evaporator pan.

12. Reconnect evaporator pan electrical connections.

13. Slide back under case.

14. Replace rear grille.

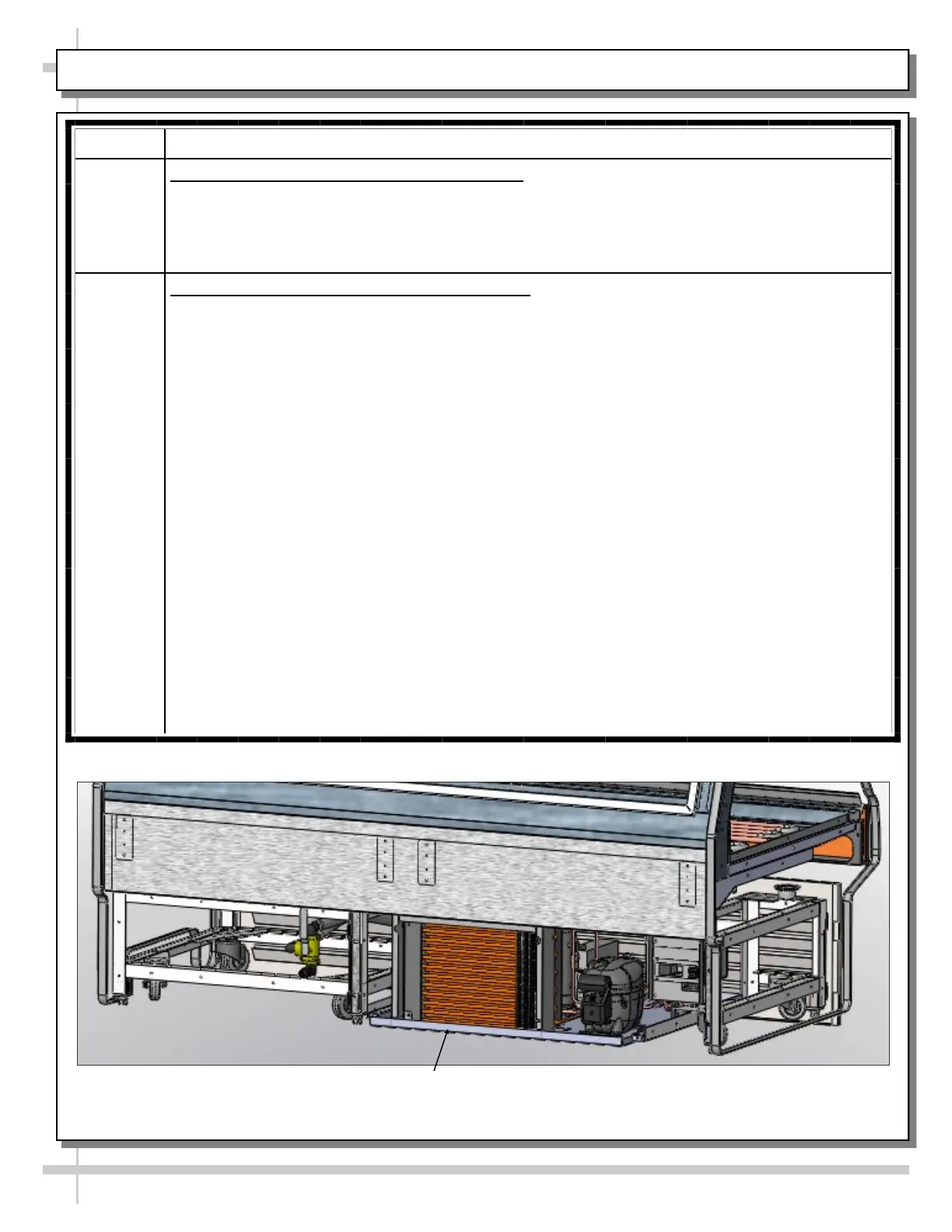

Refrigeration Package

(Rear Grille Removed For

Illustrative Purposes Only)
