MAINTENANCE FUNDAMENTALS, CONT’D: REAR LIFT FRONT GLASS
9. Rear Lift Front Glass
• Model GMDSV3R.6694 (and possibly other models)
has UV-glued front glass may be raised via hinge that is
located near case rear.
• Simply grasp lift handle and raise upward.
• Front glass will raise up to 90° (as shown in illustration).
• Raised glass allows front access for product re-stocking
and/or cleaning purposes.
• Lower front glass slowly to prevent damage to unit.

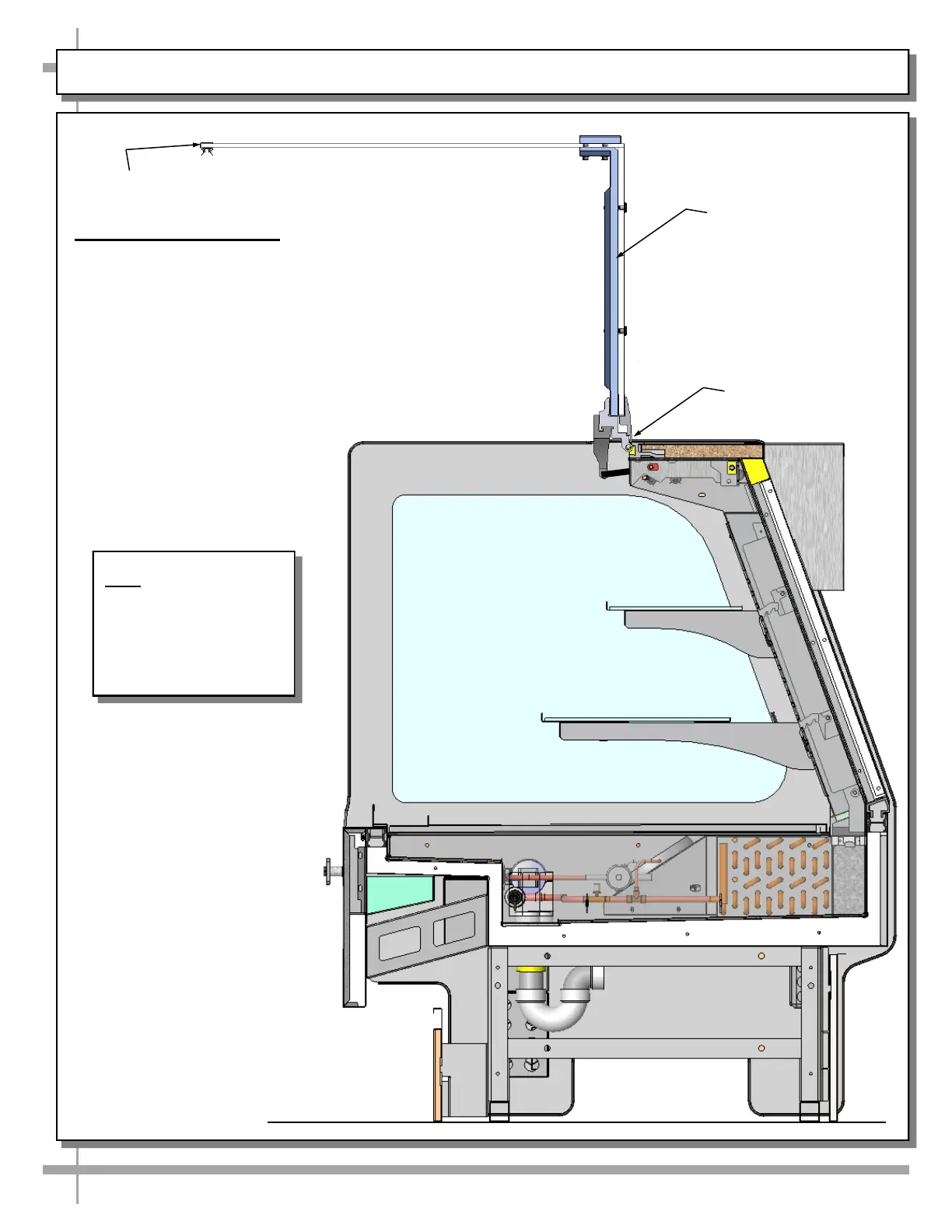

Rear Lift Front Glass
(Shown In Raised
Position)
Hinge
Note: Illustration shown
reflects Model
GMDSV3R.6694.
It may not reflect every
feature or option of
your particular unit.
Lift Handle
