MAINTENANCE FUNDAMENTALS, CONT’D: DRAIN / TXV VALVE ACCESS

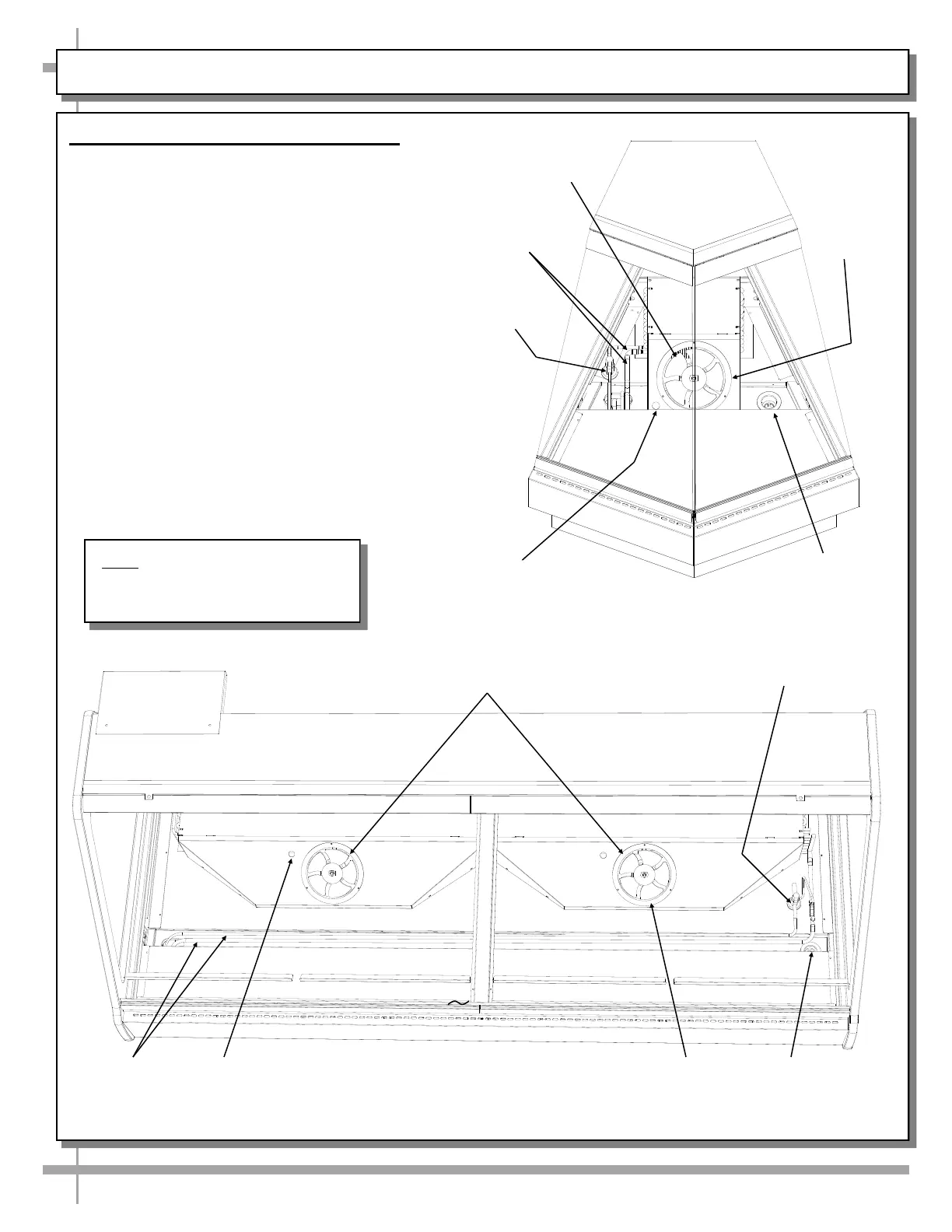

7. Drain and Expansion Valve Access

• The drain and expansion valve are both

accessible from the front of the case.

• Unplug the fans (one plug per side) and

remove the fastener from the access panel in

the front right (or left) corner of the unit.

• The drain and the expansion valve (TXV) is

directly below the access panel.

Fan Plug

(Typical)

Evaporator

Fan

Model GMDS8R is Shown Above

With Pans & Shelf Removed.

Your Case May Differ

Model GMDSX4R is Shown Above

With Pan & Shelf Removed

Evaporator

Fans

Drain

TXV Valve

Refrigeration

Lines

Evaporator

Fan

Drain

Refrigeration

Lines

TXV Valve

Fan Plug

(Typical)

Evaporator

Fan

Note: Illustration shown may not

exactly reflect every feature or

option of your particular unit.
