INSTALLATION, CONTINUED: CASE ADJOINMENT INSTRUCTIONS

4. Case Adjoinment Instructions

>> Warranty is void if improper caulk/sealant is used.

>> Lay generous beads of caulk/sealant as specified.

A. Prior To Adjoinment - Apply Industrial Butyl

Caulk at Center of Uprights

• Lay a generous bead of industrial grade butyl caulk

at center of uprights (in non-visible areas).

• This butyl caulk prevents refrigerated air from

escaping between cases (causing condensation and

reducing refrigeration efficiency) as well as

preventing ants or other insects from entering case.

• See illustration below.

B. Adjoining Cases - Using Bolts and Nuts

• Use appropriately sized nuts and bolts for each hole.

#1 - Hole is accessible at underside of top surface

support.

#2 - Holes are accessible through rear plenum and

behind honeycomb air diffuser.

#3 - Holes are accessible at underside of decking.

Decking must be removed to attach bolts/nuts.

#4 - Holes are accessible at base frame (through front of

case after front toe-kicks have been removed).

• Tighten nuts securely (but do not over-tighten).

• See accompanying illustration below.

C. After Adjoinment - Apply Food Grade Silicone Sealant

To Inner And Outer Seams

• After all nuts/bolts are securely attached to case, apply a

generous bead of food grade silicone sealant at both

inner and outer adjoinment seams.

• When properly applied, this food grade silicone sealant

will prevent water from seeping between cases (into the

case or to the floor) as well as crumbs or other residue

from entering between case seams.

• See illustrations below.

>> You must reattach toe-kick and decking after case

adjoinment process is complete.

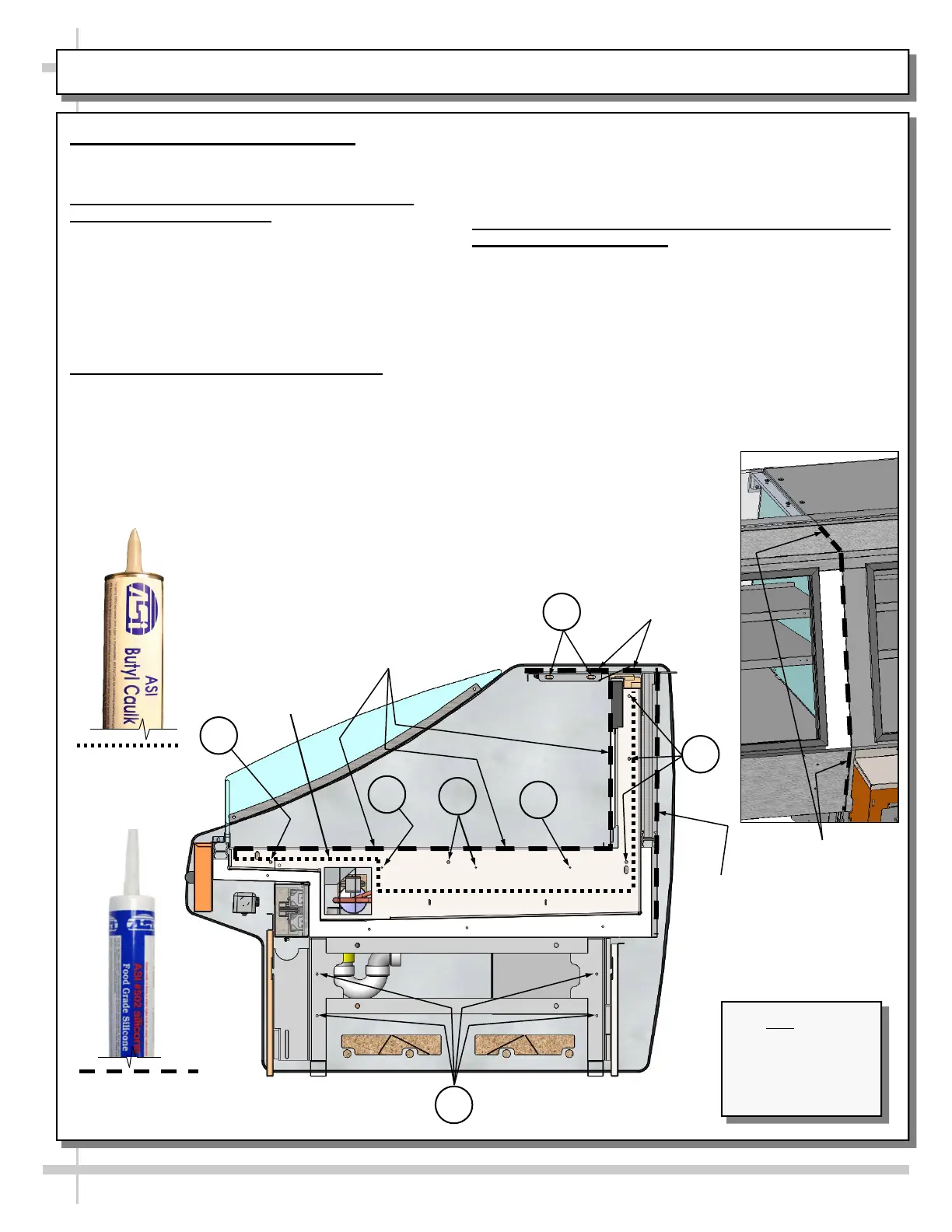

Note: Model

GLDSS539R.6145 Is

Shown at Left. Decking

Has Been Removed

For Illustrated

Purposes Only.

Refrigeration

Bead

Inner Sanitation

Bead

Outer Sanitation

Bead To Be Applied

At Outer

Adjoinment Seams

(Shown Above In

Random Model)

Outer

Sanitation Beads

Outer

Sanitation

Bead

Industrial Grade

Butyl Calk (For

Refrigeration Bead

Applications)

Food Grade Silicone

Sealant (For Sanitation

Bead Applications)
