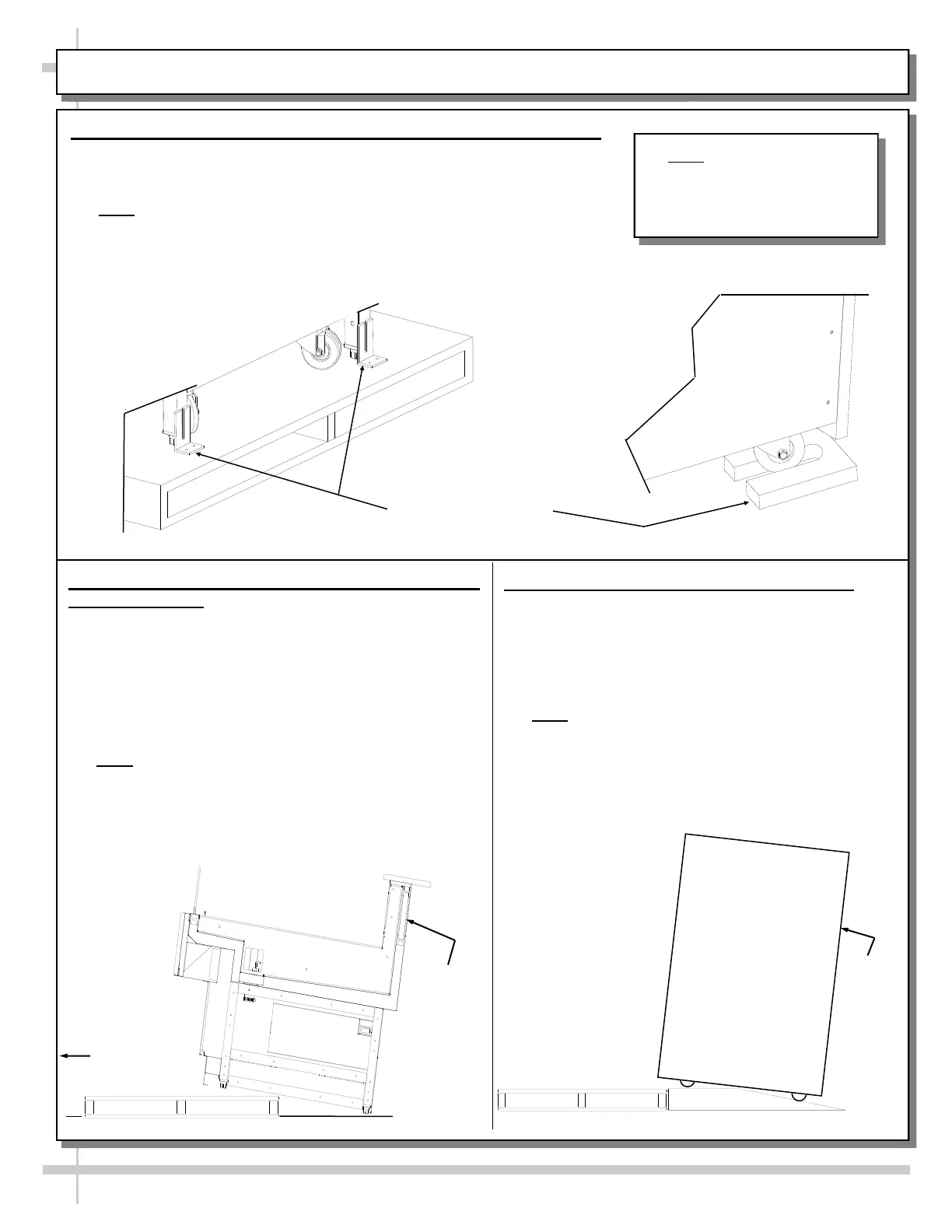

REMOVAL FROM SKID

Note: Units shown may

not depict an exact

representation of your

particular unit being installed.

CASE REMOVAL FROM SKID (CASTERS, LEVELERS OR FRAME SUPPORT RAILS)

Various Types Of

Case Shipping

Brackets

1. Removing Case Shipping Brackets That Are Attached To Skid

• Remove screws holding Case Shipping Brackets to skid.

• Remove Case Shipping Brackets from Skid.

• See illustrations below.

• Note: Shipping Brackets will vary in size, shape, material and

location depending upon case type and model.

3. Remove Case (With Casters) From Skid

A. Place ramp up against skid (to allow case to

smoothly slide off from skid).

B. Maintain support of case at all times or center

of gravity may cause case to fall.

C. Unlock Casters. Slide unit to rear of skid. Slide

down ramp and off from skid.

• Note: Illustrations reflect general outline of

sample case and may not reflect your particular

model or options).

Support

case

while

sliding

down

ramp.

Ramp

2. Remove Case (With Levelers or Frame Support

Rails) From Skid

• To prevent damage, support case while sliding it

toward edge of skid.

• When case is at edge of skid, carefully lower to

floor so that two levelers (or one frame support

rail) rests on floor.

• Carefully slide skid out from under case.

• After case is off skid, place into position.

• Note: Illustration below reflects general outline of

sample case and does not reflect any particular

model or options).

Carefully

Slide Skid

Out From

Under Case

Support

case

while

removing

from skid
