INSTALLATION: REFRIG. LINE & DRAIN STUB-UP CONNECTION - MODEL GJDSS8RLB ONLY

9. Refrigeration Line Stub-Up Connection

• Remove front panel/toe-kick. Refrigerant stub-up

access opening is at the front on the left hand

side of the base (as shown in illustration below).

• See previous page for Model GJDSS6RLB

refrigeration line stub-up connection layout.

10. Evaporator Coil Drain Connection

• Coupler connection point is under the case on the

right hand side (as shown in below illustration).

• Front panel/toe-kick may be removed to allow

access when connecting PVC drain tube to

coupler.

• Maintain 1/4”-fall per foot to provide proper

drainage.

• See next page for Model GJDSS10RLB

evaporator coil drain connection layout.

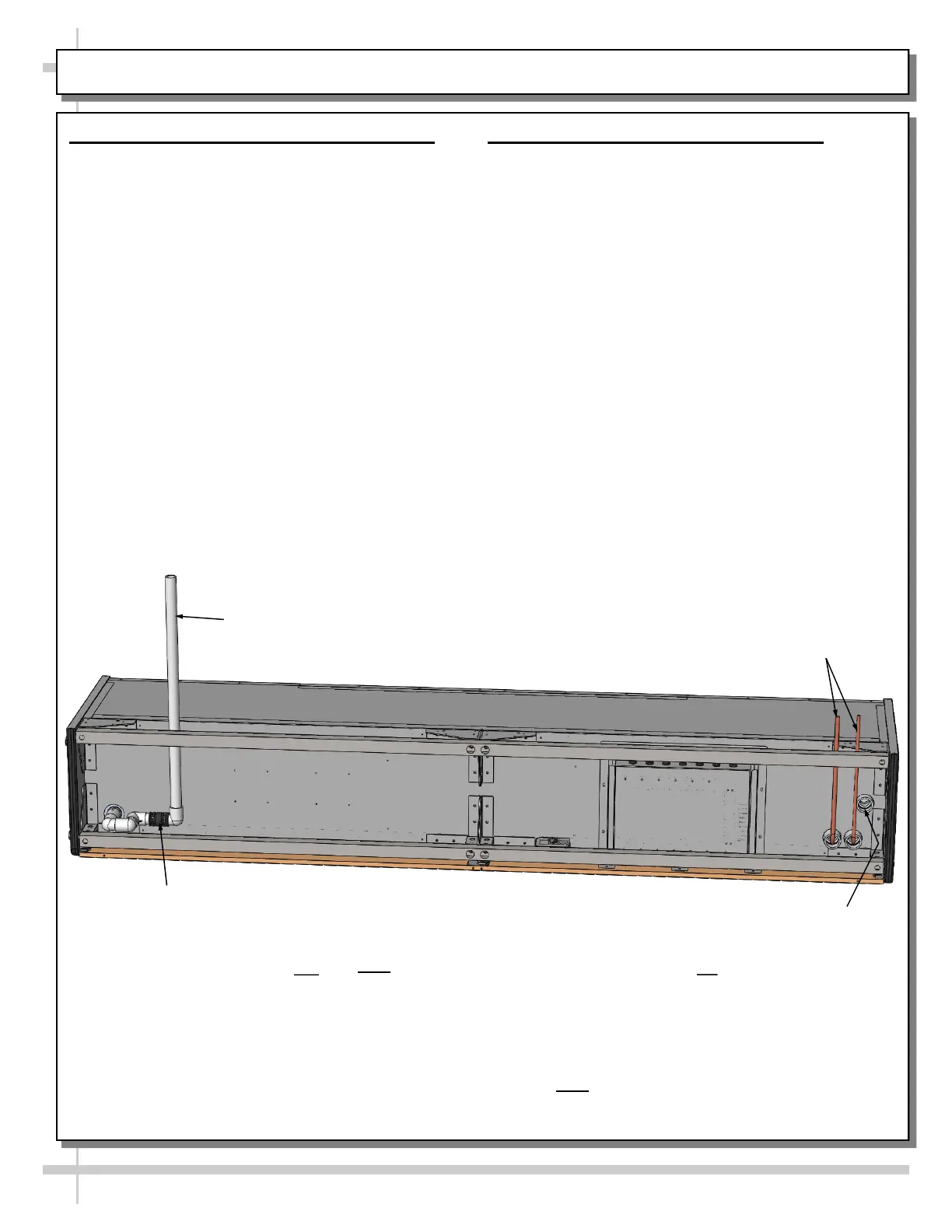

Case Rear

Case Front

Note: Model GJDSS8RLB is Shown Above.

See Next Page for Model GJDSS10RLB Layout.

Wire Raceway

Route

Refrigeration Line

Stub-Ups

Note: Illustration Above May Not Reflect Every

Feature or Option of Your Particular Case

Coupler

PVC Drain Tube

(To Be Attached

To Coupler)
