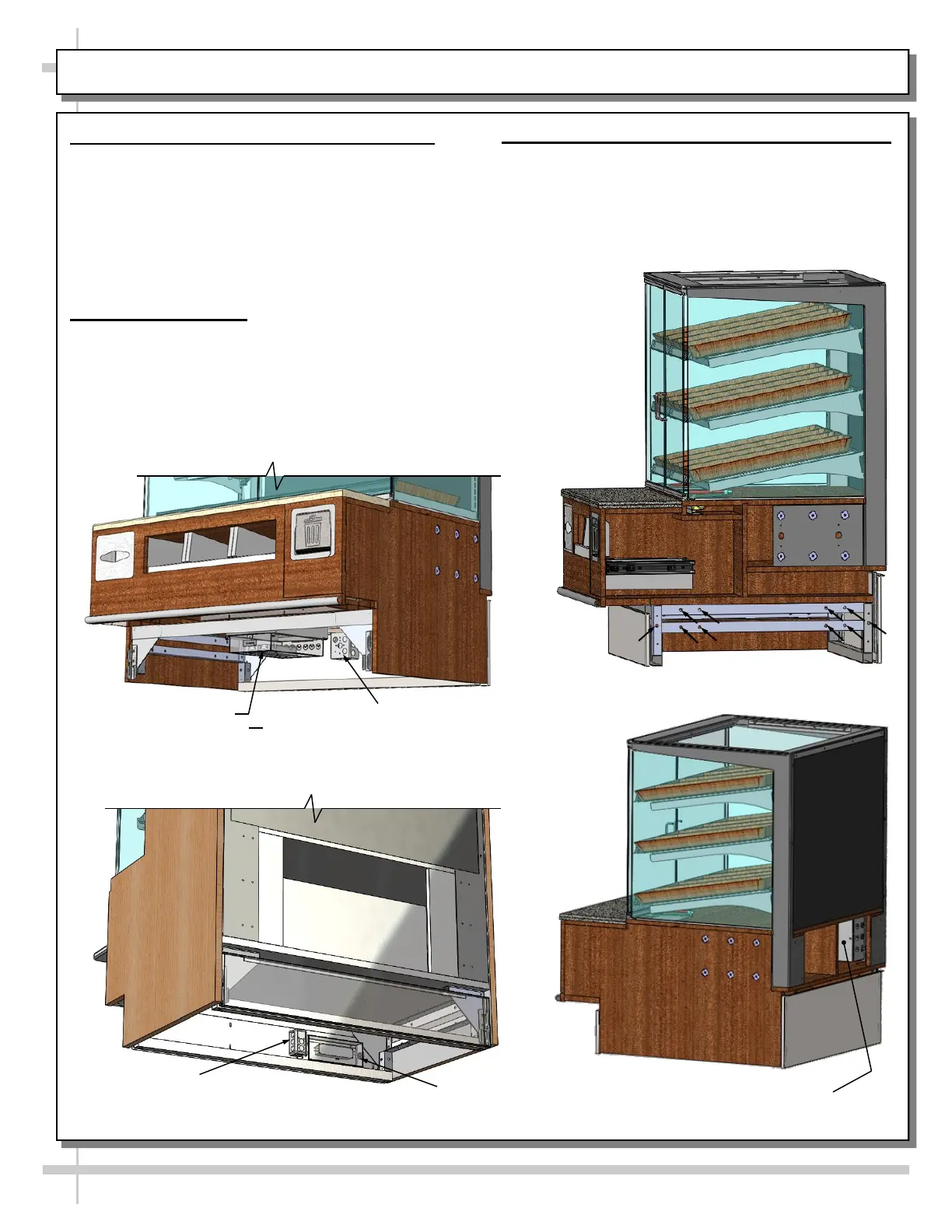

INSTALLATION, CONT’D: BOLTING UNITS TOGETHER / ELEC. RATINGS / FIELD ACCESS BOX

4. Bolting Units Together (Not All Cases)

Bolt units together at lower base as indicated.

• Remove front and rear panels (no screw removal

required) to drill clearance hole through end panel

and into unit it is being attached to.

• End panel is shown transparent for illustrative

purposes.

• Use SCC-supplied screws for adjoinment.

5. Electrical Ratings

• See SERIAL LABEL LOCATION &

INFORMATION LISTED / TECH INFO &

SERVICE section in this manual for instructions on

attaining electrical information for your case.

--- Model GHPF356LB ---

Field Access / Electrical Box

Model GHPF456LB.5882 Shown / Model GHPF456LB

Has Field Access Box In Same Location

Field Access Box

Ballast Box

6. Field Access Box / Ballast Box / 4 x 4 Box

• Field access box with ballasts (for LED lights)

may be either at rear or at underside of unit (as

shown in illustrations below).

--- Model GHPF456LB.6165 ---

Field Access Box

Ballast Box
