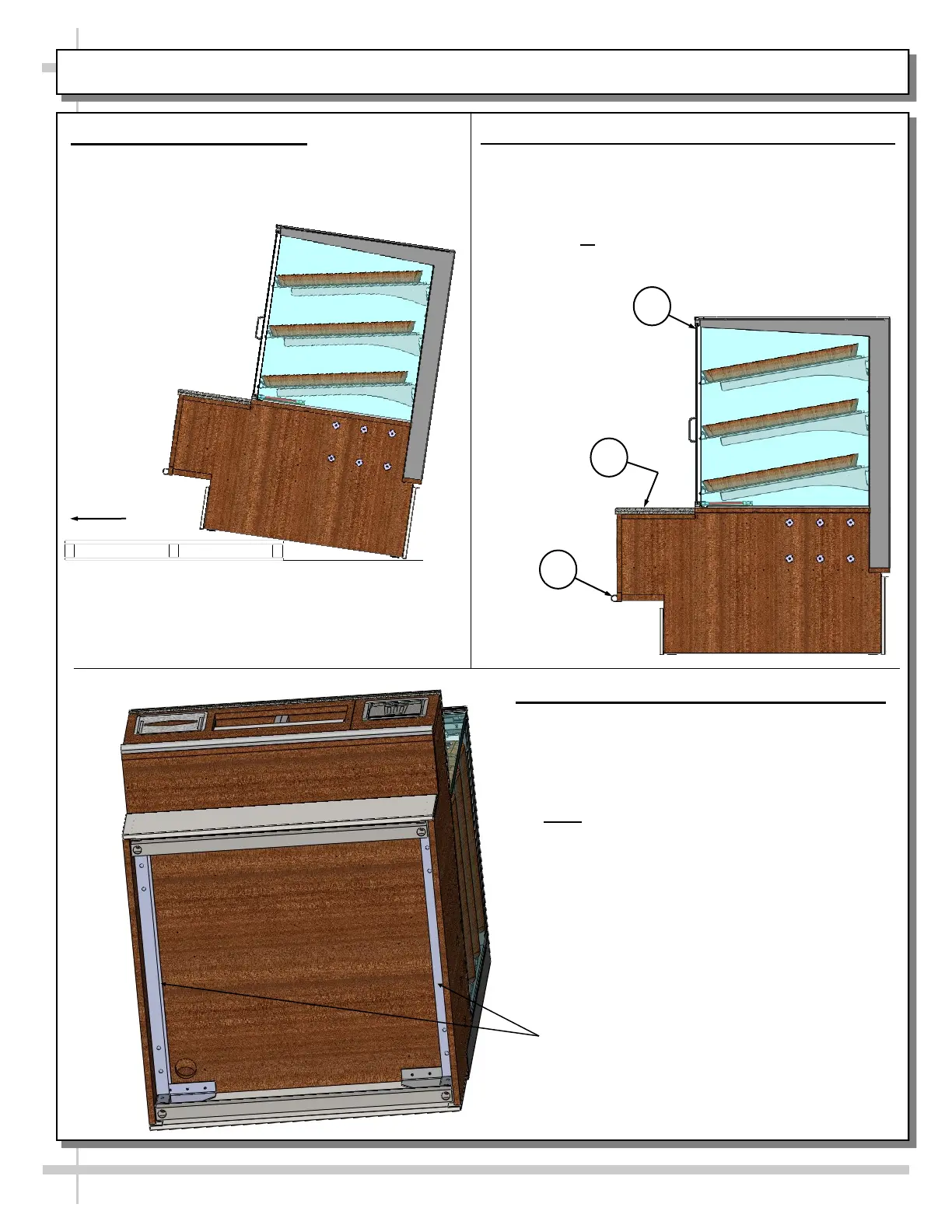

INSTALLATION: REMOVAL OF UNIT / POSITIONING CASE / FRAME SUPPORT RAILS

1. Remove Unit From Skid

Slide unit to rear of skid and tip backward off skid.

Case can be repositioned with pallet truck when front

lower panel is removed. Blocking may be necessary

to obtain adequate height.

Slide

Skid

Out

2. Position & Align Case Alongside Other Cases

• Before shimming, check that the case is in proper

position and, if required, aligned with adjoining

cases.

• This may require repositioning of the case you are

installing or the already positioned cases.

• Align multiple units carefully in areas A, B & C.

3. Frame Support Rails Must Be Shimmed

• Illustration at right shows case with frame

support rails.

• Shims are provided with all cases that have

frame support rails.

• Use shims to level case.

• Note: After case is in position, it must be

sealed to floor to prevent entry or leakage

of liquid or moisture.

Frame

Support

Rails
