1. Remove Front and Rear Panel

2. Disconnect Case From Skid

a. Remove shipping brackets that secure

casters to skid

b. Important! Case is shipped with levelers

in the DOWN position (for stability). To

prevent damage to case, all levelers must

be raised ALL THE WAY UP before

moving unit off skid and into position.

3. Remove Case From Skid

a. Important! No less than three (3) people are

required to remove case from skid. Remember,

ALWAYS lift your legs and NEVER your back

to avoid serious injury.

b. After levelers are raised, walk/slide case to edge of

skid.

c. Gently ease front edge of case off the skid and onto

the floor.

d. Tilt case forward and have an

assistant remove skid from under

case.

e. Ease back side of the case to the

floor.

Uncrating Best Practices Video |

Structural Concepts

4. Plug in Ethernet Cable

a. Slide case to the final position but leave room

behind case

b. Remove side panel (right side of case) by removing

the two (2) 6-point hex screws [A]

c. Plug Ethernet cable into wall jack.

d. With back panel still off, follow the Black power

cable on the left side (facing back of the case) to

find opening in bottom of shroud [B].

e. Feed Ethernet Cable through the opening [C].

f. Locate Ethernet Port to the right of the power cord

and plug in cable [D].

g. Replace Side & Rear Panel

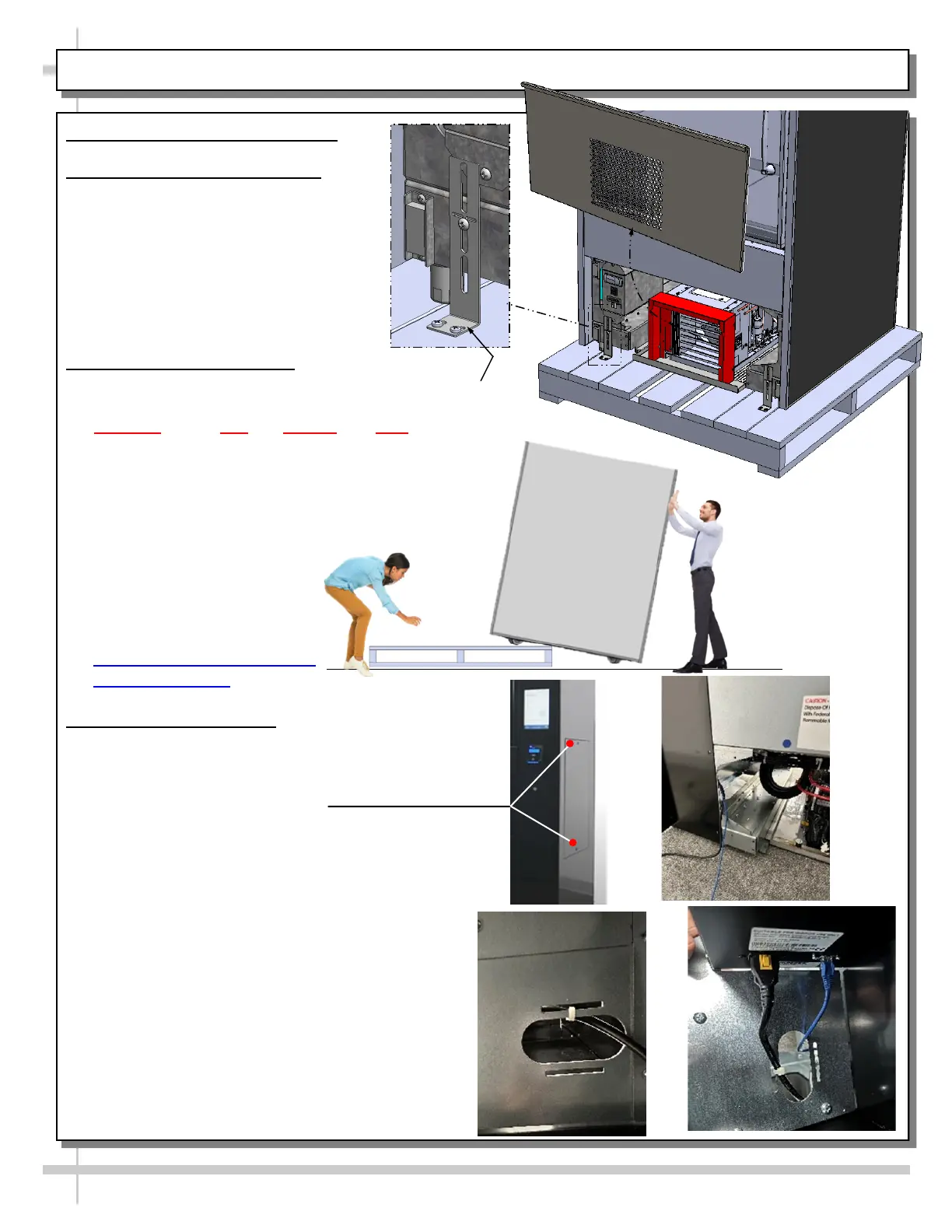

INSTALLATION: CASE REMOVAL FROM SKID / SETUP / ACTIVATION - PAGE 1 of 3

Shipping

Bracket (Typ.)

Front

Panel
