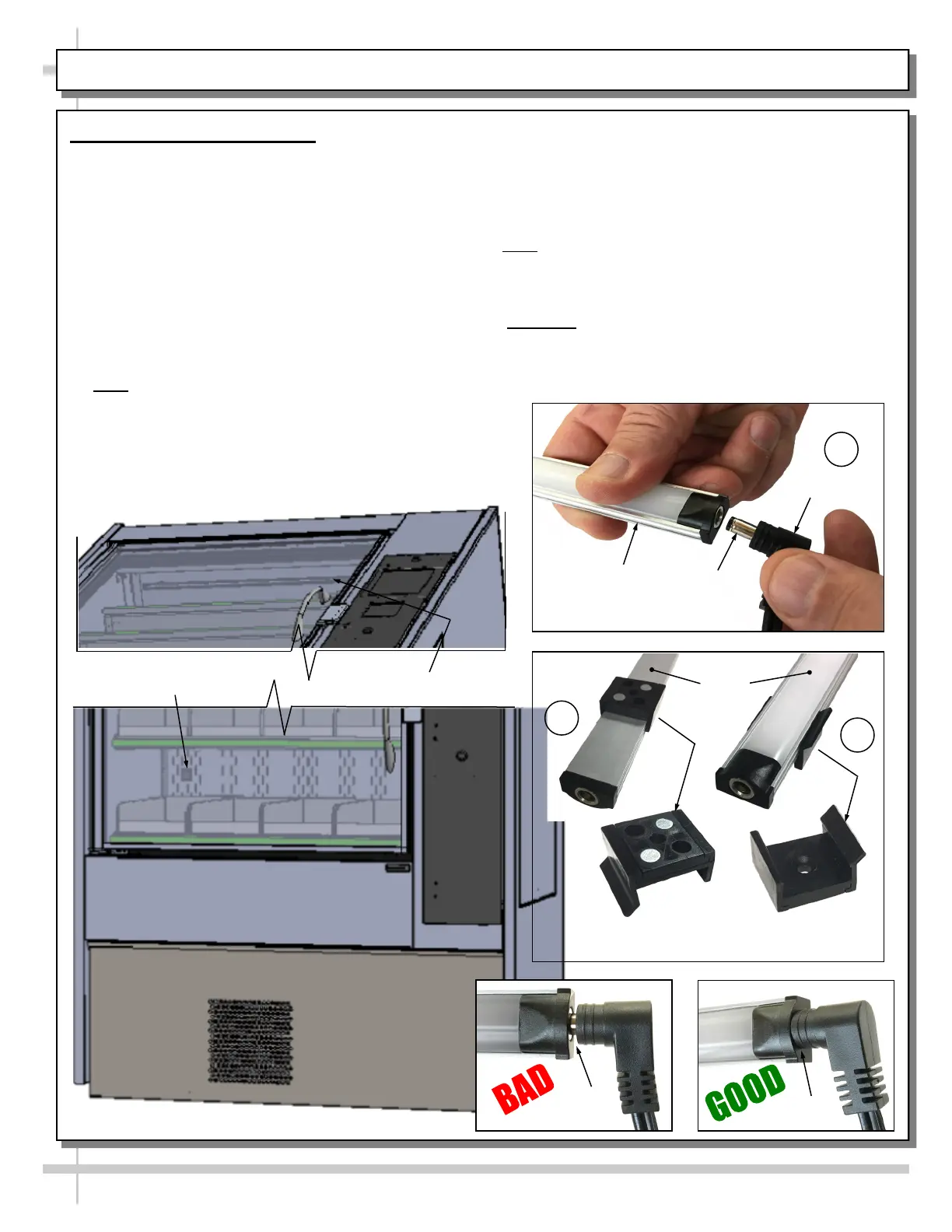

LED Light Fixture in Header

Removal of Faulty LED Light:

• Contact Structural Concepts’ Technical Service

Department for replacement LED light. See last

page of User Manual.

• Turn off LED light switch.

• To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light assembly

(with its magnetic mounting clips). Pull

downward and off its shelf (or header).

C. Remove magnetic mounting clips from LED

light by pressing against flange part of clip with

thumb.

>> Note: Mounting clips MAY be riveted to header.

Simply remove LED light from mounting clips by

pressing against flange part of clips with thumb.

TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL) - PAGE 4 of 4

Replacement of LED light:

• Attach magnetic mounting clips onto LED light.

• Adjust magnetic mounting clips so they are equally

spaced on LED light.

• Reattach LED light to header.

• Position properly in shelf/header.

>> Note: If mounting clips are riveted to header, attach by

placing LED light in base of clip and then snapping into

clip at FLANGE SIDE.

• Press plug’s barrel-shaped insert deep into LED light.

• Important: If plug is not inserted ALL THE WAY IN the

LED light’s orifice, the light may not energize. See

“BAD” vs. “GOOD” insertion illustrations below.

• Turn LED light switch back on.

--- Lower Case Area Shown Above ---

Magnetic Mounting

Clip View #2

LED

Lights

Plug

Barrel

Shaped

Insert

LED

Light

Magnetic Mounting

Clip View #1

No Gap

Gap

LED Light Switch

LED Light

--- Upper Case Area Shown Below ---
