Radio Replacement Kit for select
2014-2019 Silverado/Sierra Trucks
Stinger ix212
HORIZON12
© 2025 Stinger
Page 7
Rev: v1
Date:051325

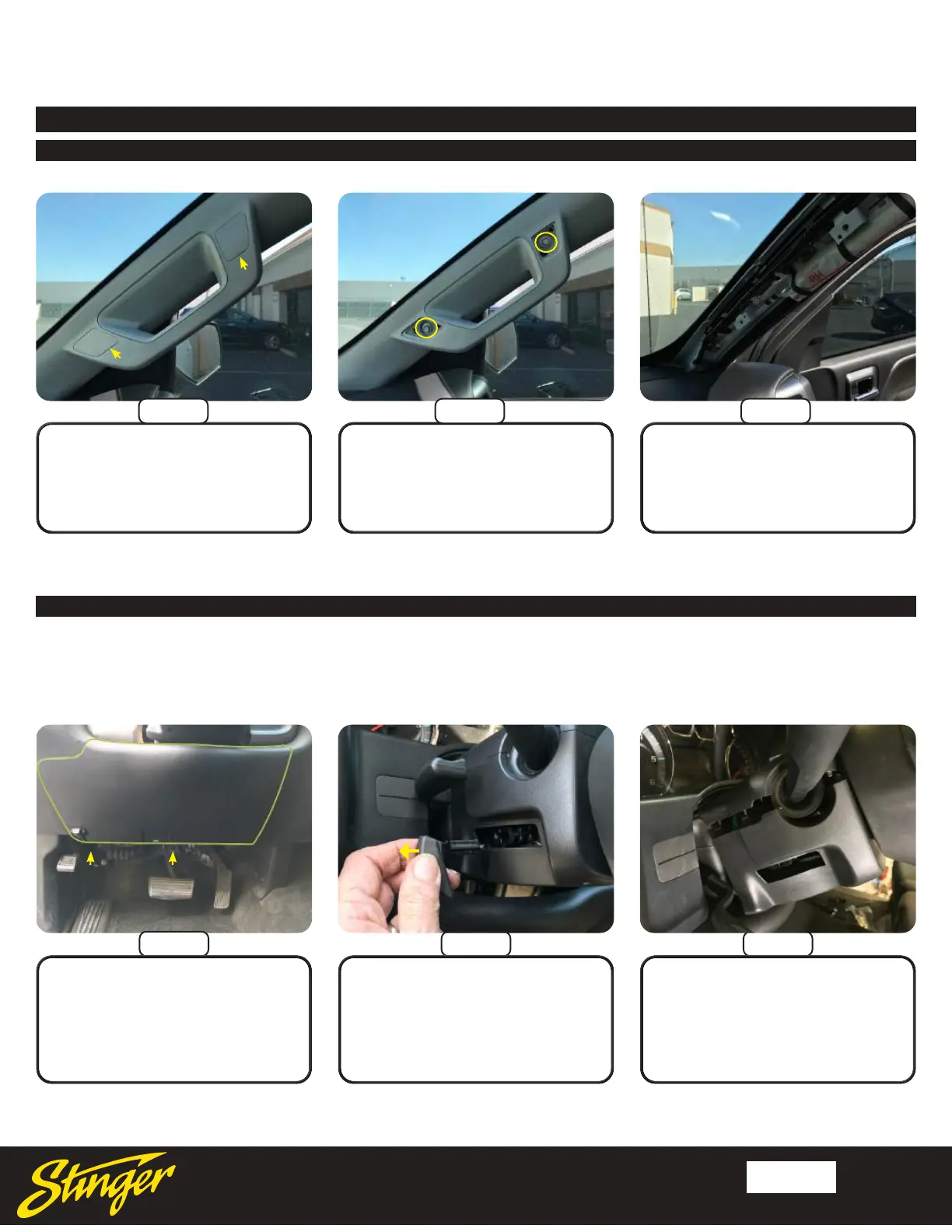

Part Four: A Pillar Removal
Pull the trim panel to release the
retaining clips and remove.
Remove the two 10mm bolts.
Remove the inserts covering the
bolts on the passenger A pillar
handle.
Part Five: Lower Steering Column Cover Removal (Optional)
Step 3Step 2
Pull downward on the lower
cover on both sides to release
the locking tabs and remove the
lower cover.
Remove the plastic handle from
the steering wheel tilt lever by
pulling outward, towards the
driver’s door on the handle. A trim
tool may also be used if unable to
remove by hand.
If the vehicle is equipped with IO3, IO4, IO5 or IO6 radio AND steering wheel controls, follow the steps
below to remove the lower steering column cover. For IOB vehicles or no steering wheel controls, proceed
to Section Two on next page.
Step 1
Remove the two Torx T15 screws
from the bottom edge of knee
panel below the steering column.
Pull outward to remove the panel
and lay carefully on the oor board.
Section 1: Disassembly (Continued)
