SRX-GM14128

Radio Replacement Kit for select

2014-2019 Silverado/Sierra Trucks

Stinger ix212

HORIZON12

© 2025 Stinger

Page 5

Rev: v1

Date:051325

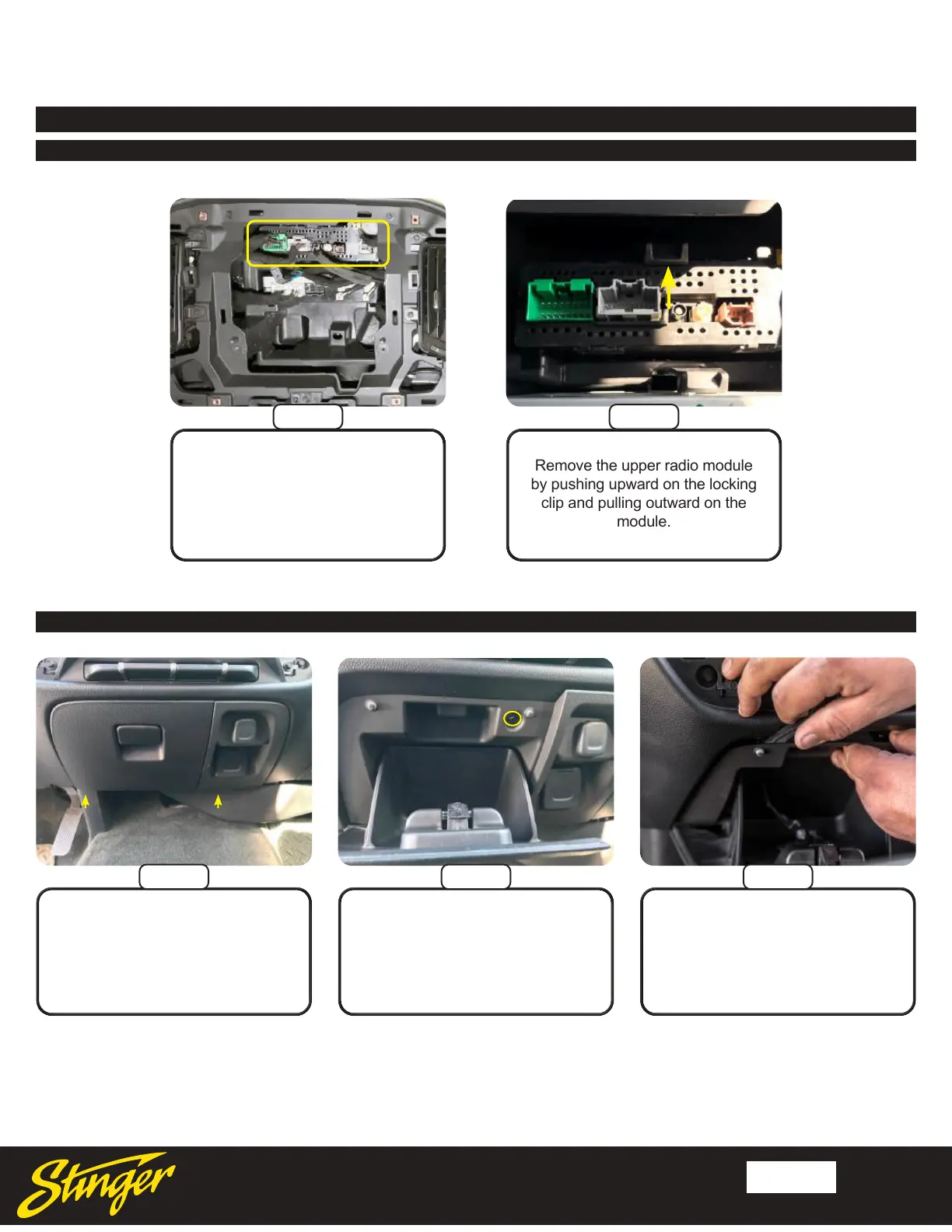

Part One: Center Dash Disassembly (Continued)

Remove the upper radio module

by pushing upward on the locking

clip and pulling outward on the

module.

Using a panel tool or similar,

release the top retaining clips and

remove the storage assembly.

Remove the upper Torx T15

screw inside the storage

compartment.

Remove the two Torx T15 screws

from the bottom edge of the

storage compartment.

Part Two: Lower Storage Compartment Removal

Section 1: Disassembly (Continued)

Step 5

Unplug all connectors and cables

from the upper radio module

shown.

Step 4

Step 1

Step 2 Step 3
