SRX-GM14128
Radio Replacement Kit for select
2014-2019 Silverado/Sierra Trucks
Stinger ix212
HORIZON12
© 2025 Stinger
Page 15
Rev: v1
Date:051325

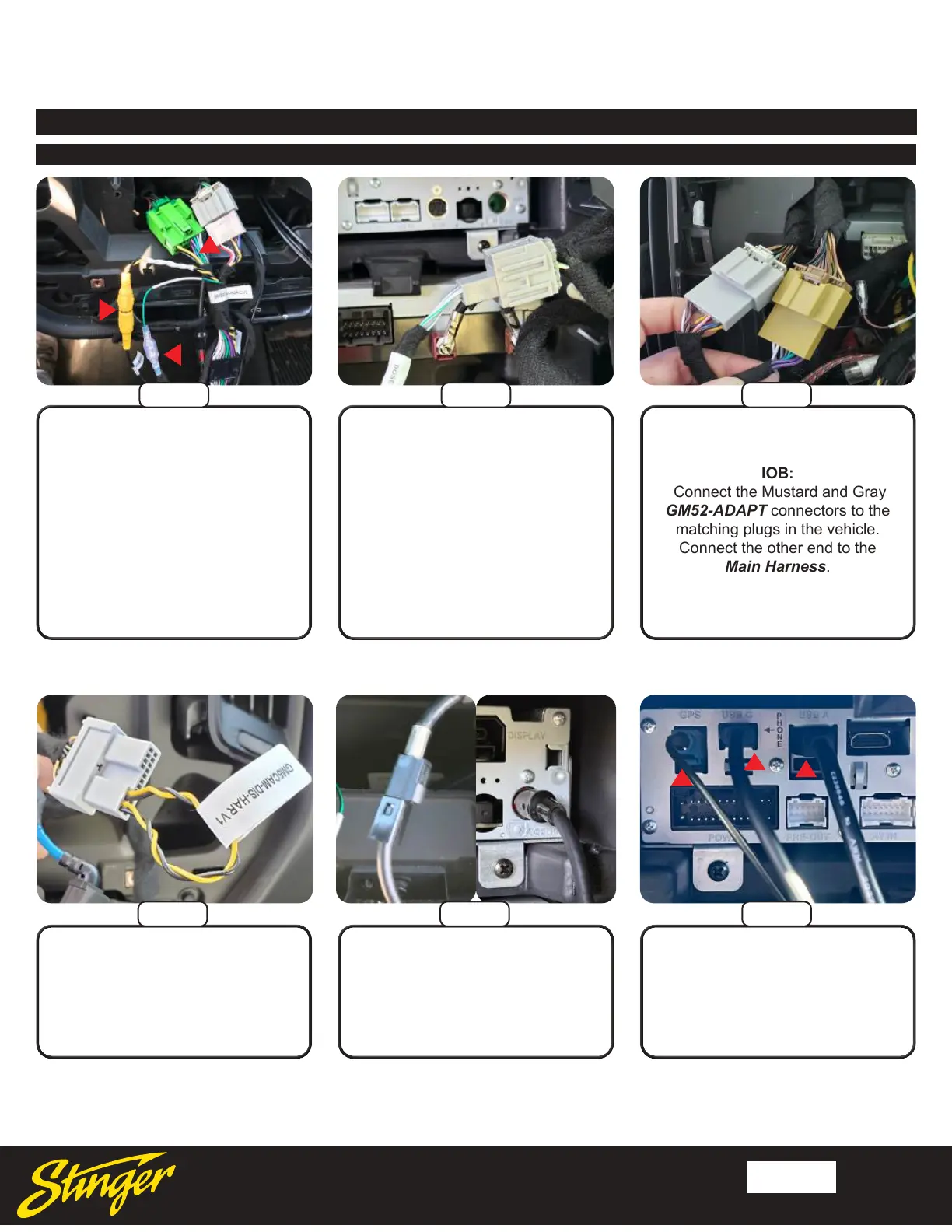

IO3, IO4, IO5, IO6: Connect the
Green and Gray Main Harness
(SRK-GM14HX-HAR) (1)
connectors to the matching plugs
in the vehicle.
IO4, IO5, IO6: If equipped,
connect the Yellow RCA from the
CAM-GM51-HAR to the “CAM-
GM51 INPUT” (2) and connect
the wire from the GM5LIN-SW-
HAR to the “SWC INPUT” (3).
IOB:
Connect the Mustard and Gray
GM52-ADAPT connectors to the
matching plugs in the vehicle.
Connect the other end to the
Main Harness.
Part Two: In-Vehicle Harness and Cabling Connections
1
3
2
Step 1A
Step 1B Step 1C
Connect the GPS Antenna (1) and
the two USB cables (2) to the Radio
Module. The USB-C will handle
Apple CarPlay and Android Auto
Connect the AM/FM Antenna
Adapter (BAA22) to the black
factory antenna cable.
Plug the other end of the BAA22
into the “ANT” port on the Radio
Module.
1
2
Step 4Step 3
2
Step 2
2018-19 IOB Only:
Plug the 20 pin harness that was
removed from the factory display
into the GM5CAM-DIS-HAR.
IO5 or IO6:
Connect the 8 pin gray connector
from the Main Harness to the
matching 8 pin gray connector
in the vehicle that was removed
from the OEM radio.
Section 6: Radio Unit Installation (Continued)
