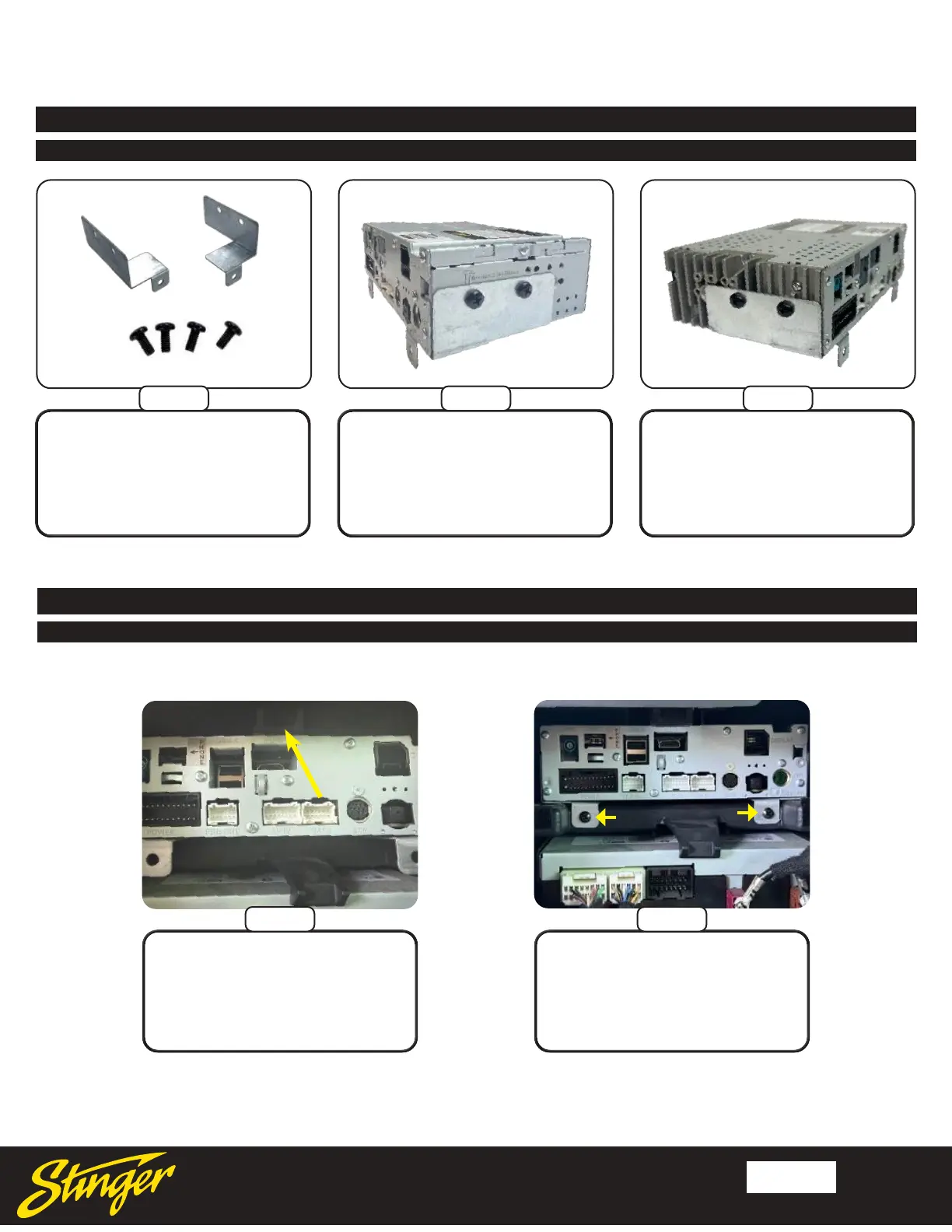

Section 5: Radio Module Preparation

Part One: Radio Module Side Brackets

Using two M5x10 screws attach

one side bracket as shown

above.

Locate the two Side Mounting

Brackets and four M5x10 screws.

Using two M5x10 screws attach

the other side bracket as shown

above.

Step 2 Step 3Step 1

Slide the ix212 Radio Module

into the factory radio opening.

You may need to push the

retaining clip up to slide the radio

all the way in.

Once the bracket tabs contact the

sub dash, secure with supplied #8

x 1/2” screws.
