SRX-GM14128

Radio Replacement Kit for select

2014-2019 Silverado/Sierra Trucks

Stinger ix212

HORIZON12

© 2025 Stinger

Page 12

Rev: v1

Date:051325

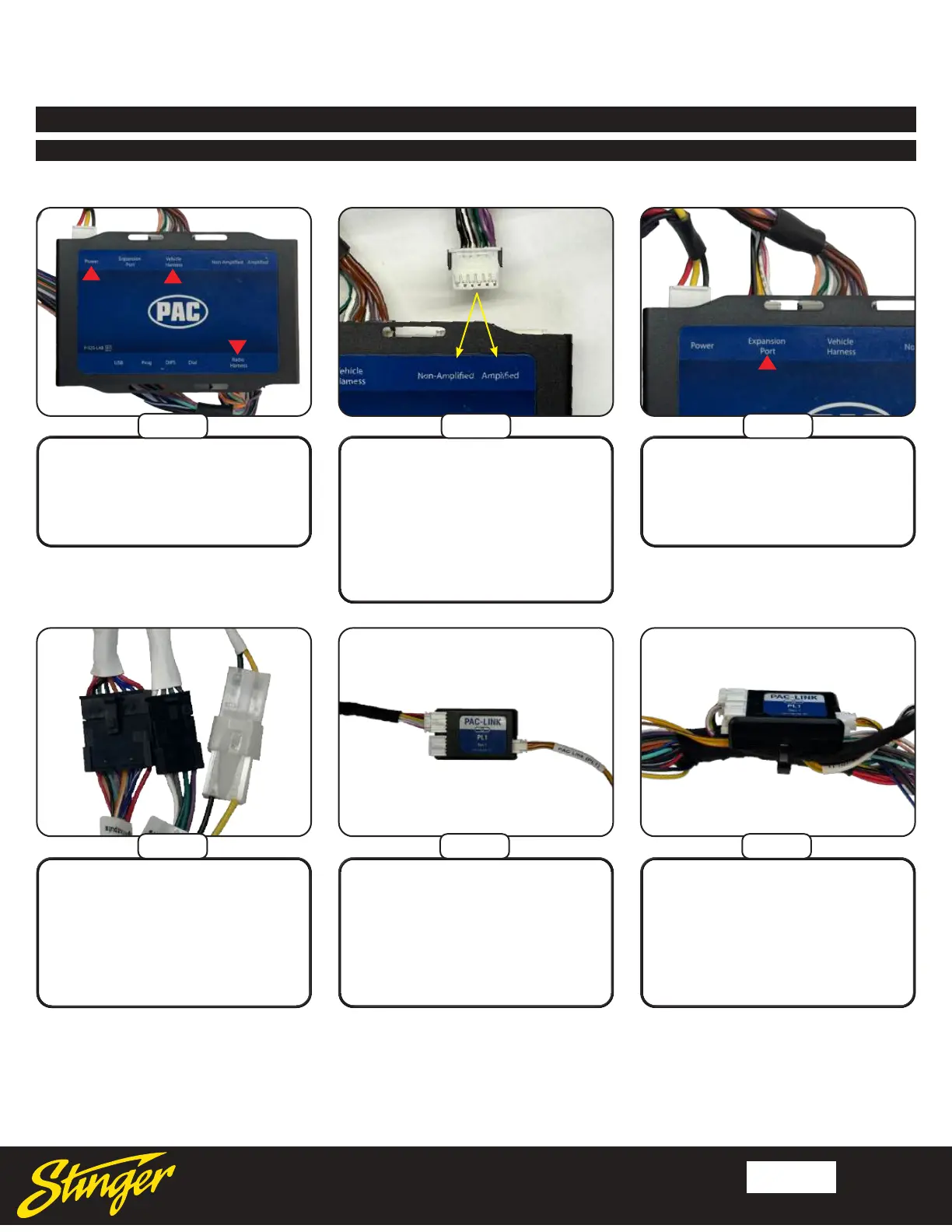

Section 3: Interface and Main Harness Connections and Preparation

Part One: RP5-GM51 Radio Interface Connections

Connect the 10 Pin PAC Link

Cable (10P-2-10P-6-HAR) to the

“Expansion Port.”

For the speaker output

connection, select “Amplied”

if your vehicle is equipped with

a factory BOSE system or

aftermarket ampliers. Select

“Non-Amplied” if it is not

equipped with BOSE and running

the factory audio system.

From the Main Harness (SRK-

GM14HX-HAR), connect the “Power”

(1), “Vehicle Harness” (2)and “Radio

Harness” (3) connections to the

GM6A-SRK module

1

2

3

4

Step 1 Step 2

Step 3

Connect the 2 pin, 8 pin and 14

pin connectors from the Main

Harness Adapter (SR-SRK-

ADAPT-IX2XX) to the Main

Harness (SRK-GM14HX-HAR).

Connect the other end of the 10

pin PAC Link Cable to the PAC

Link Module (PL1).From the

Main Harness Adapter (SR-

SRK-ADAPT-IX2XX) connect the

3 pin connector labeled “PAC Link

(PL1)” to the PAC Link Module.

Bundle any excess wire and zip tie

the PAC Link Module to the Main

Harness.

Step 4 Step 5 Step 6
