SRX-GM14128
Radio Replacement Kit for select
2014-2019 Silverado/Sierra Trucks
Stinger ix212
HORIZON12
© 2025 Stinger
Page 11
Rev: v1
Date:051325

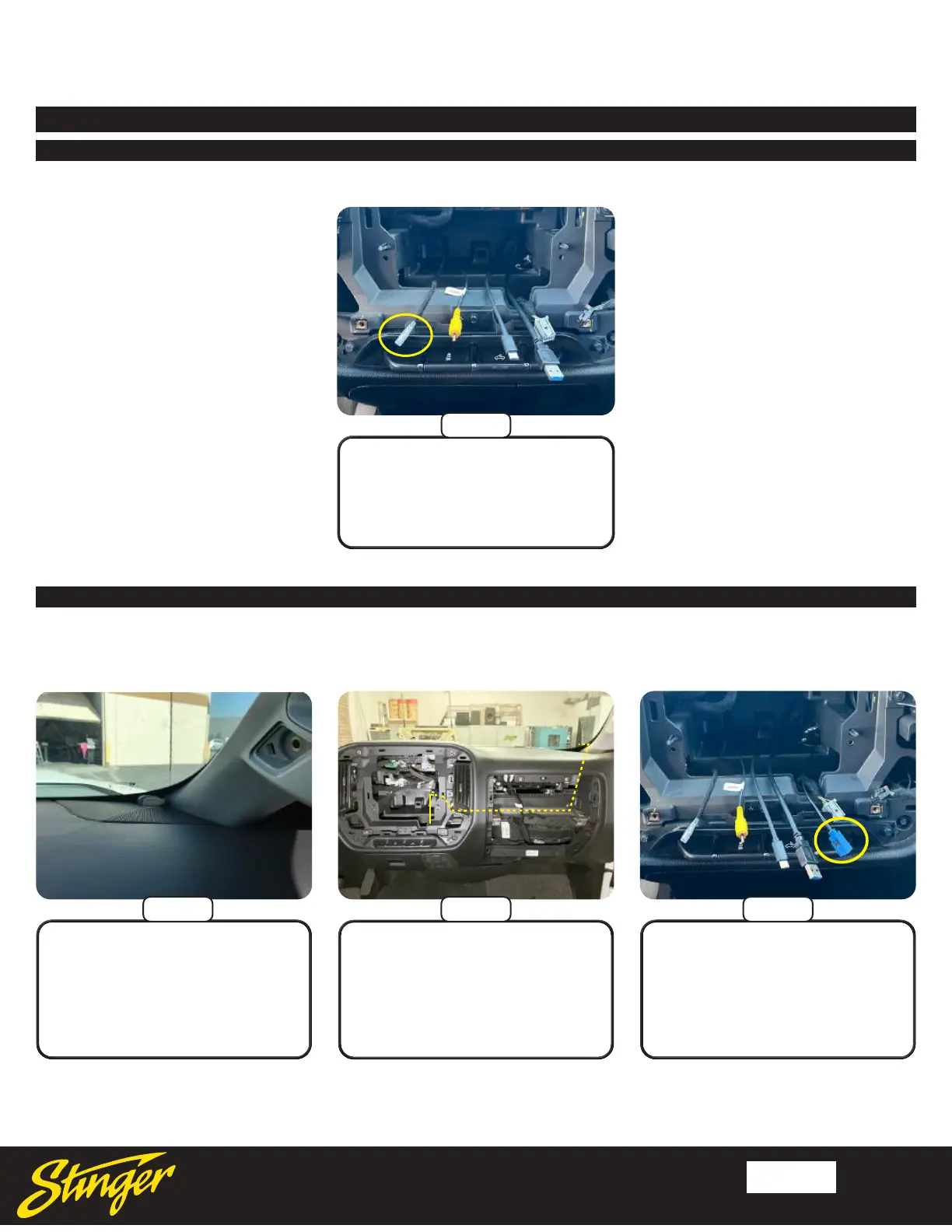

Route the steering wheel control
lead into the CD/DVD area
through the left side opening in the
rear of the cavity.
Part Three: Steering Wheel Control (SWC) Retention Harness (Continued)
Part Four: GPS Antenna
The GPS antenna is required for proper operation of Apple CarPlay and Android Auto, in addition to the optional GPS if
installed. The GPS antenna is included in the ix212 hardware.
Section 2: In-Vehicle Harness Connections and Preparation (Continued)
Continue routing the GPS cable
across the inner dash towards the
radio opening securing with zip ties.
Position the GPS Antenna and
route the antenna cable down
into the glove box area. Replace
the A pillar panel and ensure the
cable does not interfere or get
pinched.
Route the GPS cable into the CD/
DVD area through the right side
opening at the rear of the cavity.
Step 4
Step 1
Step 2 Step 3
