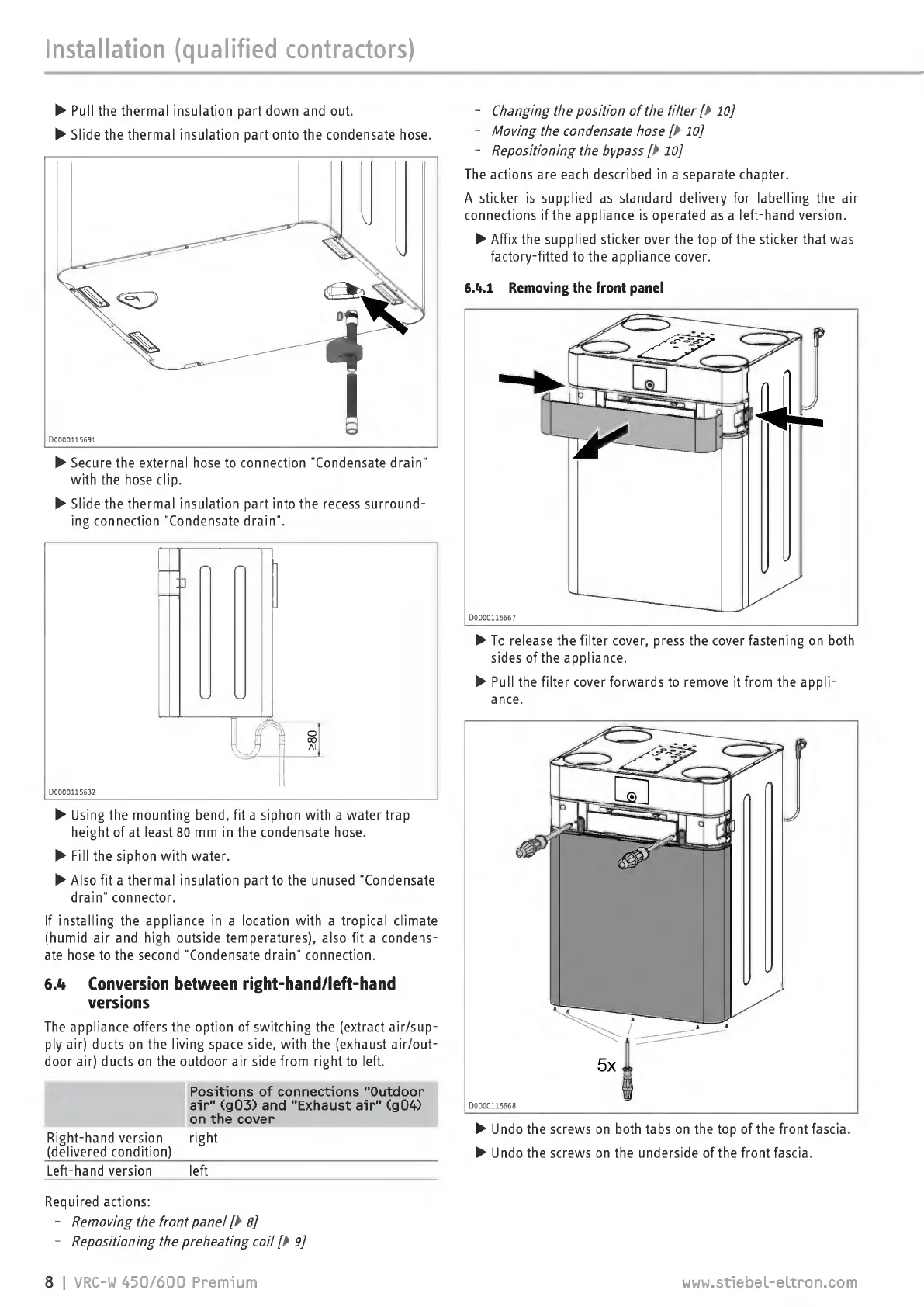

Installation

(qualified

contractors)

►

Pull

the

thermal

insulation

part

down

and

out.

►

Slide

the

thermal

insulation

part

onto

the

condensate

hose.

►

Secure

the

external

hose

to

connection

"Condensate

drain"

with

the

hose

clip.

►

Slide

the

thermal

insulation

part

into

the

recess

surround¬

ing

connection

"Condensate

drain".

D0000115632

►

Using

the

mounting

bend,

fit

a

siphon

with

a

water

trap

height

of

at

least

80

mm

in

the

condensate

hose.

►

Fill

the

siphon

with

water.

►

Also

fit

a

thermal

insulation

part

to

the

unused

"Condensate

drain"

connector.

If

installing

the

appliance

in

a

location

with

a tropical

climate

(humid

air

and

high

outside

temperatures),

also

fit

a

condens¬

ate

hose

to

the

second

"Condensate

drain"

connection.

6.4

Conversion

between

right-hand/left-hand

versions

The

appliance

offers

the

option

of

switching

the

(extract

air/sup-

ply

air)

ducts

on

the

living

space

side,

with

the

(exhaust

air/out-

door

air)

ducts

on

the

outdoor

air

side

from

right

to

left.

Positions

of

connections

"Outdoor

air"

(g03)

and

"Exhaust

air"

(g04)

on

the

cover

Right-hand

version

right

(delivered

condition)

_

Left-hand

version

left

Required

actions:

-

Removing

the

front

panel

ƒ>

8]

-

Repositioning

the

preheating

coil

ƒ>

9]

-

Changing

the

position

of

the

filter

ƒ>

10]

-

Moving

the

condensate

hose

[>

10]

-

Repositioning

the

bypass

[>

10]

The

actions

are

each

described

in

a

separate

chapter.

A

sticker

is

supplied

as

standard

delivery

for

labelling

the

air

connections

if

the

appliance

is

operated

as

a

left-hand

version.

►

Affix

the

supplied

sticker

over

the

top

of

the

sticker

that

was

factory-fitted

to

the

appliance

cover.

6.4.1

Removing

the

front

panel

D0000115667

►

To

release

the

filter

cover,

press

the

cover

fastening

on

both

sides

of

the

appliance.

►

Pull

the

filter

cover

forwards

to

remove

it

from

the

appli¬

ance.

►

Undo

the

screws

on

both

tabs

on

the

top

of

the

front

fascia.

►

Undo

the

screws

on

the

underside

of

the

front

fascia.

8

I

VRC-W

450/600

Premium

www.stiebel-eltron.com
