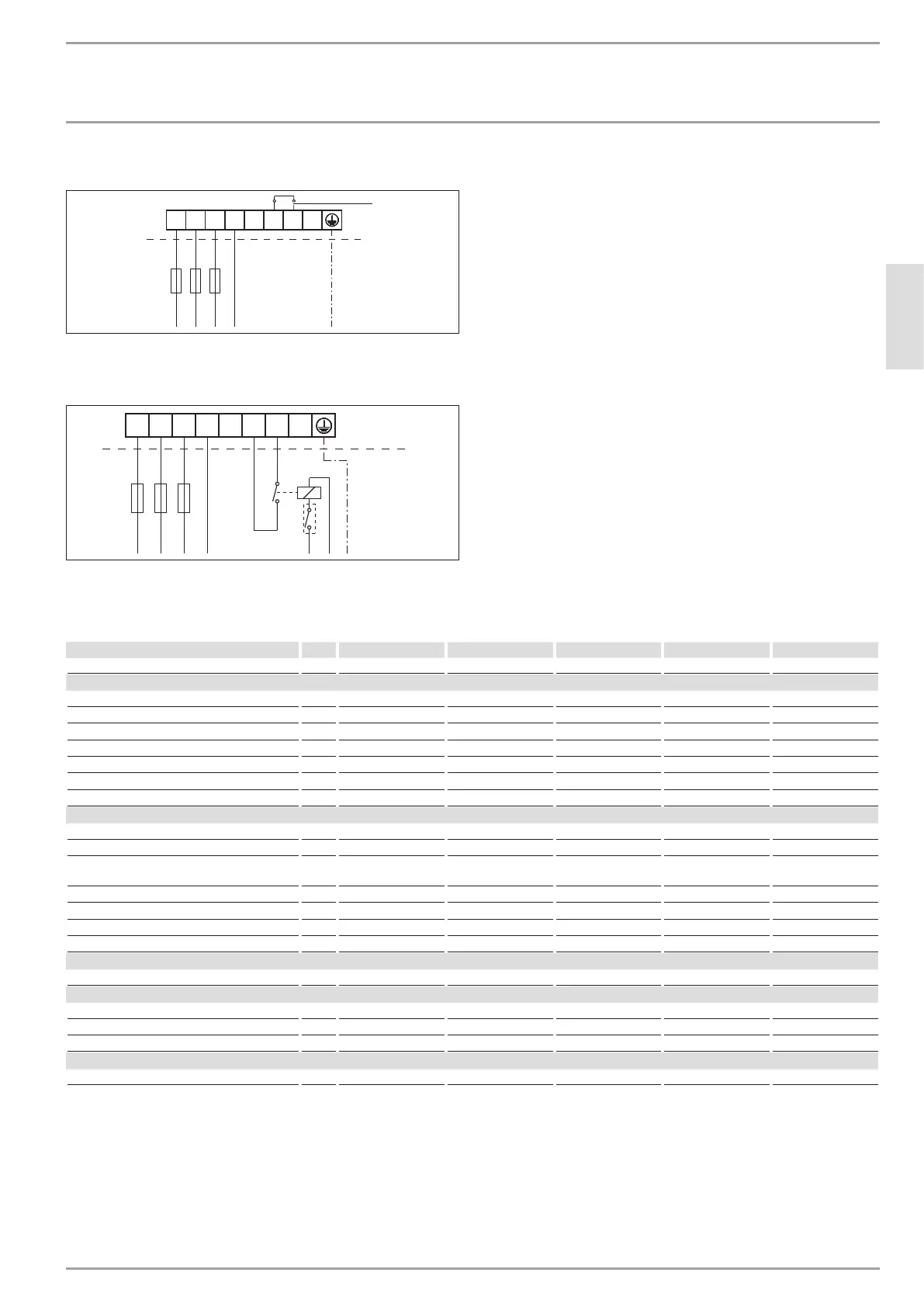

Je bekijkt pagina 25 van 124
ENGLISH
www.stiebel-eltron.com FCR 28 | 25
INSTALLATION
Specication
14.3 Specification table
FCR 28/120 FCR 28/120 CrNi FCR 28/120 E FCR 28/180 FCR 28/180 E
071332 234503 000694 071333 000695
Electrical data
Connected load ~ 400V kW 6/12 6/12 12 9/18 18
Connected load ~ 380V kW 10,8 16,4
Rated voltage V 400 400 400 400 400
Phases 3/N/PE 3/N/PE 3/PE 3/N/PE 3/PE
Frequency Hz 50 50 50 50 50
Single circuit operating mode X X X X X
Dual circuit operating mode X X X
Application limits
Temperature setting range °C 35-85 35-85 35-85 35-85 35-85
Max. permissible pressure MPa 1,0 1,0 1,0 1,0 1,0
For use in DHW cylinders,
buffer cylinders
DHW cylinders,
buffer cylinders
DHW cylinders,
buffer cylinders
DHW cylinders,
buffer cylinders
DHW cylinders,
buffer cylinders
Volume range of the cylinder l 600-1500 600-1500 600-1500 600-1500 600-1500
Volume above the heating element (max.) l 1000 1000 1000 1000 1000
Installation position Horizontal Horizontal Horizontal Horizontal Horizontal
Minimum cylinder diameter mm 450 450 450 450 450
Versions
IP rating IP 24 IP 24 IP 24 IP 24 IP 24
Dimensions
Flange external diameter mm 280 280 280 280 280
Immersion depth mm 450 450 325 450 325
Torque Nm 80 80 80 80 80
Weights
Weight kg 12 12 12 13 14
Without power-OFF contact:
L1 L2 L3 N 1 2 3 4
D00000117556
D0000117556
1
1 Jumper
With power-OFF contact:
L1 L2 L3 N 1 2 3 4
D0000117771
D0000117771
1 Power-OFF contact, installed by the qualified contractor
