24 | FCR 28 www.stiebel-eltron.com
INSTALLATION
Specication

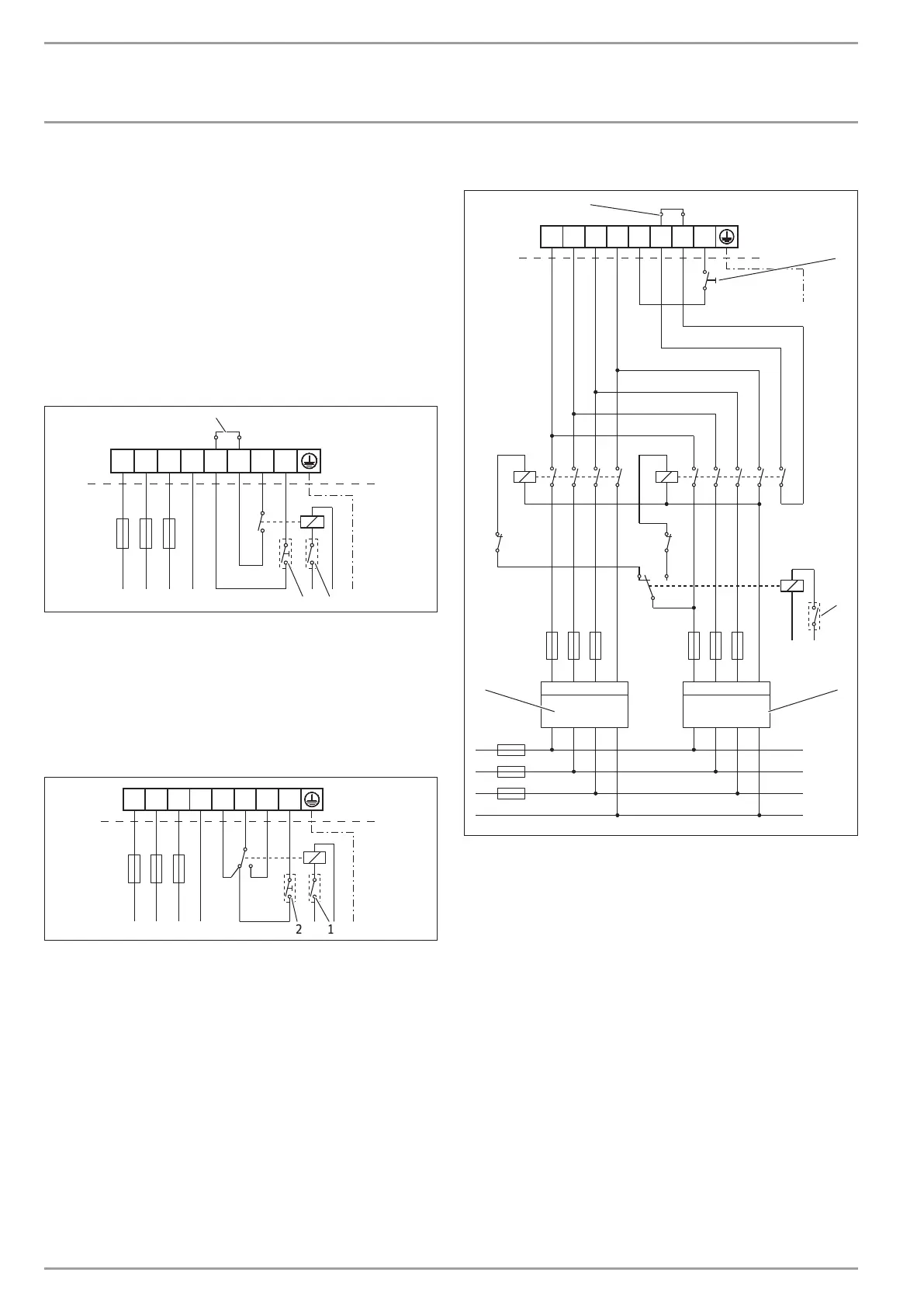

Connection example for dual circuit operation
FCR 28/120, part number 071332
FCR 28/120 CrNi, part number 234503
6/12kW Circuit breaker I
12/12kW Circuit breaker II
FCR 28/180, part number 071333
9/18kW Circuit breaker I
18/18kW Circuit breaker II
Version 1:
L1 L2 L3 N 1 2 3 4
D0000117769
D0000117769
12
3
1 Power-OFF contact, installed by the qualified contractor
2 Button for controlling the rapid heat-up function remotely,
installed by the qualified contractor
3 Jumper
During the economy tariff period (power-OFF), it is possible to
switch on the rapid heat-up function (peak tariff).
Version 2:
L1 L2 L3 N 1 2 3 4
D0000117755
D0000117555
12
1 Power-OFF contact, installed by the qualified contractor
2 Button for controlling the rapid heat-up function remotely,
installed by the qualified contractor
During the economy tariff period (power-OFF), the rapid heat-up
function (peak tariff) can only be switched on if the circuit breaker
is in positionII.
Connection example for dual meter reading
L1 L2 L3 N 1 2 3 4
K1 K2
K2 K1
D0000117770
D0000117770
1
34
5
2
K1 Contactor 1, installed by the qualified contractor
K2 Contactor 2, installed by the qualified contractor
1 Button for controlling the rapid heat-up function remotely,
installed by the qualified contractor
2 Power-OFF contact, installed by the qualified contractor
3 Off-peak tariff
4 Peak tariff
5 Jumper
Connection example for single circuit operation
FCR 28/120, part number 071332
FCR 28/120 CrNi, part number 234503
6kW Circuit breaker I
12kW Circuit breaker II
FCR 28/180, part number 071333
9kW Circuit breaker I
18kW Circuit breaker II
