Settings

www.stiebel-eltron.com CNS Plus LCD | 21

u To switch on the programming unit, press "Standby".

ð The default display appears.

u To put the programming unit and the heating appliance

into standby, press "Standby".

ð The display shows "- - - -".

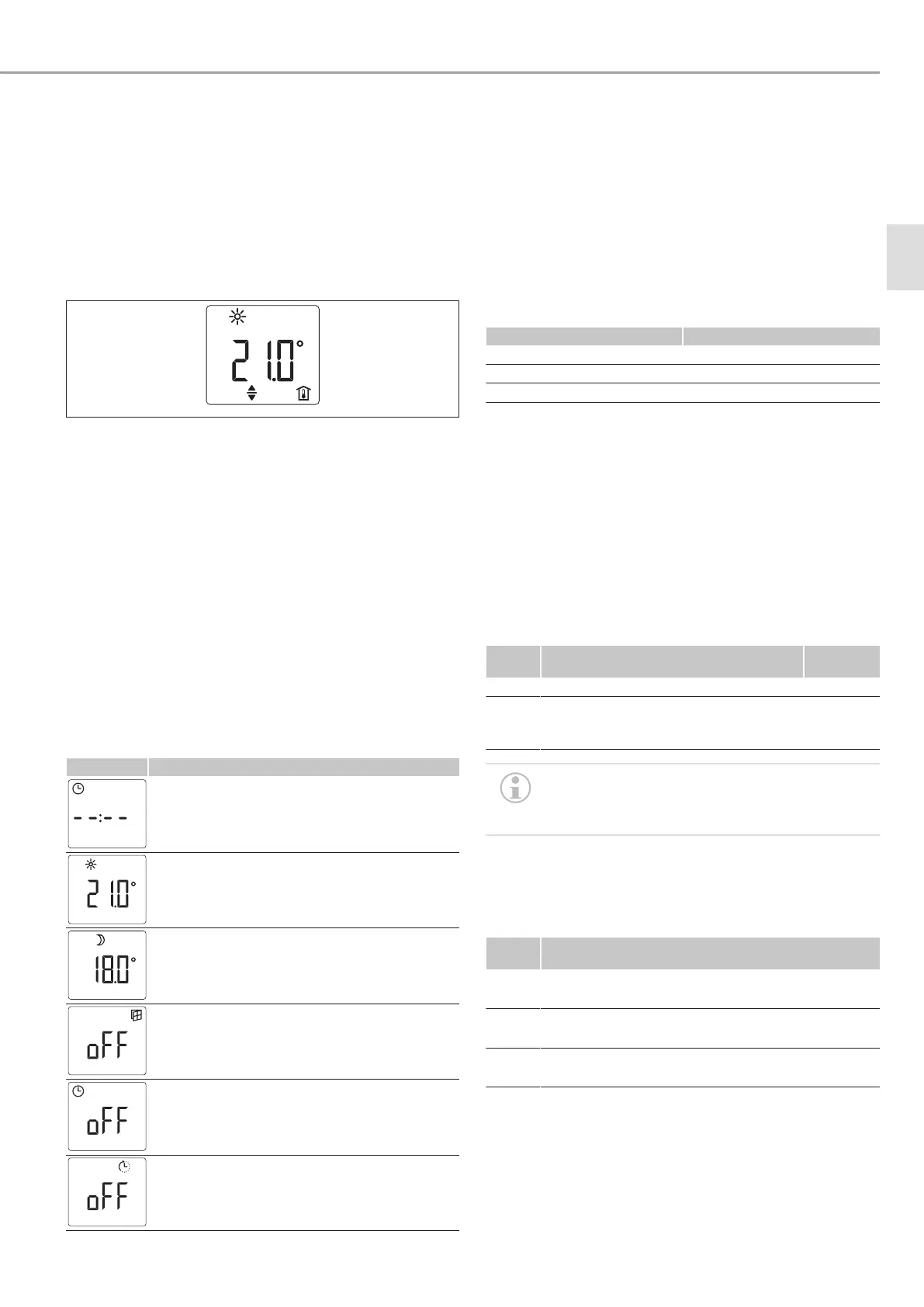

8 Settings

8.1 Default display

D0000072134

The default display is displayed continuously. If no user input is

made for more than 20seconds while in the menu, the appli-

ance automatically switches to the standard display.

The default display shows the current set room temperature as

well as the "Editable parameter" symbol. The "+" and "–" but-

tons can be used to change the set room temperature.

If the set room temperature corresponds to one of the values set

for the comfort or setback temperature, the symbol for the cor-

responding operating mode (comfort mode, setback mode) ap-

pears in the menu bar.

The set room temperature can be changed manually when a

time program is active. The new set room temperature is main-

tained until the next programmed switching point is reached.

8.2 Standard menu

u To call up the standard menu, press "Menu".

Menu items

Display Description

To select the day of the week and time:

Days of the week: 1 = Monday to 7 = Sunday

To set the comfort temperature:

The comfort temperature must be set at least

0.5°C higher than the setback temperature.

To set the setback temperature:

The setback temperature must be set at least

0.5°C lower than the comfort temperature.

To switch "Window-open detection" function on

and off

Select or deactivate (off) the time program (Pro1,

Pro2, Pro3)

To switch "Adaptive start" function on and off

Changing the menu item settings

u Call up the required menu item using "+" and "–".

u Press "OK".

ð The "Editable parameter" symbol appears.

u Change the menu item setting using "+" and "–".

u To save the setting, press "OK".

u To call up the standard menu, press "Menu".

ð The default display appears.

8.3 Configuration menu

Display Description

I1-I2 Actual values

Pro1-Pro3 Time programs

P1-P5 Parameter

Calling up actual values, programming time programs and

setting parameters

u To access the configuration menu, press and hold the

"Menu" button for about 3seconds.

ð The actual value I1 is displayed.

u Use "+" and "–" to switch between the individual actual val-

ues, time programs and parameters.

u To exit the configuration menu, press "Menu".

ð The default display appears.

8.3.1 Actual values

Dis-

play

Description Unit

I1 Actual room temperature [°C] | [°F]

I2 Relative heating time

(The counter can be reset via parameter

P5)

[h]

The counter for relative heating time (I2) counts in

full hours how long the appliance heats for. When

the appliance is switched off, any heating phase of

less than 60minutes is not recorded.

8.3.2 Setting time programs (weekly timer)

Three time programs are available. Time programs Pro1 and

Pro2 are pre-configured at the factory. Time program Pro3 can

be set according to your individual requirements.

Dis-

play

Description

Pro1 Time program "Daily"

- Repeated: Monday to Sunday

Pro2 Time program "Weekdays"

- Repeated: Monday to Friday

Pro3 Time program "User-defined"

- up to 14 comfort phases, user-configurable

u To use a time program, select the required time program in

the standard menu (see chapter

Standard menu [}21]

u When setting the time programs, ensure the day of the

week and the time are set correctly.
