For distances shorter than 100 y, we recommend using a lower

magnification to avoid the problem of focusing the image and ret-

icle at the same time. To increase the magnification factor, turn

the magnification changer anticlockwise. To decrease the magni-

fication, turn it clockwise.

WINDAGE AND ELEVATION ADJUSTMENT

The windage and elevation adjustment are regulated through the

turrets movement. The side turret is located under the protective

cover. The reticle adjustments are calibrated so that 1 click corre-

sponds to 1/4 MOA (1 click = 1 cm/100 m). The windage adjustment

is located on the right side of the riflescope and the elevation

adjustment on the top. Turn counterclockwise (marked “UP”) to

move the target point upwards. Turn clockwise (marked “DN”) to

move it downwards. The windage adjustment operates alike. The

individual clicks are noticeable and audible.

SETTING THE INDEX RING TO 0 AFTER SUCCESS-

FULLY ZEROING IN

To do this, loosen the two screws on the cover of the adjust-

ment knobs using the 1.5 mm Allen ey supplied. After loosening

the cover, the index ring can

be turned to 0. Then the two

Allen screws can be retight-

ened. Please make absolutely

sure that the index ring is not

readjusted during this proce-

dure. The easiest way to prevent

this is to hold the cover firmly

as well. If necessary, follow the

same procedure for both the

elevation and windage adjust-

ment turret.

1. Unscrew cover

1

(

with 1.5 mm Allen key supplied)

2. Pull off the index ring

2

3. Removal side grub screws

3

4. The integrated spindle can

now be turned below zero

5. Zeroing in

6. Move the spindle

4

with

a screwdriver

7. Setting

8. Retighten grub screws

3

9. Push index ring

2

onto

zero position

10. Firmly screw cover back on

1

FOCUS AND ADJUSTMENT OF ENLARGEMENT

The ocular should be focused so that the reticle appears sharp

and black. It can be adjusted quickly and easily in two steps:

1 Point the scope at a bright surface (e.g. wall) and look through the

scope. If the reticle already appears sharp and black, no further

adjustment is necessary.

2 If this is not the case, turn the dioptre adjustment until the reticle

is sharp and clearly visible.

INTRODUCTION

Excellent optics and intuitive to use in a compact design. Steiner

sets a new milestone in the development of 8x magnification. Nev

-

er before has a riflescope in its price range been both as powerful

and compact as the new Predator 8 models. Due to the short mod

-

ern design, attachments (like clip-on) can be combined without

problems. An easy handling combined with the military Steiner

ruggedness makes the Predator 8 riflescope a reliable partner in

any situation, even under the most difficult conditions.

User manual Predator 8 scopes

Warning

Never look into the sun or any other bright light source

with the scope! This will damage your eyes!

2

4

1

3

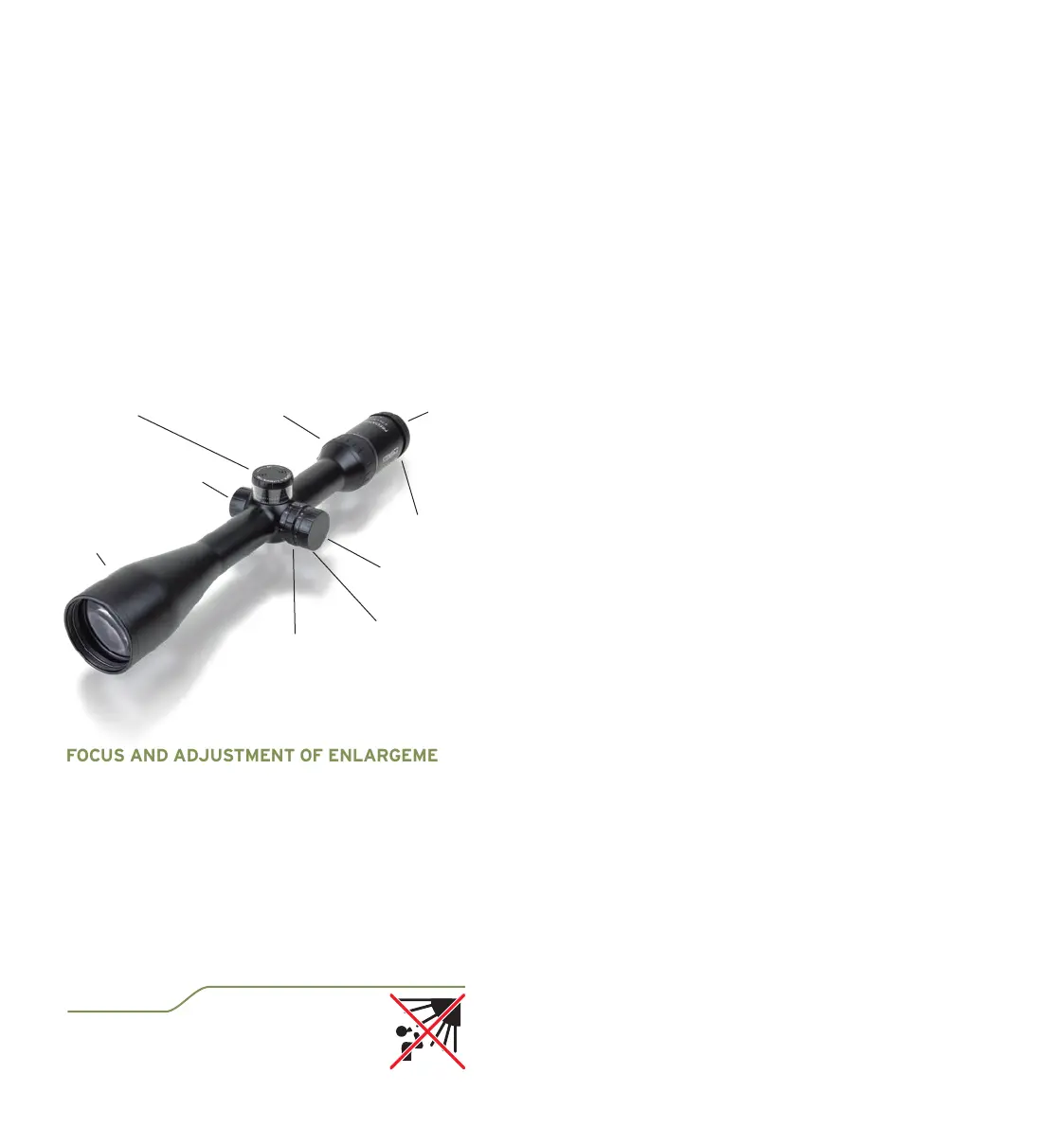

Diopter adjustment

Zoom adjustmentBallistic Turret

with ZeroMode

Windage adjustment of the reticle

(with protective caps)

Parallax adjustment

Illumination knob

Objective

Ocular

Battery compartment

12 13
