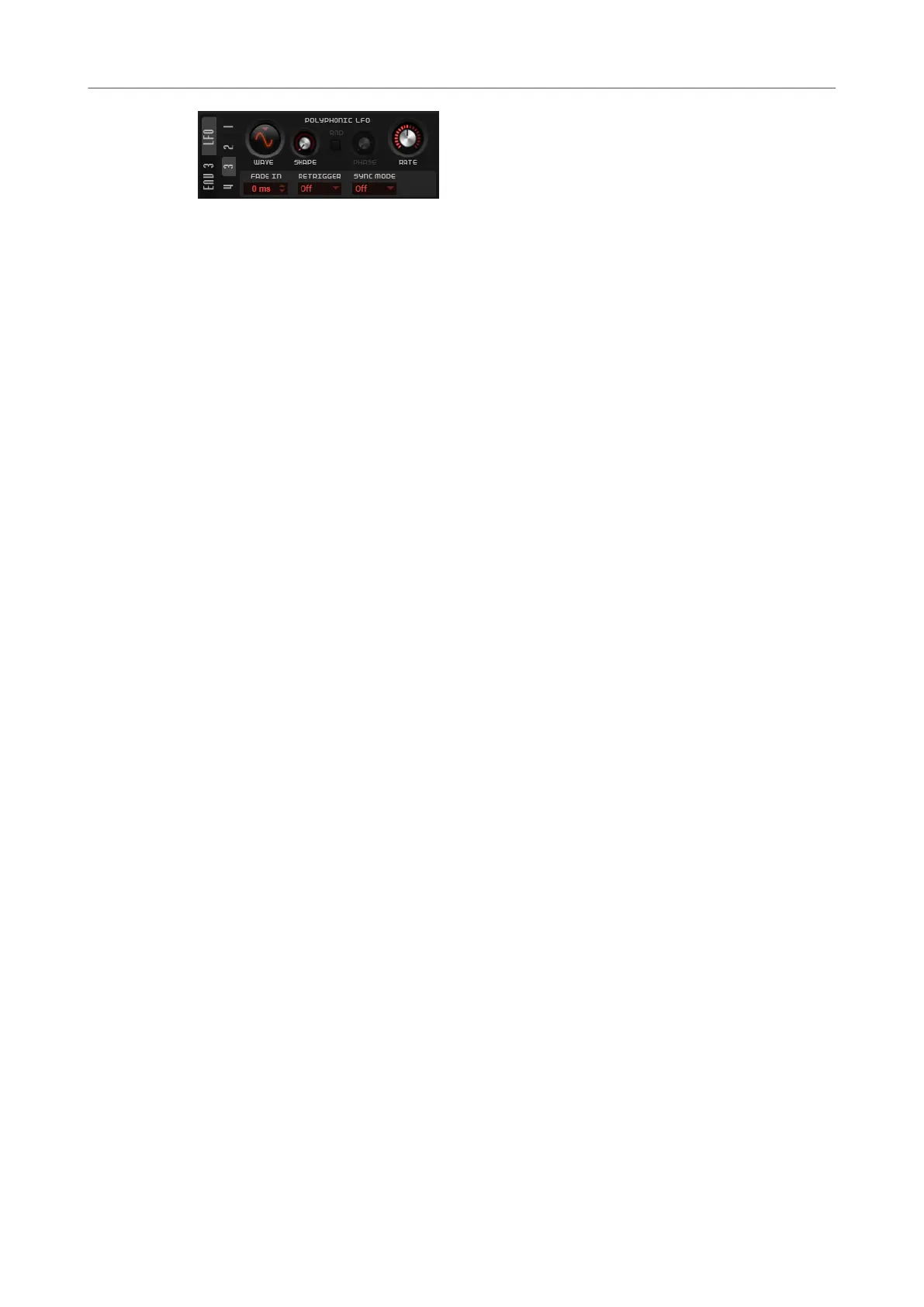

LFO Waveform and Shape
● Sine produces smooth modulation, suitable for vibrato or tremolo. Shape adds
additional harmonics to the waveform.
● Triangle is similar to Sine. Shape continuously changes the triangle waveform to a
trapezoid.
●
Saw produces a ramp cycle. Shape continuously changes the waveform from ramp
down to triangle to ramp up.
●
Square produces stepped modulation, where the modulation switches abruptly
between two values.
Shape continuously changes the ratio between the high and
low state of the waveform. If Shape is set to 50 %, a square wave is produced.
●
S & H 1 produces randomly stepped modulation, where each step is different.
Shape puts ramps between the steps and changes the S & H into a smooth
random signal when fully turned right.
●
S & H 2 is similar to S & H 1. The steps alternate between random high and low
values. Shape puts ramps between the steps and changes the S & H into a smooth
random signal when fully turned right.
Rate
Controls the frequency of the modulation, that is, the speed of the LFO.
● If Sync Mode is activated, the speed is specied in fractions of beats.
● If Sync Mode is deactivated, you can set up the frequency in Hz.
Retrigger
Denes whether the LFO is restarted with the specied start phase when a new note is
triggered. This parameter is available for the sync modes Off and Tempo.
For monophonic LFOs, the parameters work as follows:
● Off – The LFO is not restarted.
● First – The LFO is restarted when a note is triggered and no other note is held.
● Each – The LFO is restarted each time that a note is triggered.
For polyphonic LFOs, the parameters work as follows:
● Off – The LFO is not restarted.
●
On – The LFO is restarted each time that a note is triggered. This way, the
polyphonic LFOs can modulate each voice separately.
Sync Mode
Species how the LFO speed is set.
●
Off – The speed of the LFO is set in Hz.
●
Tempo – The speed of the LFO is set in note values. The resulting rate depends on
the tempo
specied in the host sequencer.
●
Beat – The speed of the LFO is set in note values. The resulting rate depends on
the tempo
specied in the host sequencer. In addition, the current start phase is
calculated based on the current position.
Select this option to synchronize the LFO restart to the transport of the host
application and align it to the beats of the project.
Padshop
Synth Page
42
Padshop 2.2.0
