GX1500SPage 16

8.10 OPTIONAL ENHANCED RAM+ SECOND STATION MIC

AND/OR VH-310 HANDSET INSTALLATION

The GX1500S is capable of using a Enhanced RAM+ mic or VH-310 Handset

to remotely control the Radio, DSC, and Distress functions. In addition the

GX1500S can operate as a full function intercom system.

1. Connect the Routing Cable to the Remote Mic eight pin connector on the

rear panel, then tighten the Cable Nut (See Figure 3).

2. Referring to Figure 4, make a 1.2” (30 mm) hole in the wall, then insert the

Routing Cable into this hole. Connect the Gasket and Mount Base to the

Routing Cable Connector using the Nut.

3. Drill the four Screw holes (approx. 2 mm) on the wall, then install the Mount-

ing Base to the wall using four screws.

4. Put the Rubber Cap on to the Nut. The installation is now complete.

5. Wires for a external speaker are provided on the Routing Cable. Connect

any 8 Ohm external speaker. When connected the RAM+ (or VH-310 Hand-

set) controls the volume level of this speaker.

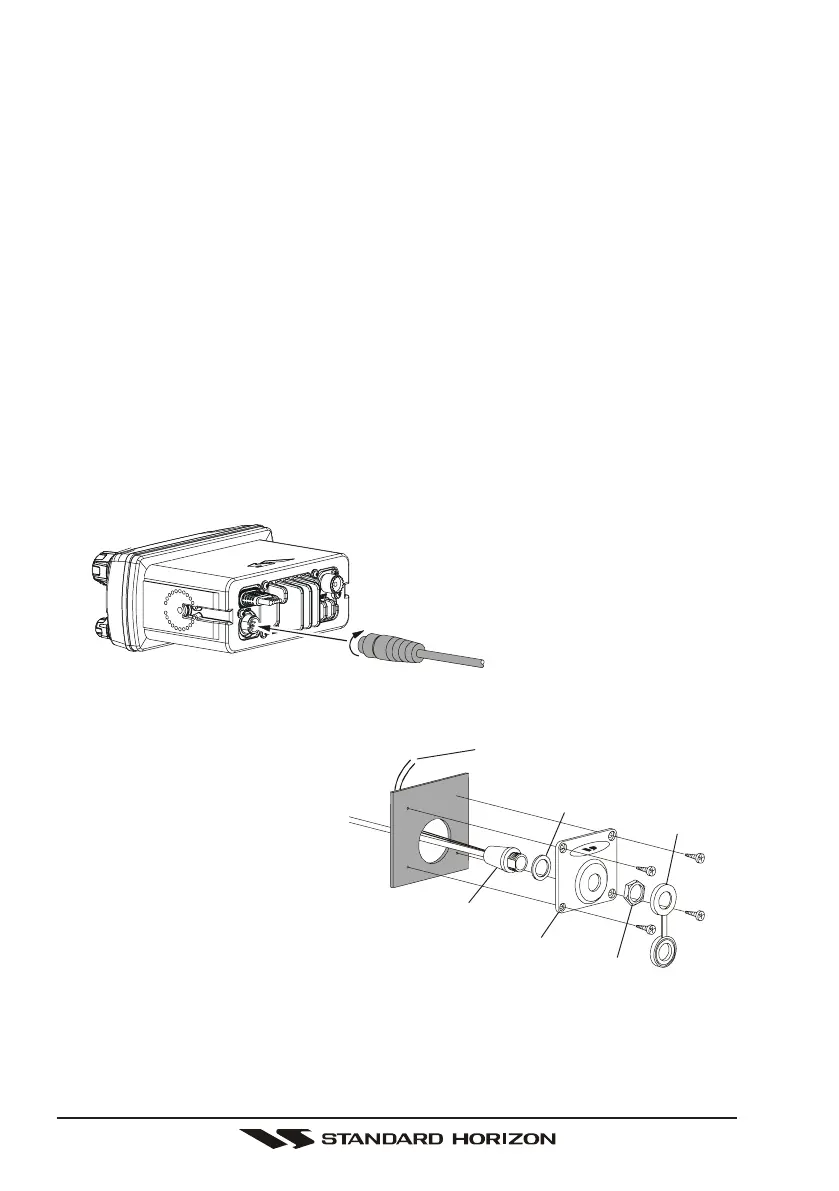

Figure 3

Figure 4

Wall

Gasket

Mounting Bracket

Routing Cable

Cap

Nut

Black and White wires are for con-

nection of a MLS-300 or MLS-310

External Speaker
