Page21GX2200

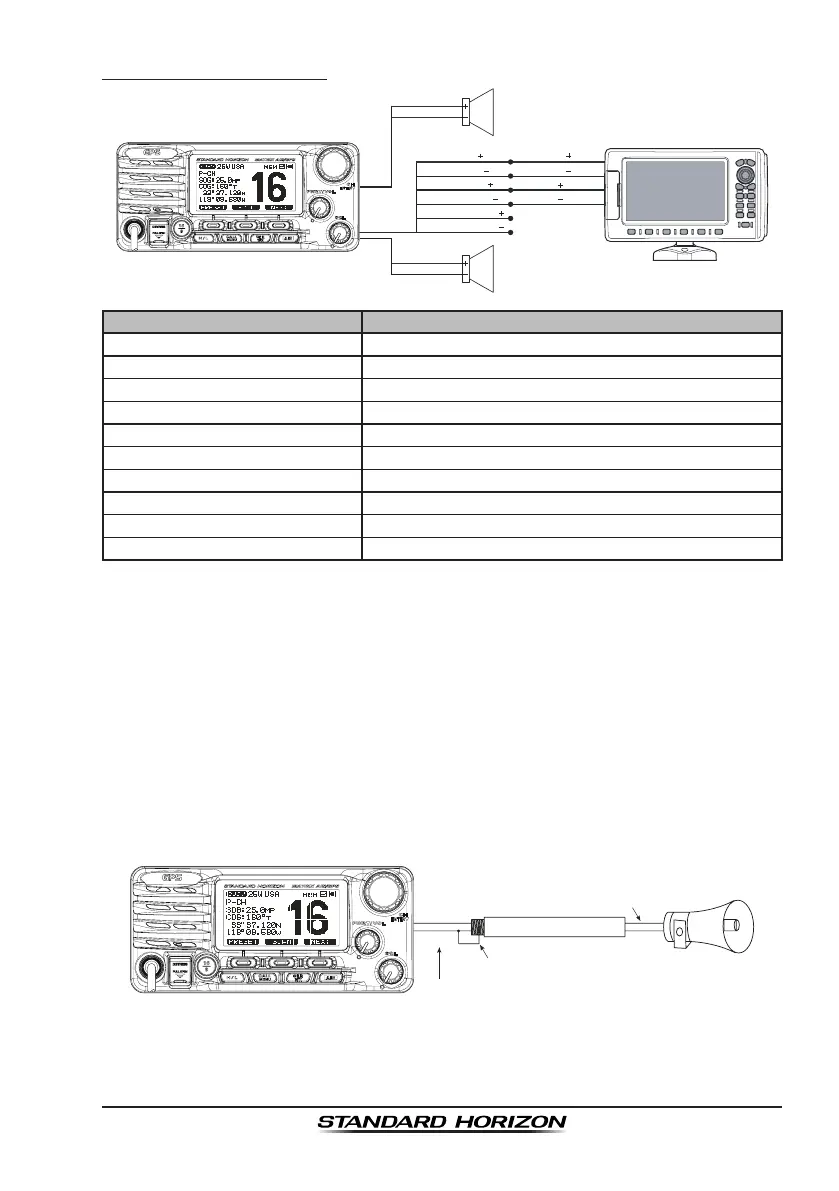

38400 Baud Connections
GPS Receiver
PA Speaker
External Speaker
Shield
Shield
Red
White
Plotter Connection
Radio Wires
Gray: NMEA OUT
( )
Brown: NMEA OUT
( )
Yellow: NMEA-HS OUT
( )
White: NMEA-HS OUT
( )
Blue: NMEA IN
( )
NMEA OUT
( )
NMEA OUT
( )
NMEA IN
( )
No Connection
NMEA IN
( )
No Connection
Green: NMEA IN
( )
Wire Color/Description Connection Examples
WHITE-ExternalSpeaker
(
+
)
Positivewireofexternal4Ohmaudiospeaker
SHIELD-ExternalSpeaker
(–)
Negativewireofexternal4Ohmaudiospeaker
RED-PASpeaker
(
+
)
Positivewireofexternal4OhmPAspeaker(horn)
SHIELD-PASpeaker
(–)
Negativewireofexternal4OhmPAspeaker(horn)
BLUE-NMEAGPSInput(+) NMEA(+)outputofGPS*
1
GREEN-NMEAGPSInput(–) NMEA(–)outputorcommongroundofGPS*
1
GRAY-NMEADSCOutput(+) NMEA(+)inputofGPS*
1
BROWN-NMEADSCOutput(–) NMEA(–)inputofGPS*
1
YELLOW-AISDataOutput(+) Noconnection*
2
WHITE-AISDataOutput(–) Noconnection*
2
*1: TheGPSchartplotterComPortmustbesetupto38400baud(HS)tosendGPScoordi-
natestotheGX2200(BlueandGreenwires)andtoreceiveDSCandAISsentencesfrom
the GX2200(GrayandBrownwires).
*2: TheGX2200alwaysoutputsNMEA0183VDMsentenceat38400.
Note: Some GPS chart plotters have a single wire for NMEAsignal ground. In such a case
connect the NMEA input (–) to the GPS chart plotter’ssingle NMEAsignal ground wire, and
leavetheNMEAoutput(–)open.IncasetheassignmentofpowersupplyandgroundofaGPS
chartplottertobeusedisdifferentfromthatoftheradio,connectthesignalgroundwireofthe
GPSchartplottertothegroundterminal(GND)ontherearpaneloftheradio.
InsomeareaspowerfulAMbroadcaststationsmaybeheardwheninlisten-
back mode. In this case change the speaker wire to 2-conductor shielded
audiocable.Seetheillustrationbelowforconnections.
Red
2 conductor shielded
Bare
Connect the bare wire from the GX2200
to one wire and to the shielded.
Make Red and bare connections short as possible
Shield of cable is not
attached on PA Speaker end
PA Speaker
