Page 12
7. CONTROLS AND INDICATORS
7.1 CONTROLS AND SWITCHES
NOTE
This section denes each control of the transceiver. For detailed operating
instructions, refer to section “8. BASIC OPERATION”. Refer to the below

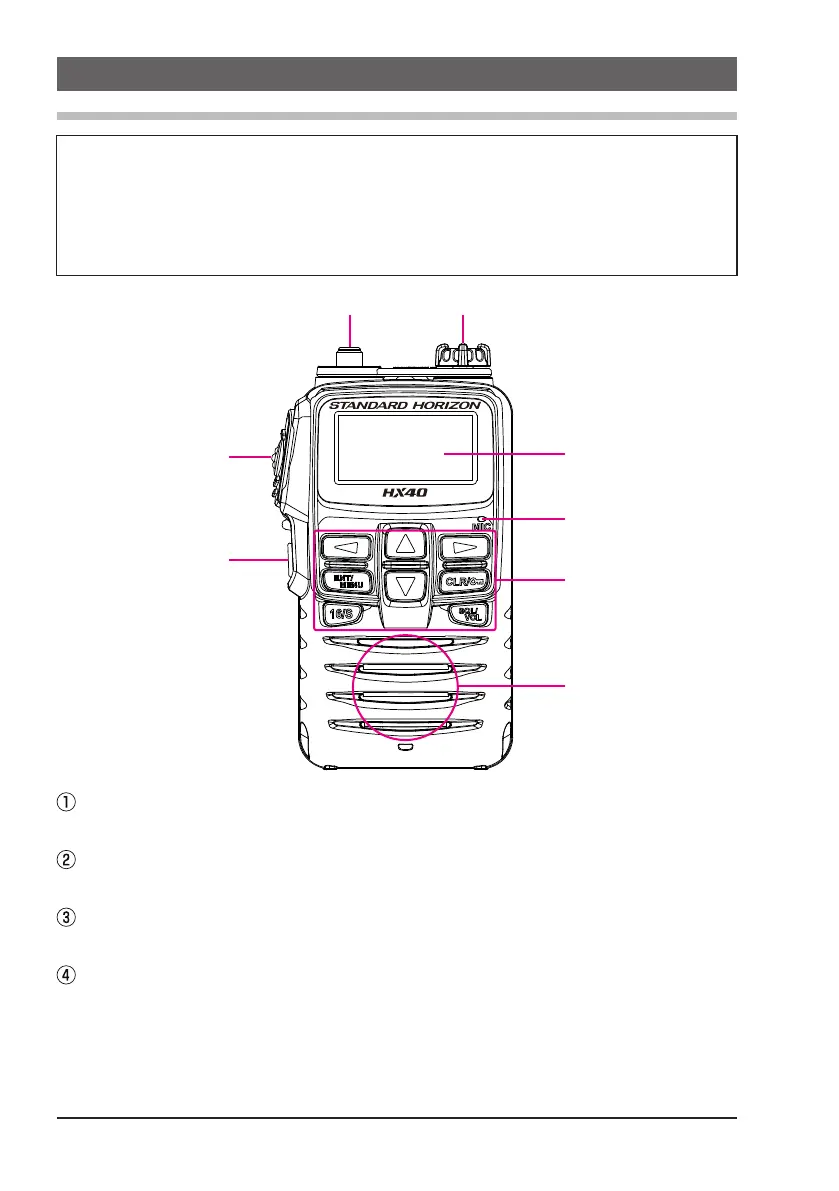

illustration for the locations of the following controls, switches, and con-
nections.
ANT Jack
(
Top Panel
)
The supplied CAT460 exible antenna is attached here.
PTT
(
PUSH-TO-TALK
)
Switch
(
Left Side Panel
)
When pushed activates the transmitter.
POWER Switch
(
Left Side Panel
)
Press and hold this key to turn the radio “ON” or “OFF”.
MIC/SP Jack
(
Top Panel
)
The jack accepts the optional SSM-14A Speaker/Microphone, MH-
73A4B Submersible Speaker/Microphone, SSM-64A VOX Headset, or
SSM-55A Earpiece/Microphone. When this jack is used, the internal
speaker and microphone are disabled.
