76 77
Rev. 04.04.2022 Rev. 04.04.2022

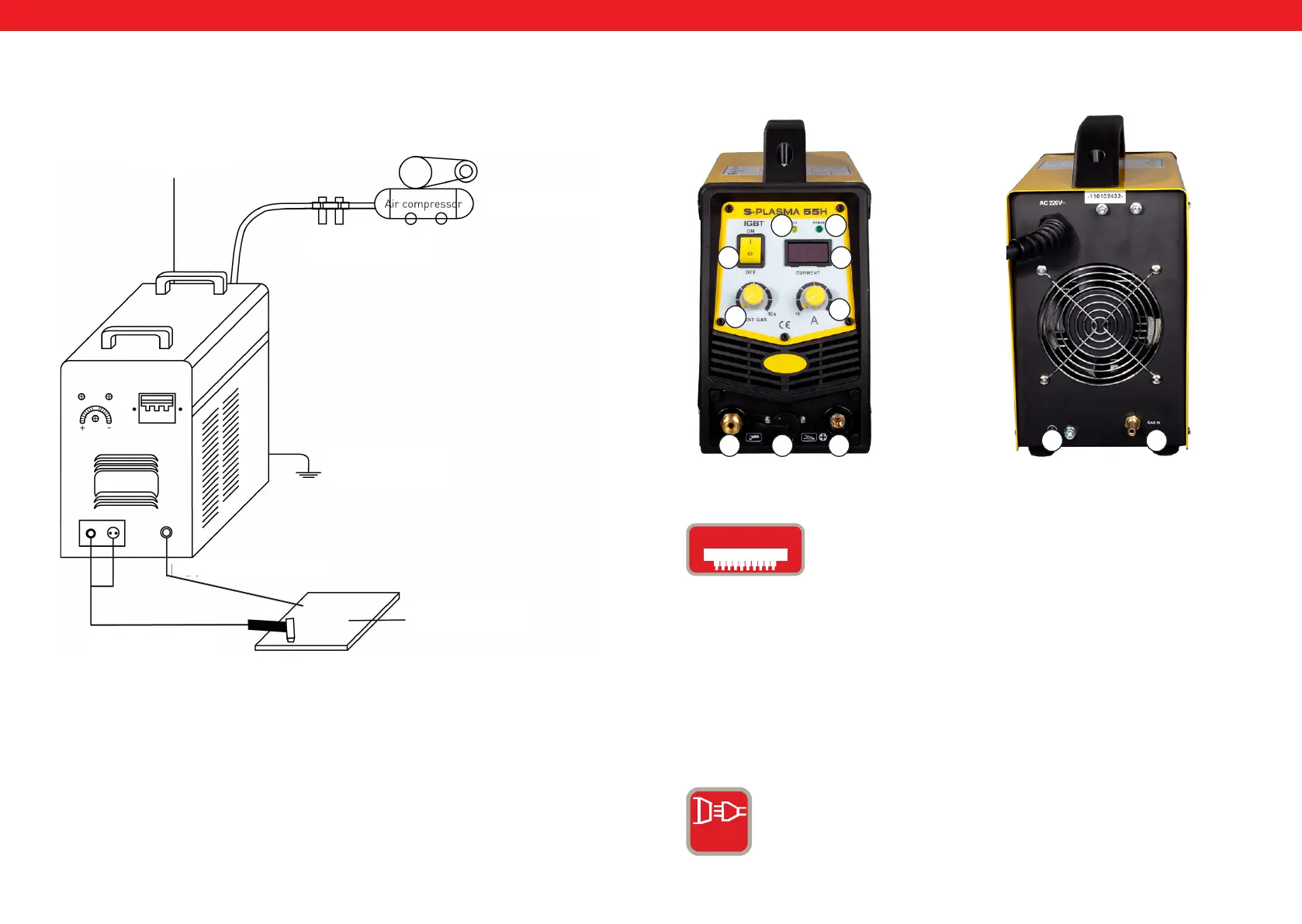

General diagram of S-Plasma 55H connection
Power supply cord
Pressure regulator
Air compressor
Cover earthing
Mass cable
Workpiece
Plasma cable
with torch
DEEN
S-PLASMA 55 H
NORMAL CURRENT: The device uses a 1-phase connection
(230V +/- 10%).
1 PH
IGBT:
A bipolar transistor with insulated gate electrode (insulated
gate bipolar transistor, IGBT) is a semiconductor that
is increasingly used in power electronics, as the bipolar
transistors offer certain advantages (e.g. good forwarding
characteristics, high blocking voltage, robustness in welding
equipment) and benets characteristic of a eld effect
transistor (control with virtually no power consumption).
Another advantage is a certain degree of resistance to short
circuits, as IGBT limits the load current. IGBTs are a further
development step of the vertical power MOSFETs.
IGbT
4
1
11
567
32
0
9 8
FRONT VIEW
REAR VIEW
DEEN
