No. Description
1. Main switch (at the back of the device)
2. Overloading / failure
3. Power and working state indicator (MMA,TIG,MIG)
4. Welding voltage (V)
5. Welding current (A)
6. The working state of welding machine selection (MMA,TIG,MIG)
7. Welding torch (push wire and pull wire) selection
8. Welding voltage adjustment: When welding, it is used for the regulating the
welding voltage. It is valid in the MIG welding state, but it's invalid in the TIG
and MMA welding state.
9. Welding current adjustment: TIG / MMA. Feed wire speed: MIG welding state.
10. Arc welding feature adjustment – inductance adjustment – only MIG welding
state
11. Welding torch EURO type socket.
12. Integrated gas-electric output: connect with the TIG welding torch (polarity -)
13. Quick connector socket: welding machine output (-)
14. Four core socket: It is used for controlling the output of welding machine –
TIG or spool gun
15. Quick connector socket: welding machine output (+)
EN

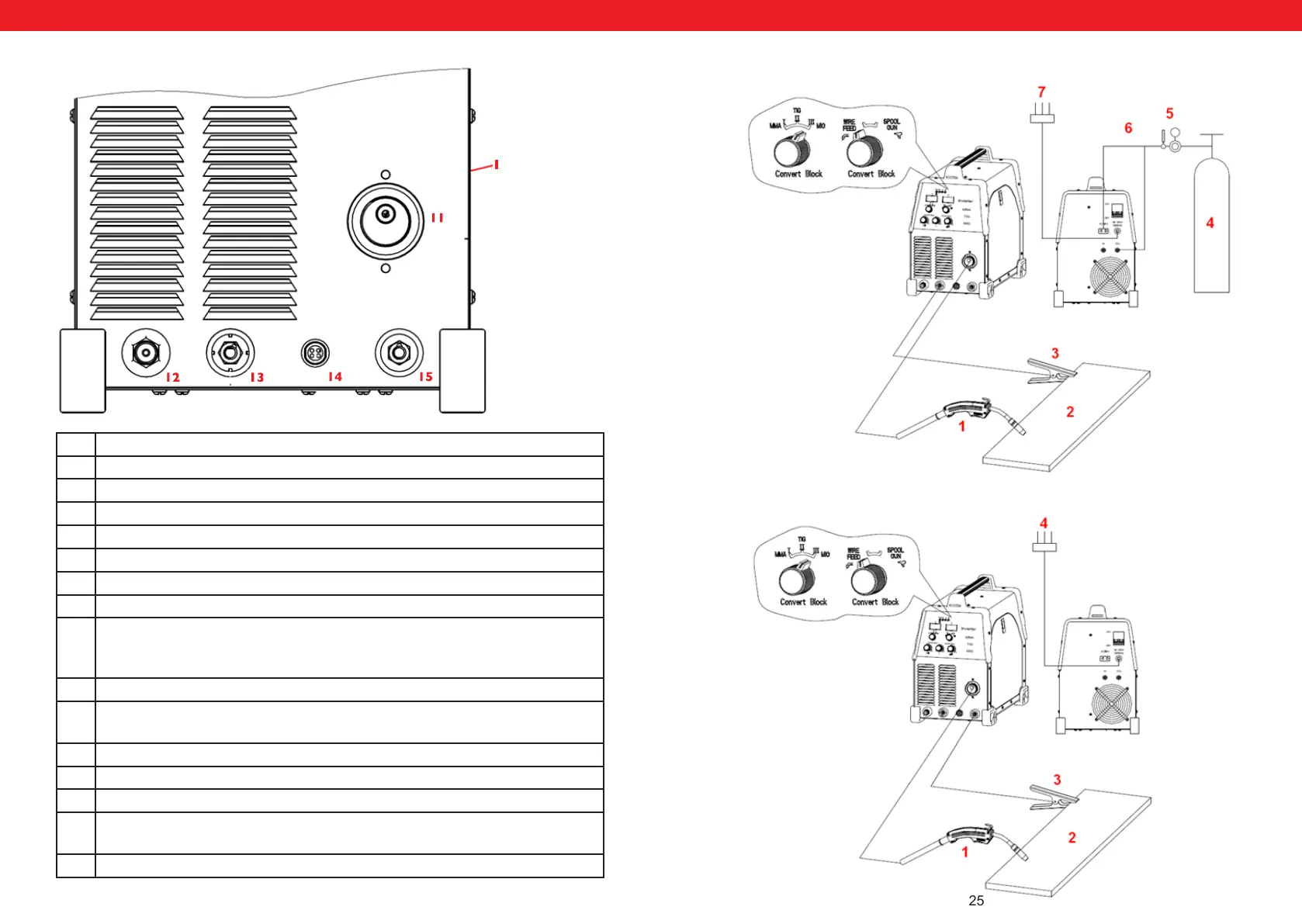

CONNECTION DIAGRAM
MIG/MAG:
1 – MIG torch
2 – Workpiece
3 – Earth clamp
4 – Gas cylinder
5 – CO2 meter
6 – Gas meter AC 36V
7 – Power supply
1 – MIG torch
2 – Workpiece
3 – Earth clamp
4 – Power supply
FLUX (FCAW (Flux-Cored Arc Welding)):
