9 Plug and connection assignments
This chapter will help you select the right cables and plugs to connect your valuable
equipment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if
a plug ts into a socket, the result of an incorrect connection may be a destroyed
DMX controller, a short circuit or ‘just’ a not working light show!

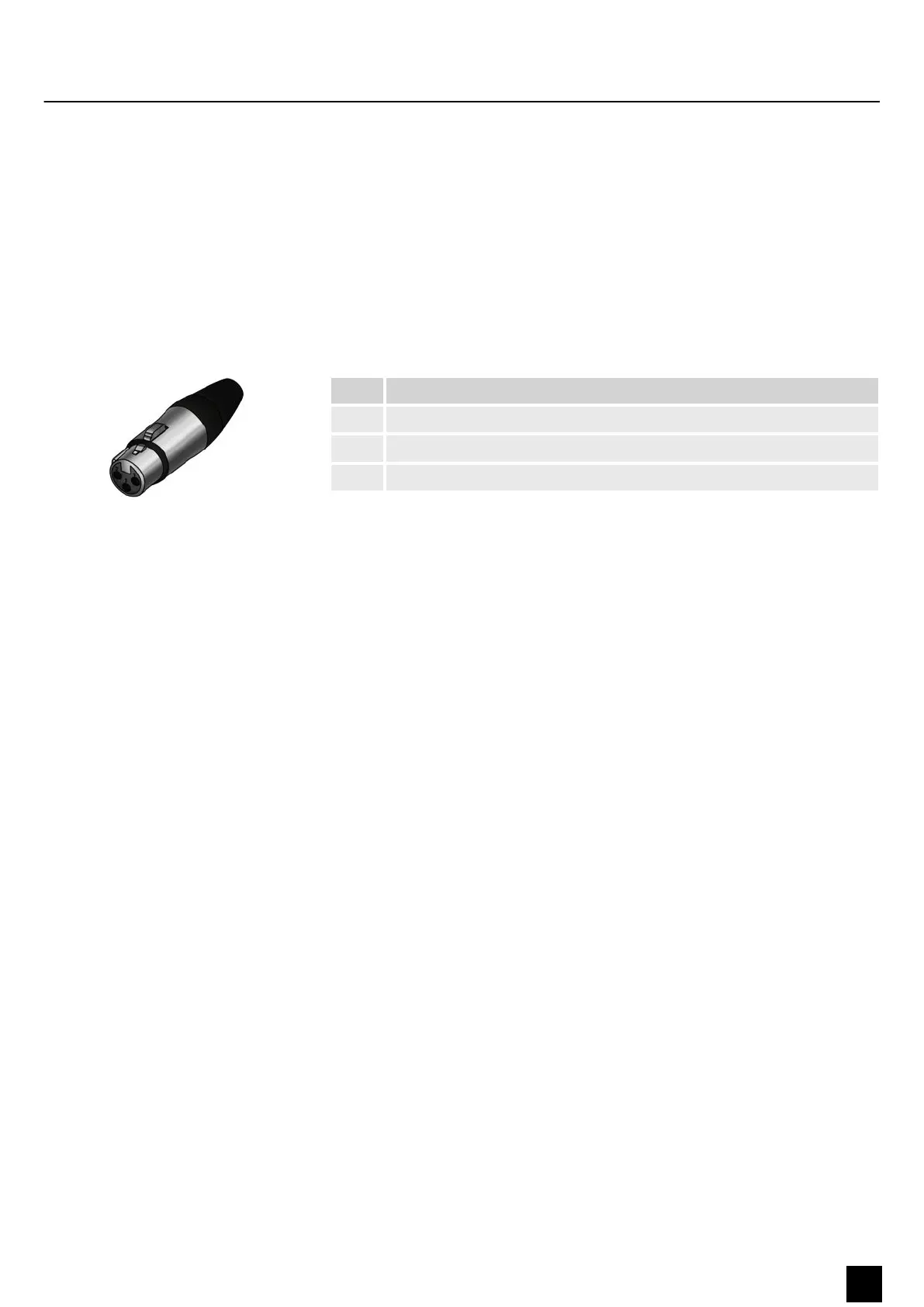

The unit oers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX
input. Please refer to the drawing and table below for the pin assignment of a suit‐
able XLR plug.
Pin Conguration
1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)
Introduction
DMX connections
Plug and connection assignments
All FX Bar
27
LED Eect
