P8 – Manual
5

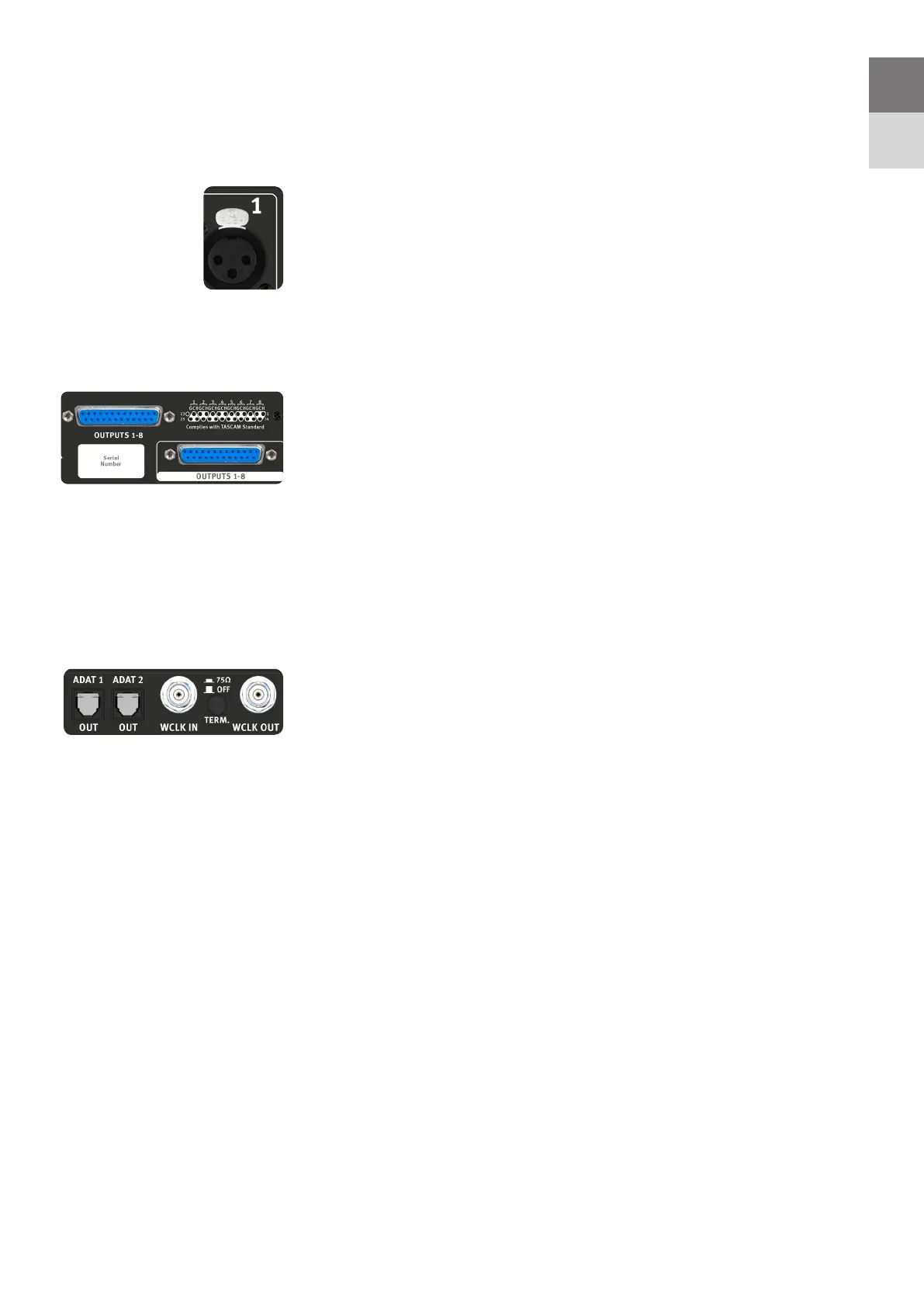

Microphone inputs
The eight microphone inputs of the P8 are equipped with
Neutrik XLR sockets with goldplated contacts. The signal trans-
mission is electronically balanced, at a nominal level of 0 dBu.
Line outputs (analog)
In the version without optional AD converter, P8 has two DB25
sockets at the output stage. Both of these provide the analog
line level output signals from microphone preamps 1 to 8. The
analog output signals can be connected to a multi-channel AD
converter, for example, with the DB25 input common to this
type of device, and in parallel to a second recording device.
An additional external signal splitter for back-up systems
during a recording session is therefore no longer necessary.
Optional AD converter installed
P8 can also be confgured with an optional eight-channel AD
converter with ADAT outputs (TOSLINK). The digital outputs
replace the second analog eight-channel DB25 output of the
P8. This allows P8 to be connected directly to the digital ADAT
inputs of an audio interface.
The converter chip in the optional digital-to-analog converter
is the highly acclaimed AKM AK5538 ADC chip, which thanks to
its architecture reproduces the nest sound details.
