13

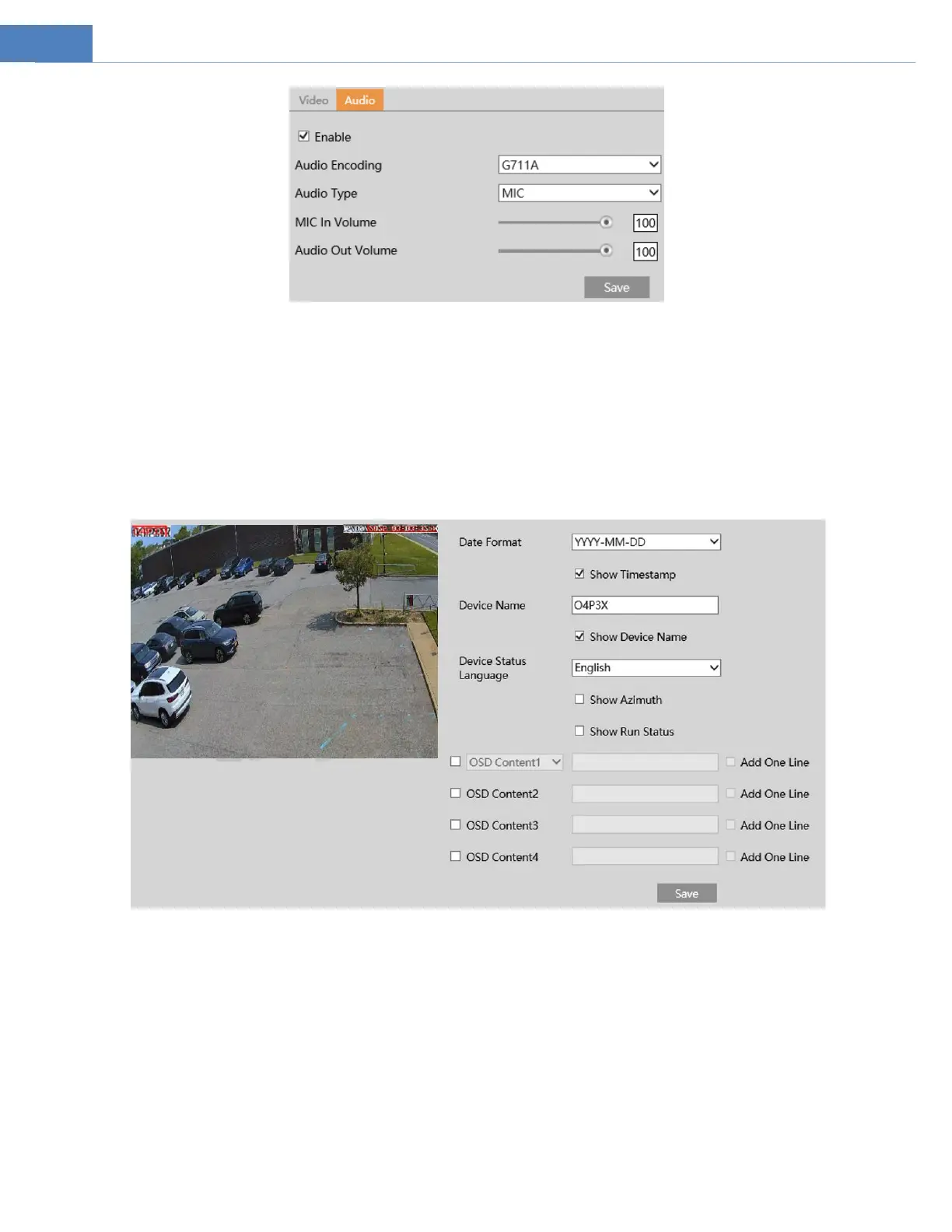

Audio Encoding: G711A and G711U are selectable.

Audio Type: LIN or MIC is optional.(If the internal MIC is used, choose “MIC”. If you want to use an external line-level audio input

device, choose “LIN”.)

Note: only some models support audio input/output. If your PTZ camera doesn’t support this function, please skip the

above-mentioned audio setup instruction.

4.2.3 OSD Configuration

Go to VideoOSD as shown below.

Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the

content, drag them to change their position. Then click the “Save” button to save the settings.

Show Azimuth: Show the PTZ moving direction on the live view interface.

Show Run Status: Show the PTZ control status on the live view interface. For example, if the preset 2 is called, “PRE:002” will be

shown on the live view interface.

Picture Overlap Settings:

Check “OSD Content1”, choose “Picture Overlay” and click “Browse” to select the overlap picture. Then click “Upload” to upload the

overlap picture. The pixel of the image shall not exceed 200*200, or it cannot be uploaded.

4.2.4 Video Mask

Go to ImagePrivacy Mask as shown below. A maximum of 4 zones can be set up.
