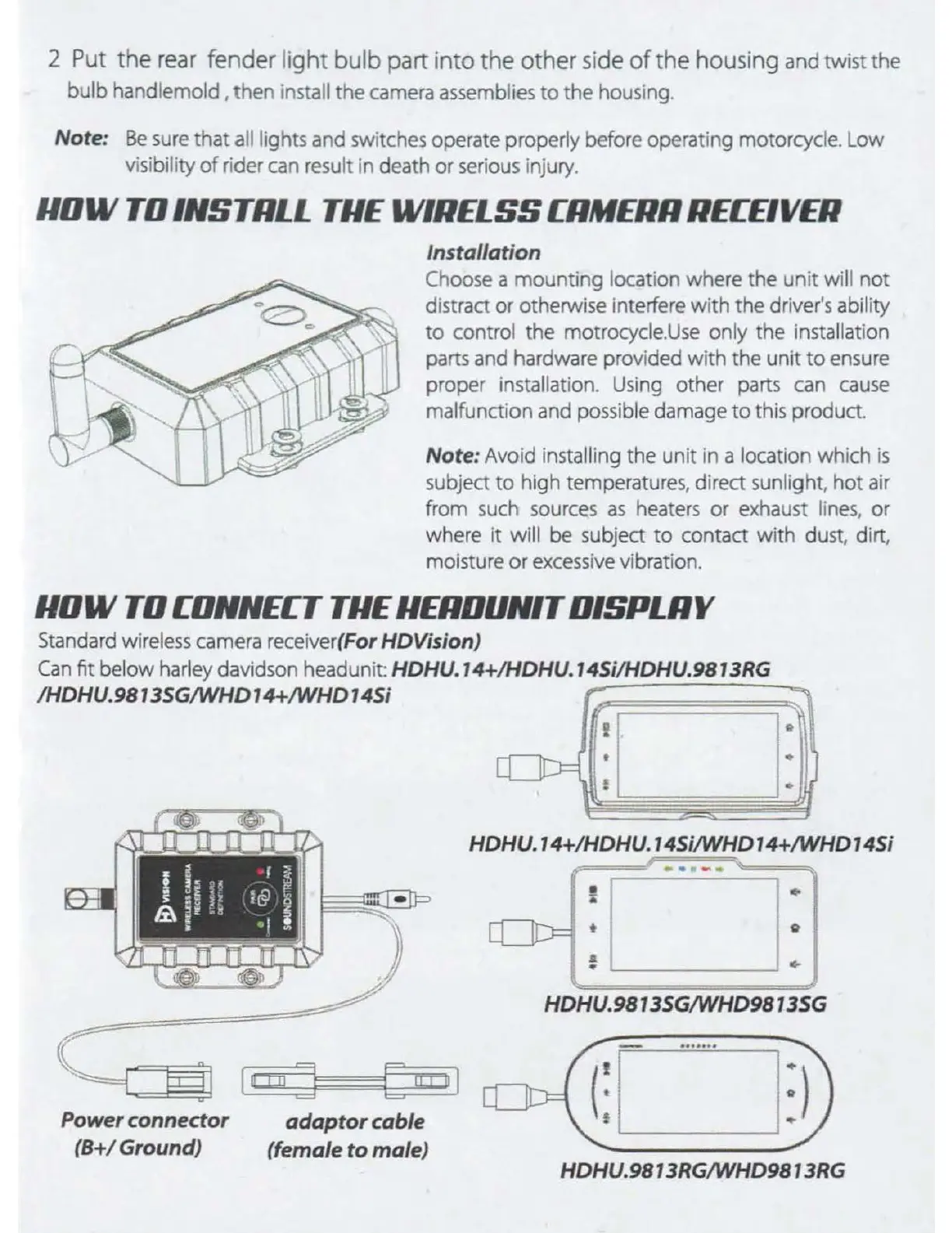

2 Put the
rear
fender light bulb part into the other side
of
the housing and twist
the
bulb handlemold ,
then
install the camera assemblies
to
the
housing.
Note:
Be
sure
that
all lights and switches operate properly before operating motorcycle. Low
visibility
of
rider can result in death or serious injury.
IIDW
TD
INSTRLL
TIIE
WIRELSS
CRMERR RECEIVER
Installation
Choose a
mounting
location where the
unit
will
not
distract or otherwise interfere
with
the driver's ability
to
control
the
motrocycle.Use only the installation
parts and hardware provided
with
the unit
to
ensure
proper installation. Using other parts can
cause
malfunction and possible damage
to
this product.
Note: Avoid installing the unit in a location which
is
subject
to
high temperatures, direct sunlight,
hot
air
from such sources
as
heaters or exhaust lines,
or
where
it
will be subject
to
contact with dust, dirt,
moisture
or
excessive vibration.
IIDW
TD
CONNECT
TIIE
IIERDUNIT
DISPLRY
Standard wireless camera receiver
(For
HDVision)
Can fit below
ha
rl
ey davidson headunit: HDHU.14+/HDHU.14Si/HDHU.9813RG
/HDHU.9813SG/WHD
14+/WHD
14Si
Power connector
{B+I Ground)
adaptor
cable
(female
to male)
0
•
..
HDHU
.
14+/HDHU
.14Si/WHD
14+/WHD
14Si
!
..
0
HDHU.9813SG/WHD9813SG
......
.,
HDHU.9813RGIWHD9B 13RG
