Overview
This product is a converter used to extend the distance between the Display Controller and Display
Cabinet with the optical cable.
It can be extended up to 300 m by using the SFP+ transceiver module (not supplied) and optical fiber
c
able (not supplied).
When connecting the Display Controller to a network, use a network that is built to control and regulate
a
ccess from the Internet, such as a LAN. Direct connection from the Internet increases security risk.

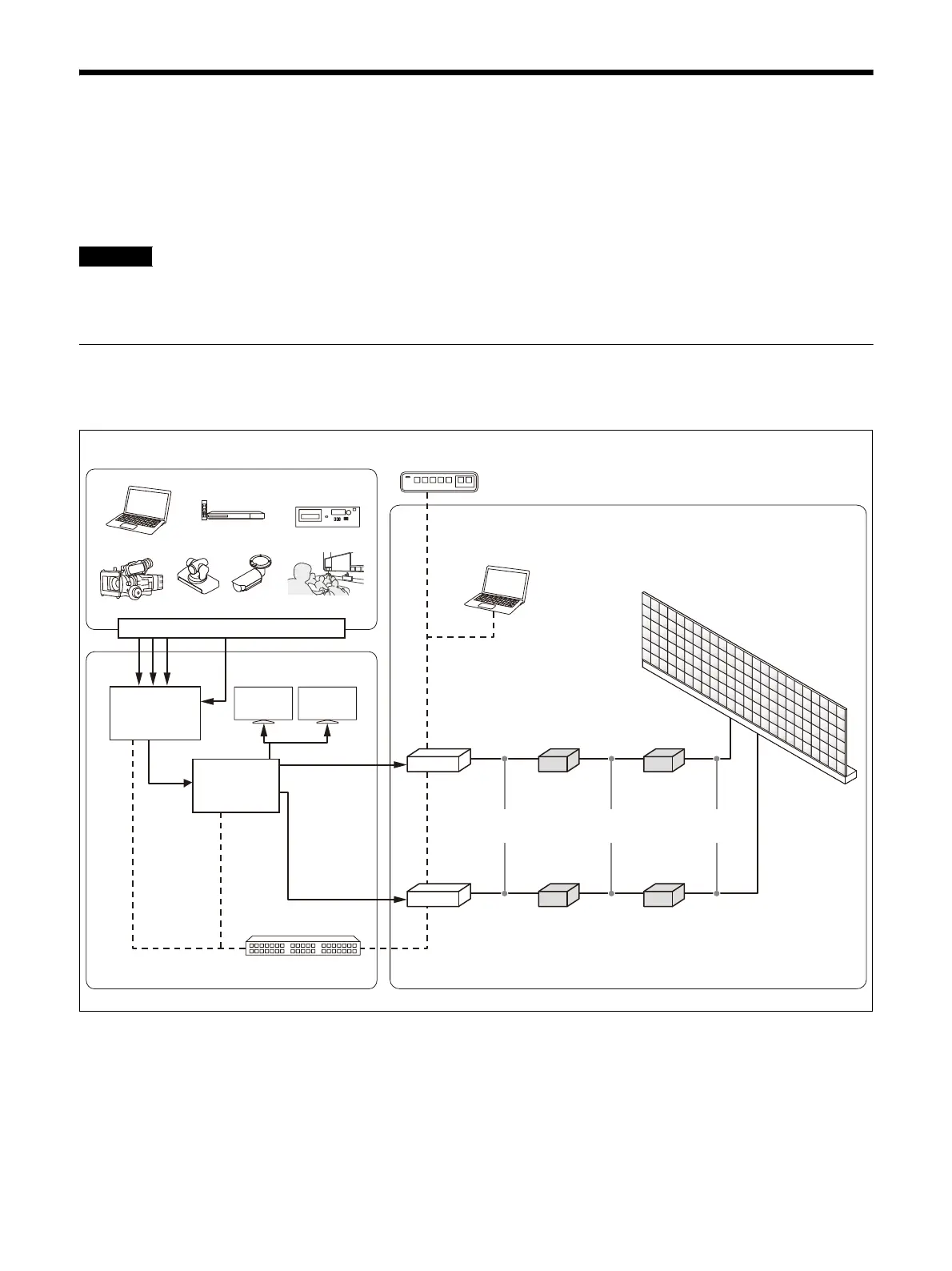

System Configuration Diagram
Configuration example of the entire system
Caution
Video content transmitters
Array
(Display Cabinets)
Matrix
switcher
Production monitors
Video
processor
Control (LAN)
Hub
Display
Controller
VPN router
•DisplayPort
connector
•HDMI
connector
Controller PC
(Display Control Software installed)
Category 7
cable
Control (LAN)
Display
Controller
Category 7
cable
Optical fiber
cable
Optical
Transmitter
Optical
Transmitter
Optical
Receiver
Optical
Receiver
