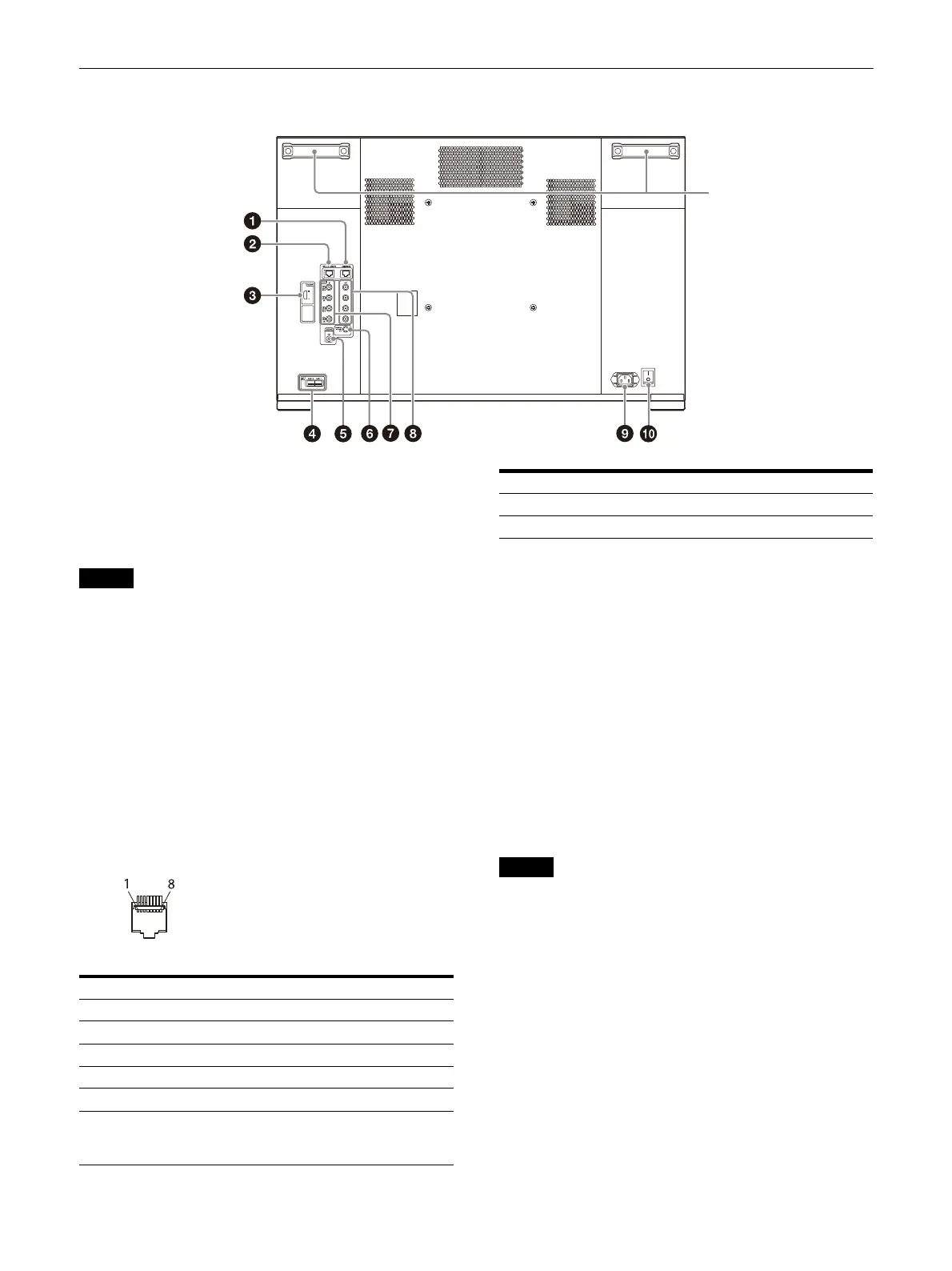

Rear Panel (BVM-HX3110)

 LAN connector

Connect to the controller or an external device by

usin

g a 100BASE-TX LAN cable (shielded type,

optional).

Note

The connection speed may be affected by the

network system. This unit does not guarantee

the communication speed or quality of 100BASE-

TX.

 PARALLEL REMOTE connector (RJ-45,

8-pin)

Forms a parallel control switch and controls this

un

it

externally. Certain functions can be assigned

to each pin. For details, see the “Parallel Remote”

(page 79).

Pin assignment

The factory default settings are as follows.

Wiring required to use the Remote Control

Connect the function you want to use with a

Rem

ote Control to the Ground (Pin 5).

 HDMI IN (HDMI input) connector

Input connector for HDMI signals.

HDMI (High-Definition Multimedia Interface) is

an

in

terface that supports both video and audio

on a single digital connection, allowing you to

enjoy high quality digital picture and sound. The

HDMI specification supports HDCP (High-

bandwidth Digital Content Protection), a copy

protection technology that incorporates coding

technology for digital video signals.

Note

To input the HDMI signal equivalent to 4K, use an

HDMI cable bearing the Premium High Speed

logo within a length of 3 meters (Sony product

recommended).

To input other signals, we also recommend using

a Premium High Speed HDMI cable within a

length of 3 meters.

 LAN 1/LAN 2 connectors (SFP28)

Input the IP stream.

For details, refer to “IP stream Connections (BVM-

HX3110/HX1710N)” (page 25).

Handles

Pin number Functions

1 “Ch.1” is specified.

2 “Ch.2” is specified.

3 “Ch.3” is specified.

4 “Mono” is specified.

5 GND

6 All the markers set under “Marker

Pr

ese

t” in the “User Preset Setting”

menu are all turned on at once.

7 Tally Green

8 Tally Red

Pin number Functions
