Multi Player System Connection and Setup

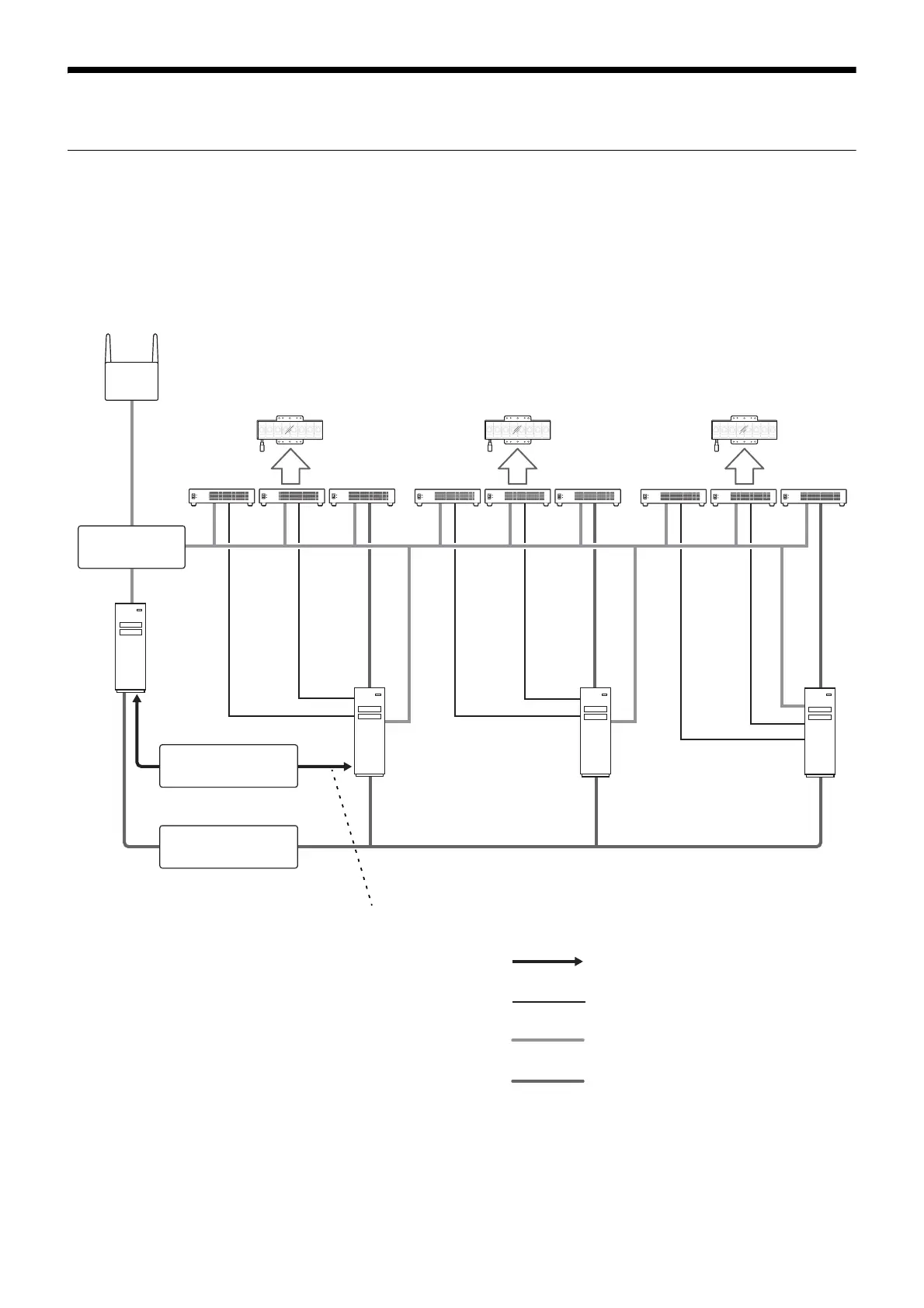

Typical System Connection
In a multi player system, up to 576 channels are supported
using one Main Player PC and up to three Sub Player PCs.
The connections of each Sub Player PC, control units, and
speaker units are the same as for a single player system, but
an SDI splitter is required for distributing the audio signals
from the Main Player PC to each Sub Player PC.
Wi-Fi access point
RYZ-AS108
Multi-Channel Active Speakers
Speaker units 1 to 24 Speaker units 25 to 48 Speaker units 49 to 72
RYZ-CU164
Control Unit
Main Player
PC
Sub Player PC1
MADI input (BNC) MADI input
(BNC)
MADI input
(BNC)
Sub Player PC3
Sub Player PC2
Word clock
input
SDI input
BNC cable
MADI
output
Word clock
generator
SDI splitter
To word clock input of each Player PC and WORD SYNC IN of each control unit
For details, see “About sync signal connection” (page 15).
SDI
output
Ethernet hub
BNC cable (word clock input)
Network cable (general-purpose cable)
Optical cable (64-channel MADI output)
BNC cable (64-channel MADI output)
* Speakers are numbered from left to right starting from 1 with
speakers viewed from the front (surface that emits sound).
